PoolControls SWC25pH Salt Water Chlorinator 25g/hr for Small to Medium Pools with Algorithmic pH Control

Water balancing and salt chlorination are managed simultaneously by the SWC25pH pool controller. It handles sanitation and chemical regulation for pool water volumes up to 75000 liters. The system is suited for standard domestic installations. This automatic unit incorporates both chemical dosing and chlorine gas generation. It operates to streamline daily pool maintenance tasks for residential pool owners.

Diluted acid dosing is performed by an integrated peristaltic pump via chemical-resistant tubing. The self-cleaning titanium cell uses reverse polarity cycles and features ruthenium-plated components. The complete controller unit weighs 4 kg. The pump mechanism delivers precise volumes of liquid pool acid directly into the return line to maintain a steady water balance.

A 240 V power input drives the system to produce 25 grams of chlorine per hour. A proprietary dosing algorithm determines exact acid requirements, removing the need for physical probes and manual calibration. Operation requires salinity levels from 3000 to 5000 ppm. By calculating chemical changes over time, it distributes acid in measured increments.

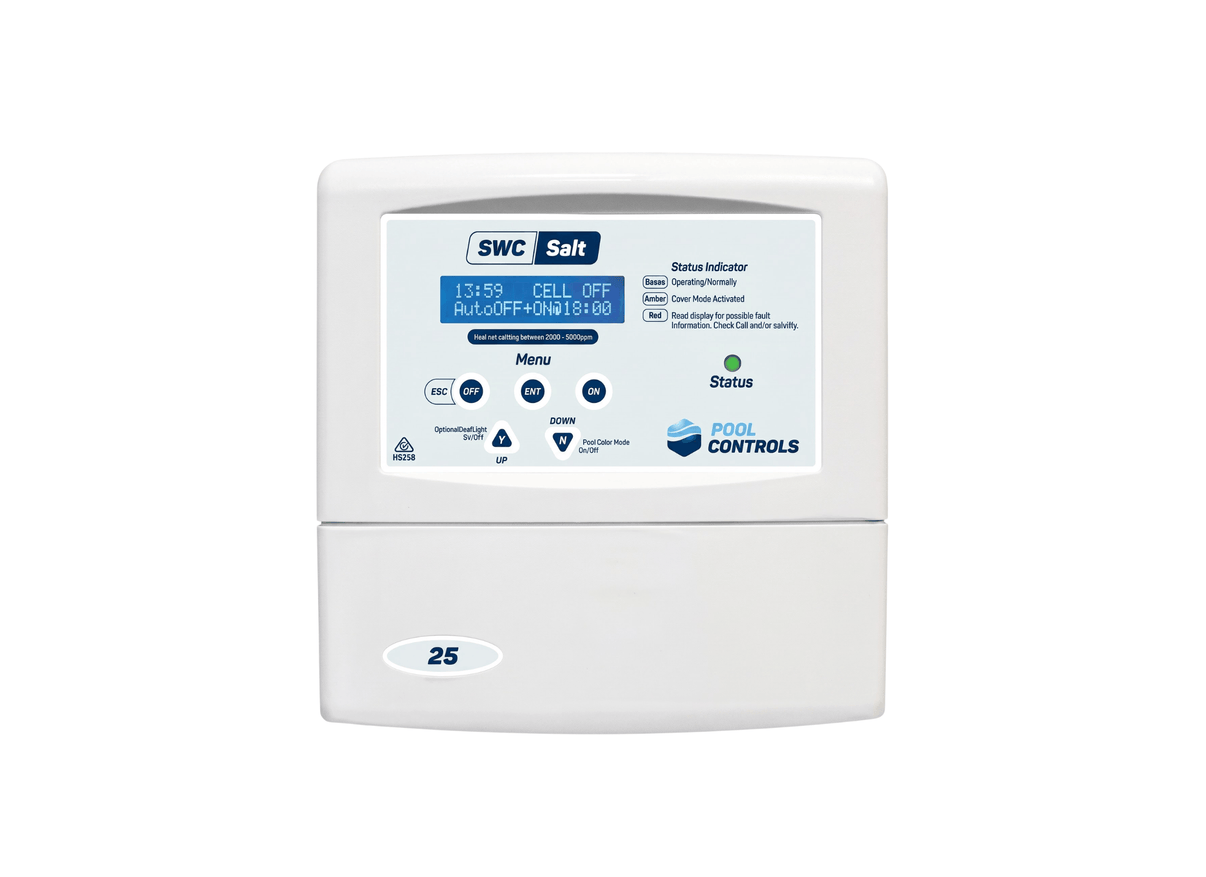

A digital screen allows operators to monitor sanitation levels and edit system timers. The enclosure includes three timed power outlets to run external devices such as cleaner pumps. The casing is constructed for outdoor mounting near filtration systems. This design coordinates the main filter pump run times with chlorine production.

Features

• Provides automated pH balancing via built-in peristaltic acid pump
• Chlorine generation rate of 25 grams per hour
• Probe-free operation removes the need for physical sensor maintenance
• Controls auxiliary filtration equipment with three timed power outlets
• Reverse polarity cell automatically removes scale from titanium plates
• Dispenses diluted pool acid at a standard two-to-one ratio

Warranty: 3 Years manufacturer coverage applies.
