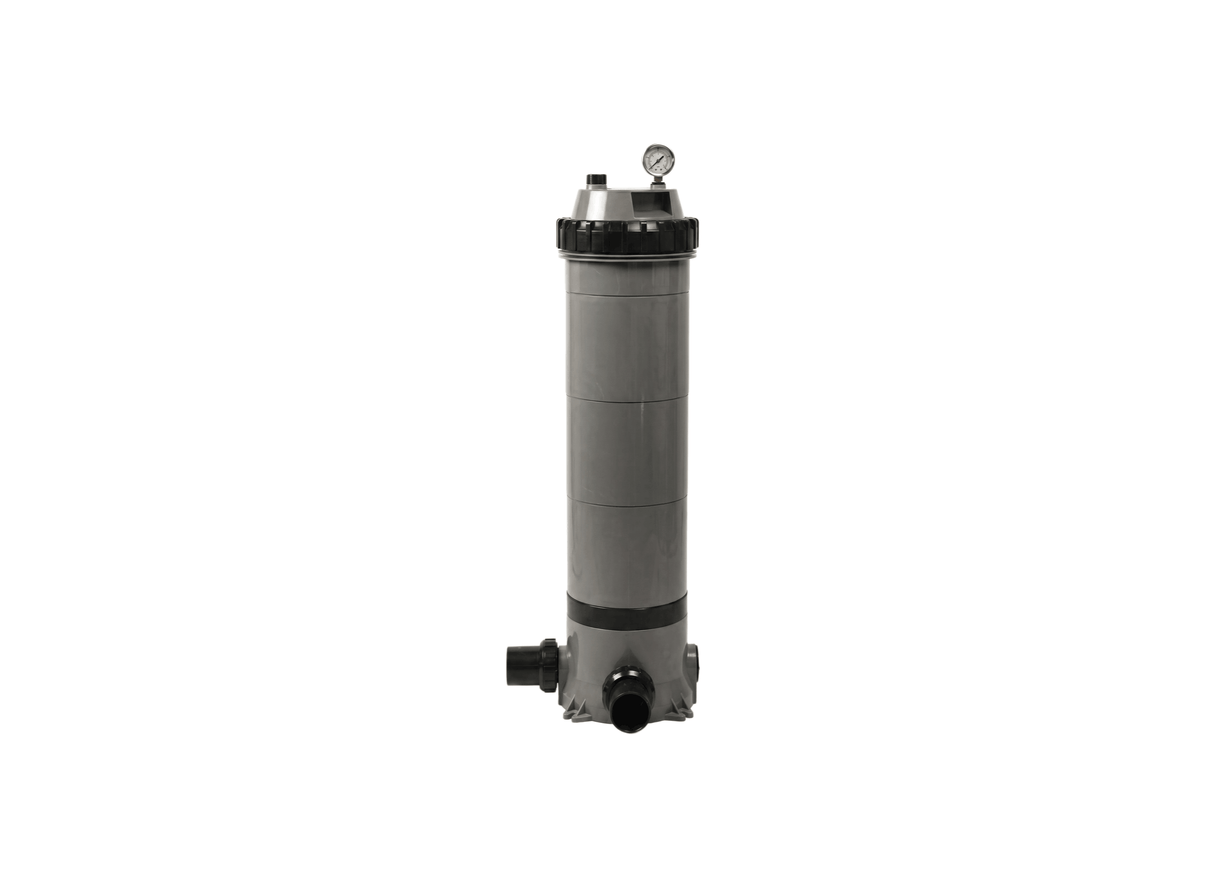

PoolControls Zenclean Cartridge Filter 100B 15 Micron Pool & Spa Filter with UV Resistant Tank

Residential and semi-commercial pool filtration is supported by the Zenclean Cartridge Filter 100B, using a UV-resistant tank with a heavy-duty ring-lock lid for access to the cartridge element. The B Series configuration includes a universal standard union connection, pressure gauge and cartridge filter element.

Filtration is provided by a cartridge element with a 9.40 m² filter area and 15 micron rating. The 100B has a maximum flow rate of 382 L/Min (100 GPM, 22.7 m³/hr), with a flow velocity specification of 0.375 GPM/ft² (0.917 m³/hr/m²). Its valve connection is 2.0 inch / 63 mm.

The filter tank is specified with a maximum operating pressure of 250 kPa / 36 psi (2.5 bar) and a maximum temperature of 40°C (104°F). The cartridge element measures Ø183 mm in diameter and 724.5 mm in length, with 150 folds.

A screw-type air bleed valve releases trapped air from inside the filter tank, while the oil-filled pressure gauge provides an overview of operating pressure. The heavy-duty ring-lock lid provides access for cleaning and cartridge element replacement.

Features

• UV-resistant tank provides the main housing for the cartridge filter.
• Heavy-duty ring-lock lid provides access to the cartridge element.
• Universal standard union connection is included in the B Series configuration.
• Oil-filled pressure gauge provides a view of operating pressure.
• Screw-type air bleed valve allows trapped air to be released from the tank.
• 15 micron cartridge element provides the specified filtration rating.
• 9.40 m² filter area is provided by the 100B cartridge element.
• Maximum flow rate is listed at 382 L/Min (100 GPM).
• 2.0 inch / 63 mm valve connection provides the specified connection size.
• Maximum operating pressure is rated at 250 kPa / 36 psi (2.5 bar).
• Maximum temperature is specified at 40°C (104°F).
