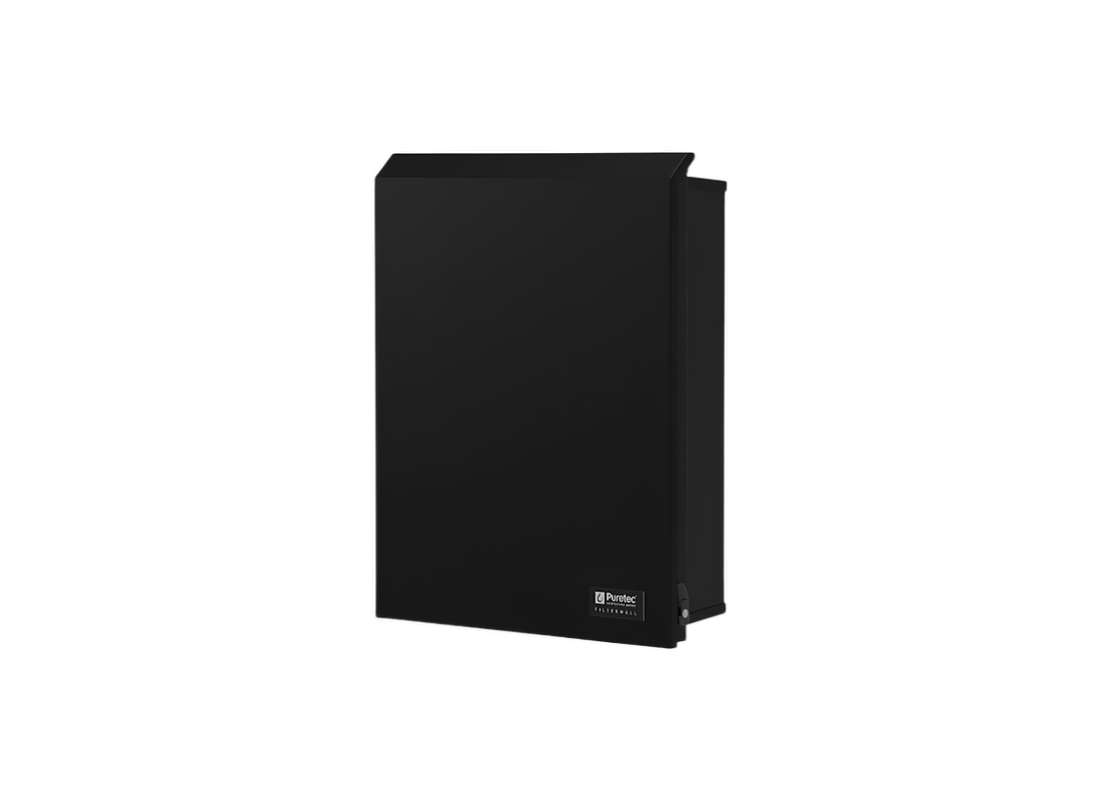

Puretec FILTERWALL-IM2-NS Night Sky Aluminium 20 Inch Semi-Recessed In-Wall Filter with plumbed bypass

Mains water sediment and chlorine reduction for the entire facility are achieved by the FilterWall IM2-NS through a semi-recessed in-wall housing. Specified for tiered reduction, this model features a Night Sky finished aluminium cover that integrates flush with external property walls. It is suitable for standard building constructions where a low-profile architectural footprint is required to provide high-flow treated water.

Built from aluminium, the cover measures 680 mm in width and 836 mm in height to house the internal 20-inch assembly. Internal filtration utilizes dual high-flow cartridges with a 5-micron nominal rating for tiered reduction of chemical and sediment contaminants. The unit is rated for operation on cold water lines up to 52°C and requires a wall installation depth of 150 mm for the semi-recessed configuration.

Internal hydraulic paths support a nominal flow rate of 55 L/Min through 20 mm BSP plumbing connections. The assembly handles operational pressures ranging from 200 to 875 kPa, incorporating lead-free brass for all internal plumbing interfaces to maintain mains water safety. This passive unit functions purely on line pressure without an external power source. A pressure limiting valve is included to protect the unit from mains pressure spikes.

Maintenance requirements involve 20-inch cartridge replacement every 6 to 12 months, with access provided by removing the front cover via lockable latches. The system protects internal components from environmental factors while maintaining high-flow performance for the whole building. Protection from freezing is required for external wall placements. The design provides a tiered reduction path for contaminants within a compact housing.

Features

• Semi-recessed in-wall configuration offers a housing solution that preserves external property space while providing high-capacity water treatment for the entire facility.
• Night Sky powder-coated aluminium cover provides a weather-resistant barrier that protects the internal filtration kit from external environmental factors.
• Dual 20-inch high-flow filtration configuration utilizes tiered 5-micron cartridges to reduce chemicals and sediment for all building outlets.
• Lead-free brass plumbing connections are utilized for the inlet and outlet ports to comply with regulatory standards for mains water safety and distribution.
• Integrated pressure limiting valve provides a mechanism for system protection against high supply pressures and fluctuating mains line pressures.
• Lockable latches on the front panel enable secure access to internal cartridges for maintenance while preventing unauthorized tampering with the filtration kit.
• Flush-mount architectural profile allows the unit to sit within standard wall cavities to provide whole house treatment without occupying external ground space.

Warranty: 10 year warranty is 1 year parts and labour, 9 years parts only. Excludes cartridges.
