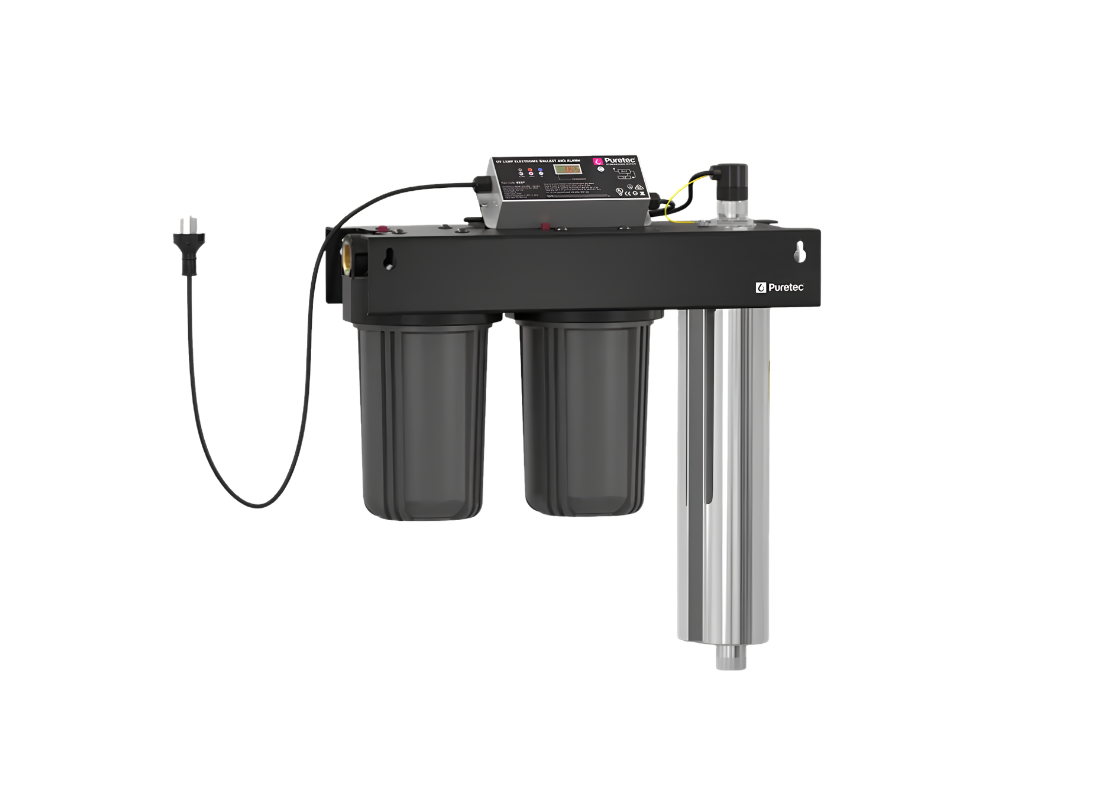

Puretec HYBRID-I6-LF Indoor High Flow UV Rainwater Filter System 10" MaxiPlus Max 75LPM 875kPa

Internal fluid velocity paths are managed in the HYBRID-I6-LF through a high flow indoor UV system designed for clarifies and purifies rainwater. Part of the Puretec Hybrid I6 series it provides a unified path for sediment removal and ultraviolet disinfection in residential facilities. It is suitable for wall mounted indoor installation using a reversible bracket that accommodates various plumbing directions. The system integrates dual stage physical filtration with Radfire UV technology.

Manufactured from 304 grade stainless steel the Radfire UV steriliser chamber is the core of the construction. The unit features 10 inch MaxiPlus housing bowls built to contain the PL05MP1 pleated sediment and DP10MP1 dual purpose carbon cartridges. It weighs 18 kg and operates in liquids up to 52 degrees Celsius. The assembly includes a wall mount structure and a secure locking cover for the UV lamp providing a technical solution for microbiological contaminants and sediment management.

This unit is rated for a maximum flow of 75 L/Min and operates efficiently between 300 and 875 kPa of pressure. It connects to the distribution loop via 1 inch BSP male fittings measuring 25 mm. The RL7 UV lamp functions on a 240 V power supply regulated by an electronic controller. The multi stage filtration achieves a nominal 5 micron rating ensuring that fine sand and silt are removed from the water stream before it enters the final ultraviolet disinfection chamber for treatment.

Long term operating cost scaling is managed by the electronic controller which monitors lamp life and system status. The unit follows AS 3497 certifications for water treatment and features a quartz sleeve RQS6 to isolate the lamp from water contact. Radfire technology provides natural chemical free disinfection killing 99.9 percent of bacteria and harmful cysts. Maintenance is supported by the HR-EI6 kit which contains replacement cartridges and the specialized RL7 UV lamp for servicing.

• Radfire ultraviolet sterilisation kills 99.9 percent of bacteria without using chemical additives.
• Multi stage filtration includes a 10 inch MaxiPlus pleated sediment cartridge for silt removal.
• Dual purpose carbon filter specifically targets the reduction of taste odour and chemicals.
• Heavy duty reversible bracket provides versatility for different plumbing installation directions.
• Electronic controller monitors the RL7 lamp and includes a digital countdown timer with failure alarms.
• Housing assembly features bowls manufactured for use in whole house rainwater filtration.
• Maintenance kit HR-EI6 provides all consumable parts including the RL7 lamp and cartridges.

Warranty: 3 year warranty is 1 year parts and labour, 2 years parts only. Excludes cartridges.
