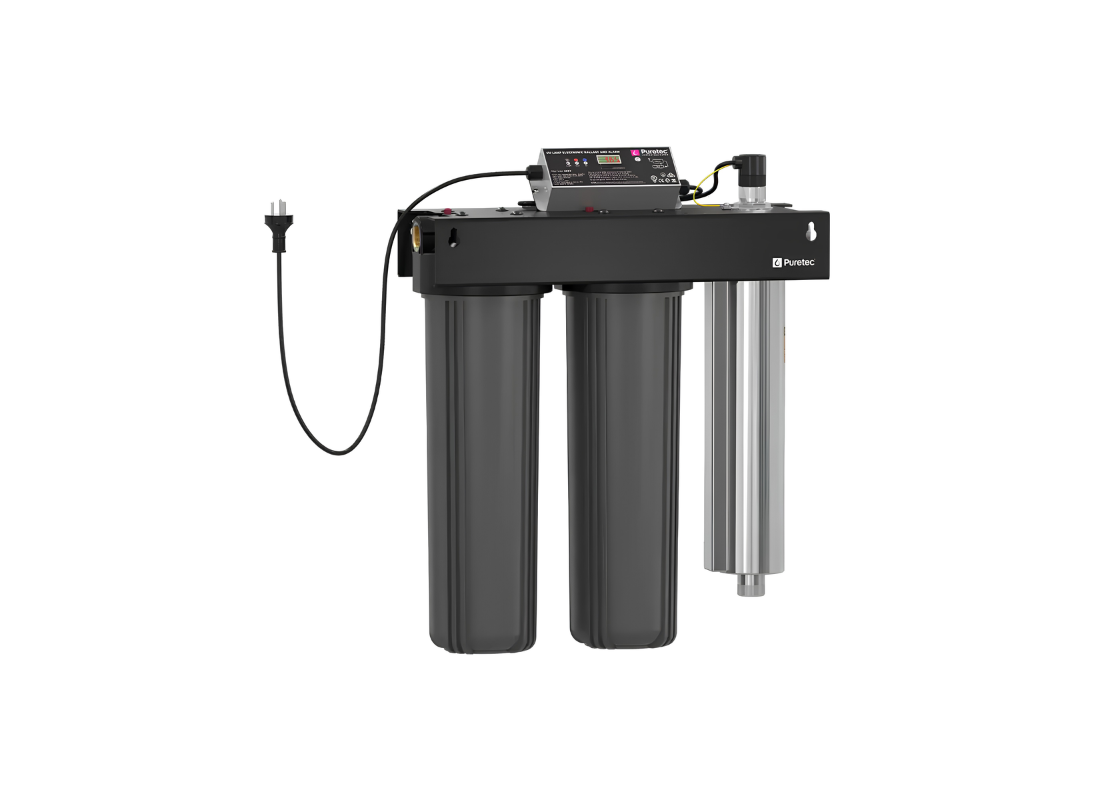

Puretec HYBRID-I7-LF Indoor High Flow UV Rainwater Filter System 20" MaxiPlus Max 130LPM 875kPa

Structural material choice is the defining characteristic of the HYBRID-I7-LF featuring a 304 grade stainless steel Radfire steriliser for high flow indoor treatment. As a member of the Puretec Hybrid I7 series it is specified for residential applications requiring disinfection without chemicals. It is suitable for wall mounted indoor installations using its reversible bracket system. The system integrates multiple stages of physical filtration with ultraviolet light to clarify and purify water for every outlet.

The housing assembly consists of housing bowls and a stainless steel UV chamber that surrounds internal components. It utilizes 20 inch MaxiPlus cartridges including a PL05MP2 pleated sediment filter and a DP10MP2 dual purpose carbon unit. The system weighs 25 kg and operates in liquid temperatures between 0 and 52 degrees Celsius. Its construction includes a wall mount structure and a secure locking mechanism for the UV lamp to ensure structural integrity in whole house indoor configurations.

This model achieves a maximum flow rate of 130 L/Min and is rated for operational pressures from 300 to 875 kPa. Plumbing integration is achieved via 1 inch BSP male fittings at 25 mm. The system utilizes an RL7 UV lamp which operates on a standard 240 V power supply managed by an electronic controller. Its multi stage filtration achieves a nominal 5 micron rating removing dirt rust and fine particulates from the source water before it enters the ultraviolet disinfection chamber.

Safety protection containment is provided by an electronic controller that tracks the 12,000 hour lamp life and provides failure notifications. The unit meeting AS 3497 standards for water treatment features a quartz sleeve RQS6 to isolate the lamp from direct liquid contact. The Radfire technology provides chemical free purification killing 99.9 percent of bacteria and cysts. Routine maintenance is facilitated by the HR-EI7 kit which provides replacement cartridges and the RL7 ultraviolet lamp.

• Radfire ultraviolet technology provides chemical free disinfection killing 99.9 percent of bacteria.
• Multi stage filtration includes a 20 inch MaxiPlus pleated sediment cartridge for particulate removal.
• Dual purpose carbon filter reduces chlorine taste and odour while targeting organic chemicals.
• Reversible mounting bracket allows for versatile installation in either clockwise or counter flow.
• Electronic controller features an integrated lamp failure alarm and digital countdown for lamp life.
• Housing assembly features bowls designed for whole house filtration in high flow residential setups.
• Maintenance kit HR-EI7 includes the replacement RL7 lamp and both specialized filter cartridges.

Warranty: 3 year warranty is 1 year parts and labour, 2 years parts only. Excludes cartridges.
