Puretec HYBRID-P6-LF Weatherproof UV Rainwater Filter with CMB SP 5 47 Pump Max 86LPM 875kPa

Structural housing design defines the HYBRID-P6-LF featuring a weather proof cabinet built for high volume rainwater fluid optimization. Part of the Puretec Hybrid P series it combines triple filtration ultraviolet disinfection and high capacity pressure boosting into a single outdoor package. It is suitable for floor mounted installation near rainwater tanks or on external pads using its patented cabinet design. The system is specified for applications requiring consistent water quality and high distribution pressure.

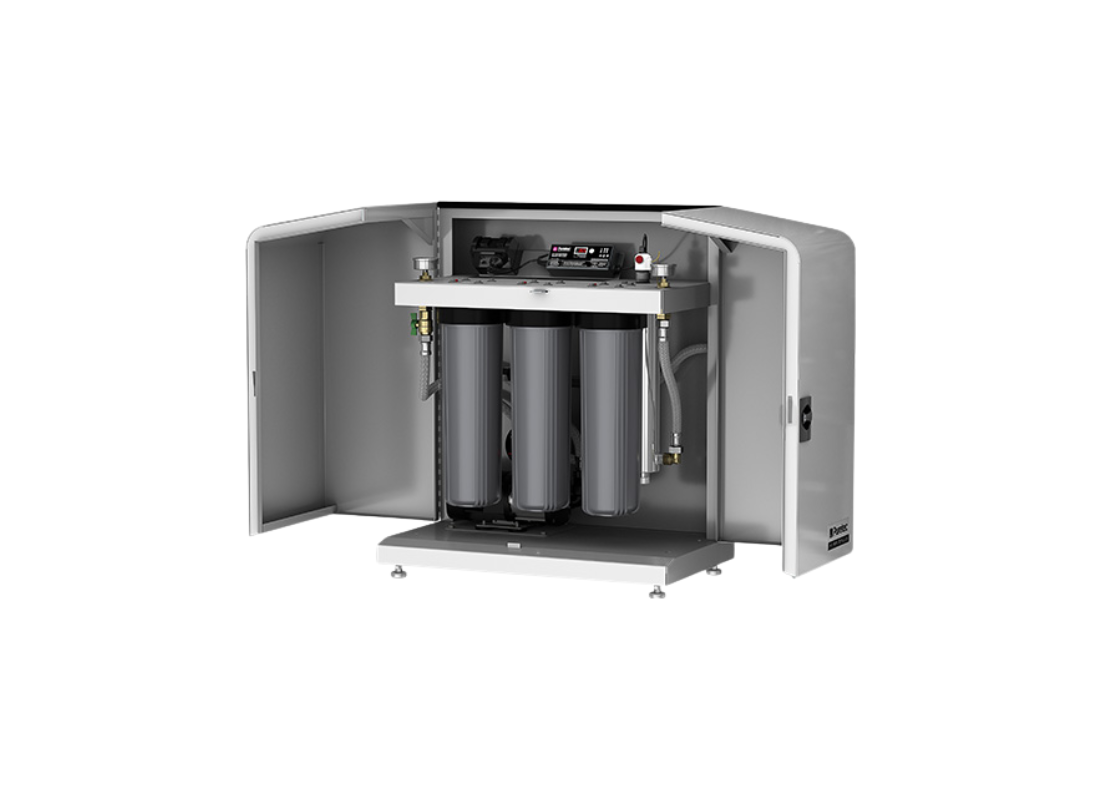

The construction includes a patented lockable cabinet with gull wing access doors for protection and maintenance accessibility. It features a grade 304 stainless steel Radfire UV chamber and 20 inch MaxiPlus housing bowls containing pleated sediment carbon block and polyspun cartridges. The unit integrates a CMB-SP 5-47 pressure pump for fluid boosting. It is built to operate in liquid temperatures from 0 to 52 degrees Celsius and provides a technical solution for manages sediment and microbiological control.

This unit achieves a maximum flow rate of 86 L/Min and maintains performance across a pressure range of 300 to 875 kPa. Plumbing connections are 1 inch BSP male at 25 mm. The system utilizes an RL6 UV lamp on a 240 V electrical supply managed by an electronic controller. The triple stage filtration achieves a nominal 1 micron rating ensuring that the finest sand silt and particulates are removed before the water passes through the ultraviolet disinfection chamber for treatment.

Safety protection containment is provided by the lockable weather proof housing and an electronic controller that provides real time lamp monitoring and failure notifications. The unit follows AS 3497 certifications for water treatment and features a quartz sleeve RQS6 for lamp protection. Radfire technology provides chemical free purification killing 99.9 percent of bacteria and harmful cysts. Maintenance is supported by the HR-G13R11P kit providing replacement filters and the RL6 lamp for servicing.

• Weather proof cabinet with gull wing access doors provides architectural protection for the assembly.
• Integrated CMB-SP 5-47 pressure pump ensures high volume water delivery for residential systems.
• Radfire ultraviolet technology provides chemical free disinfection killing 99.9 percent of bacteria.
• Triple stage filtration utilizes 20 inch MaxiPlus cartridges including pleated sediment for holding.
• Integrated carbon block filter focuses on the reduction of taste odour and chemical contaminants.
• Polyspun sediment cartridge provides 1 micron filtration to remove fine silt and sand before UV.
• Electronic controller monitors RL6 lamp life and includes audible failure notifications and a countdown.

Warranty: 3 year warranty is 1 year parts and labour, 2 years parts only. Excludes consumables.
