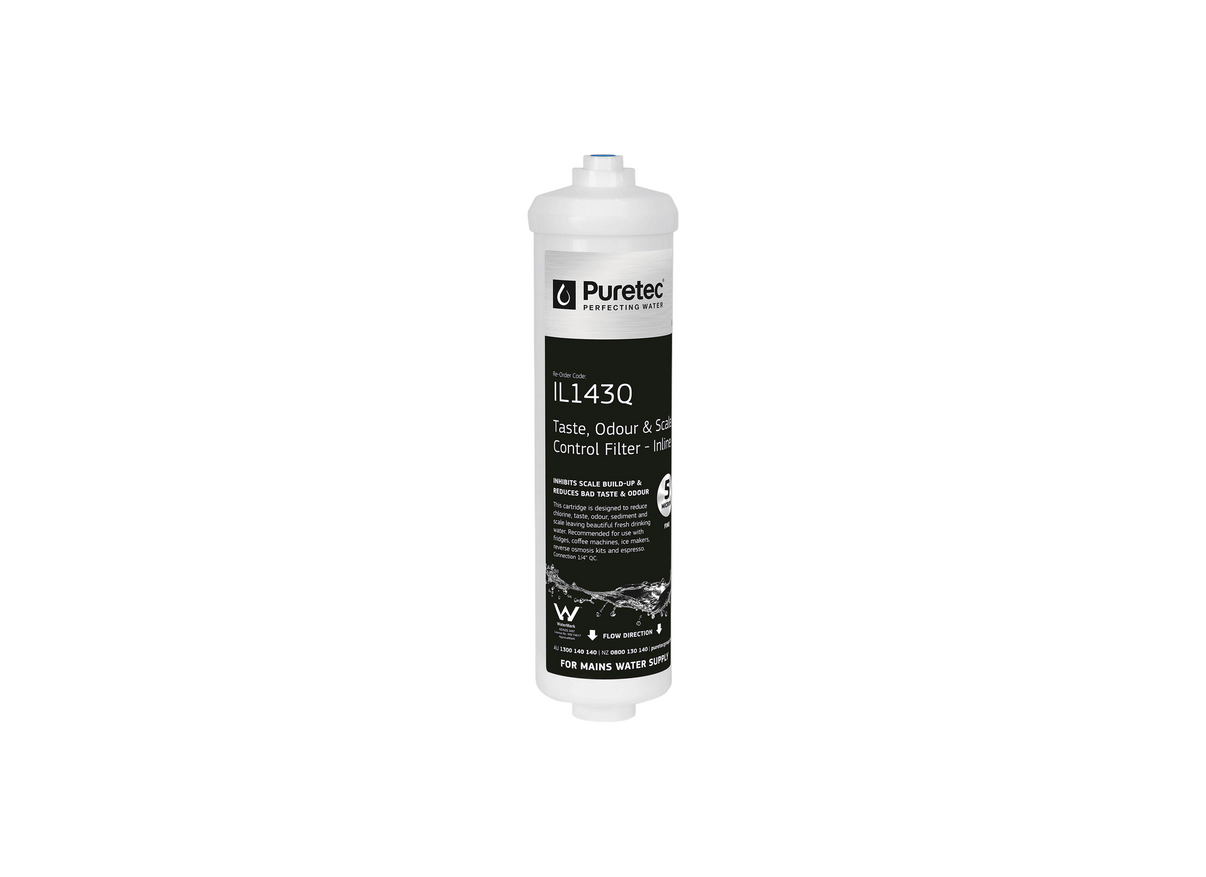

Puretec IL143Q Inline Fridge Scale Control Quick Connect 2" x 10" 5 Micron Water Filter Cartridge

To mitigate calcium build-up in coffee machines and water boilers, the Puretec IL143Q inline water filter cartridge utilizes active scale control media. It connects directly inline to plastic pipes using integrated quick-connect fittings. This cartridge is suitable for under-sink water heater feeds and caravan cold water loops.

Manufactured with a molded polymer outer shell, the unit has physical dimensions of 10 inches length by 2 inches diameter. The internal media consists of activated carbon combined with chemical scale inhibitor crystals. The dry filter weighs 0.39 kg and operates in cold feed lines up to 38°C.

This quick-connect scale cartridge operates within rated pressure limits of 100 to 520 kPa. It has a specified micron rating of 5 micron to capture physical rust, clay, and sand particles. The internal flow path allows a maximum water flow rate of 1.9 Lpm under standard mains pressure.

The inlet and outlet connections incorporate 1/4 inch quick connect tube ports for direct push-in installation. It complies with Australian plumbing regulations under AS/NZS 3497 licence number WM 74617. The scale inhibitor compound treats hard water minerals to reduce calcium scale build-up on critical hot water elements. Maintenance involves simple cartridge replacement.

• Sealed polymer cartridge measuring 10 inches length by 2 inches diameter fits standard inline brackets.
• Specialty scale inhibitor and carbon media treats chlorine tastes, organic odours, and lime scale.
• Integrated 1/4 inch quick connect ports accept plastic tubing directly to speed up installation.
• Operating water pressure limits span from 100 kPa minimum up to 520 kPa maximum limits.
• Water flow capacity is specified at 1.9 L/Min to supply fresh water to beverage appliances.
• Nominal 5 micron rating provides mechanical filtration of organic matter and suspended sediment.
• Replacement intervals are recommended every 6 to 12 months depending on water quality conditions.
