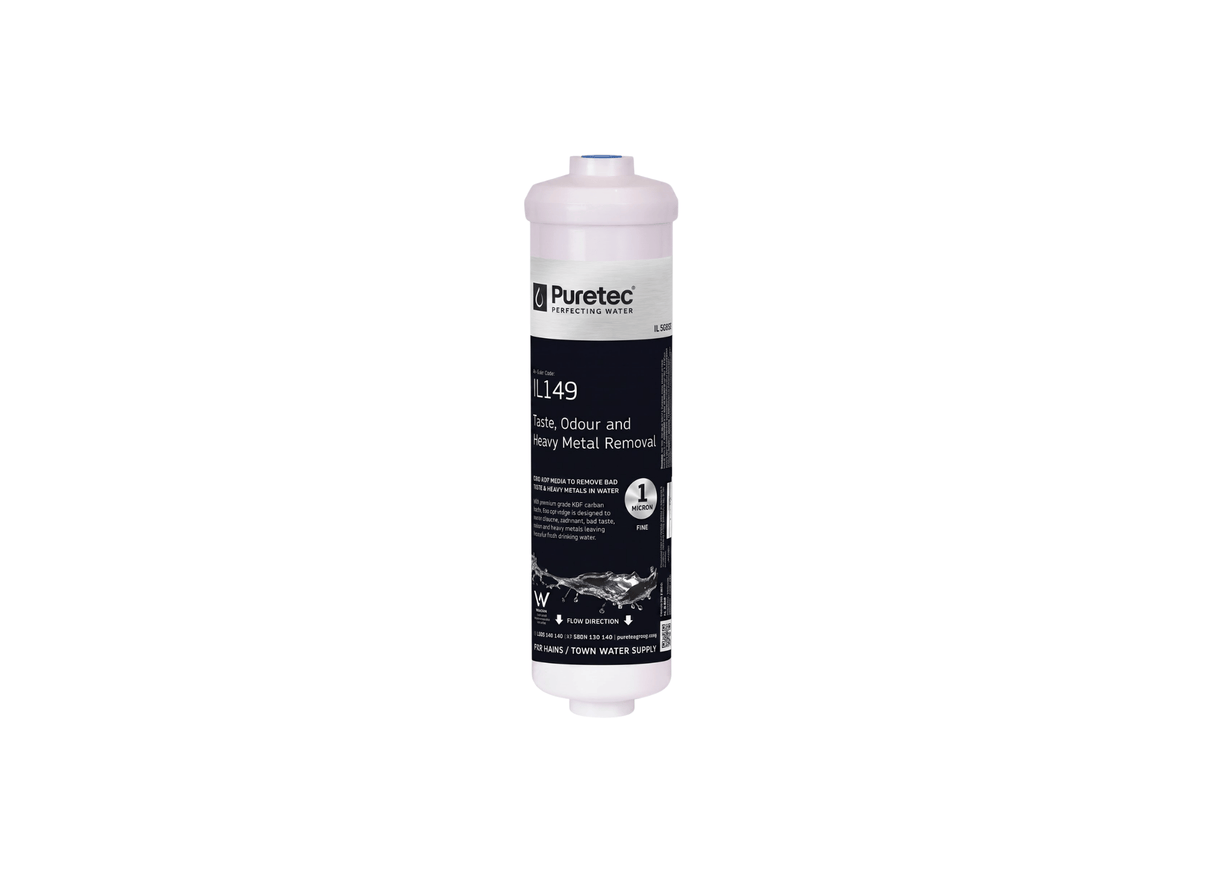

Puretec IL149 Inline Fridge KDF Carbon 2.5" x 10" 1 Micron Water Filter Cartridge

Utilizing copper-zinc KDF media to control microbial activity, the Puretec IL149 is an inline water filter cartridge suitable for caravan water loops. It is designed for domestic refrigerators, ice makers, and under-sink drinking taps connected to cold municipal supply lines. The cartridge installs inline using standard fittings.

Constructed from a polymer pressure body, this cartridge houses a blend of coconut carbon and copper-zinc KDF media. The physical dimensions measure 10 inches length by 2.5 inches diameter to fit standard wide mounting clips. The filter weighs 0.52 kg and operates in water temperatures up to 38°C.

Operational parameters include a rated water pressure range of 100 to 520 kPa. The cartridge features a nominal micron rating of 1 micron for fine particle filtration, reducing chlorine, bad taste, odours, and heavy metals. It allows a maximum flow rate of 1.9 Lpm through the internal bed.

The plumbing ports utilize a 1/4 inch BSPF female thread configuration for leak-free threaded connections. It complies with plumbing performance standards under AS/NZS 3497 licence WM 74617. The KDF media controls micro-organism growth inside the carbon bed. Regular replacement is required to maintain filtration performance.

• Sealed polymer cartridge measuring 10 inches length by 2.5 inches diameter fits wide inline brackets.
• KDF copper-zinc media combined with carbon reduces heavy metals and inhibits bacterial activity.
• Plumbing connections use Threaded 1/4 inch BSPF ports for leak-free threaded fitting adaptors.
• Operating water pressure limits span from 100 kPa minimum up to 520 kPa maximum limits.
• Water flow capacity is specified at 1.9 L/Min to supply fresh water to drinking nozzles.
• Nominal 1 micron rating provides barrier filtration of fine suspended sediment particles.
• Replacement intervals are recommended every 6 to 12 months depending on water quality conditions.
