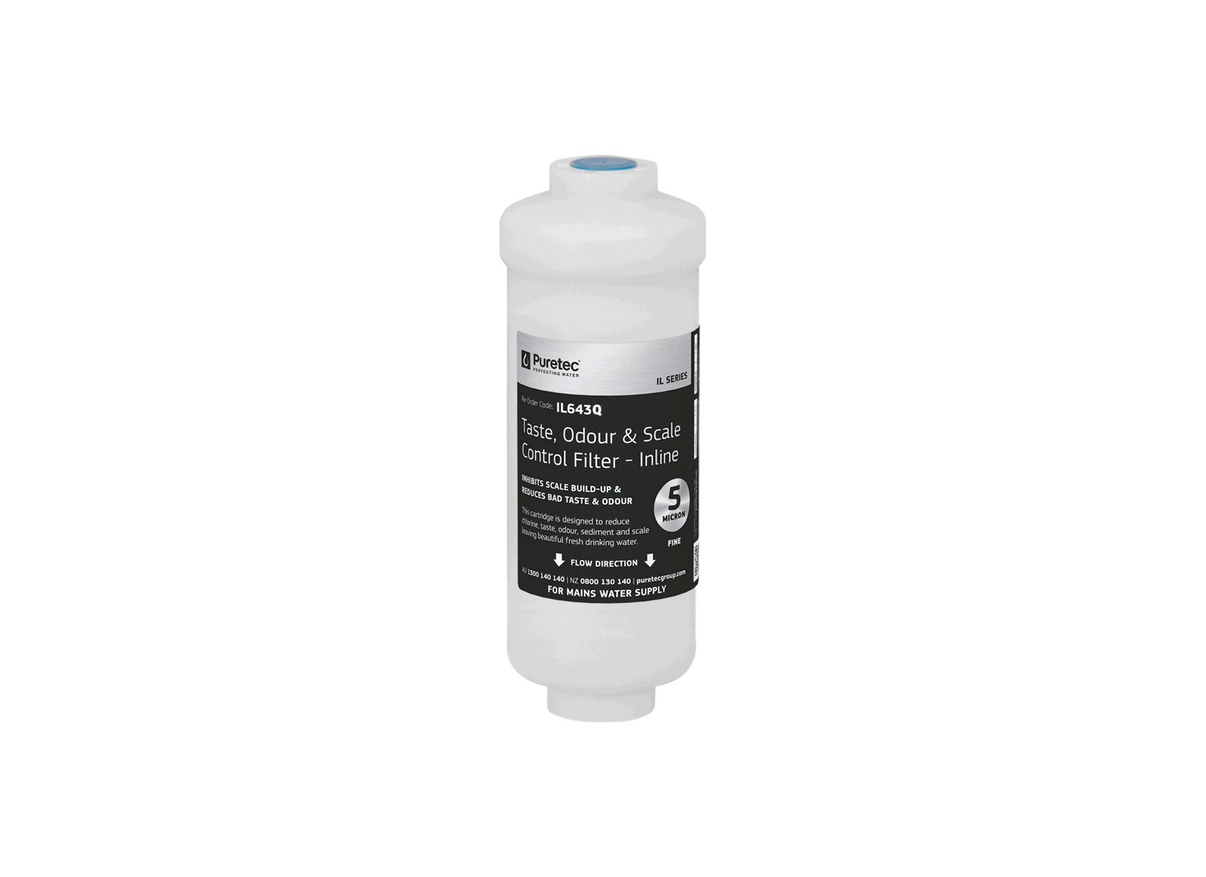

Puretec IL643Q Inline Fridge Quick Connect 2" x 6" 5 Micron Water Filter Cartridge

Designed with built-in push-fit ports, the Puretec IL643Q is an inline water filter cartridge suitable for space-restricted areas behind refrigerators. It provides direct connection to plastic water tubes without requiring brass adaptors. The cartridge mounts using standard under-sink clips to service residential appliances.

Constructed with a sealed polymer casing, the filter measures 6 inches in physical length by 2 inches in diameter. The internal chamber is packed with a triple action carbon media configured for residential mains drinking lines. It has a dry weight of 0.25 kg and operates with liquid temperatures up to 38°C.

This quick-connect inline filter operates within rated water pressure limits of 100 to 520 kPa. It has a nominal micron rating of 5 micron to filter trace sediment, clay, and sand. The internal channel is specified for a maximum water flow rate of 1.9 Lpm.

The ports utilize a 6.35 mm quick connect tube port arrangement for quick, tool-free tubing integration. It holds certification under AS/NZS 3497 licence WM 74617 to comply with municipal plumbing codes. The triple-action carbon chemistry adsorbs chlorine, dissolved tastes, and organic odours. It requires simple periodic replacement of the complete unit.

Features

• Slimline housing measuring 6 inches in length by 2 inches in diameter fits behind appliance cabinets.
• Triple-action carbon media treats chlorine tastes, organic chemical compounds, and aesthetic odours.
• Integrated 1/4 inch quick-connect ports enable direct, tool-free connection of plastic tubing.
• Operational pressure tolerances range from 100 kPa minimum up to 520 kPa peak supply limits.
• Maximum water flow rate is specified at 1.9 L/Min to feed refrigeration dispenser outlets.
• Filtration rating of 5 micron removes physical sediment, clay particles, and carbon fines.
• Typical cartridge replacement interval spans from 6 to 12 months depending on local water quality.
