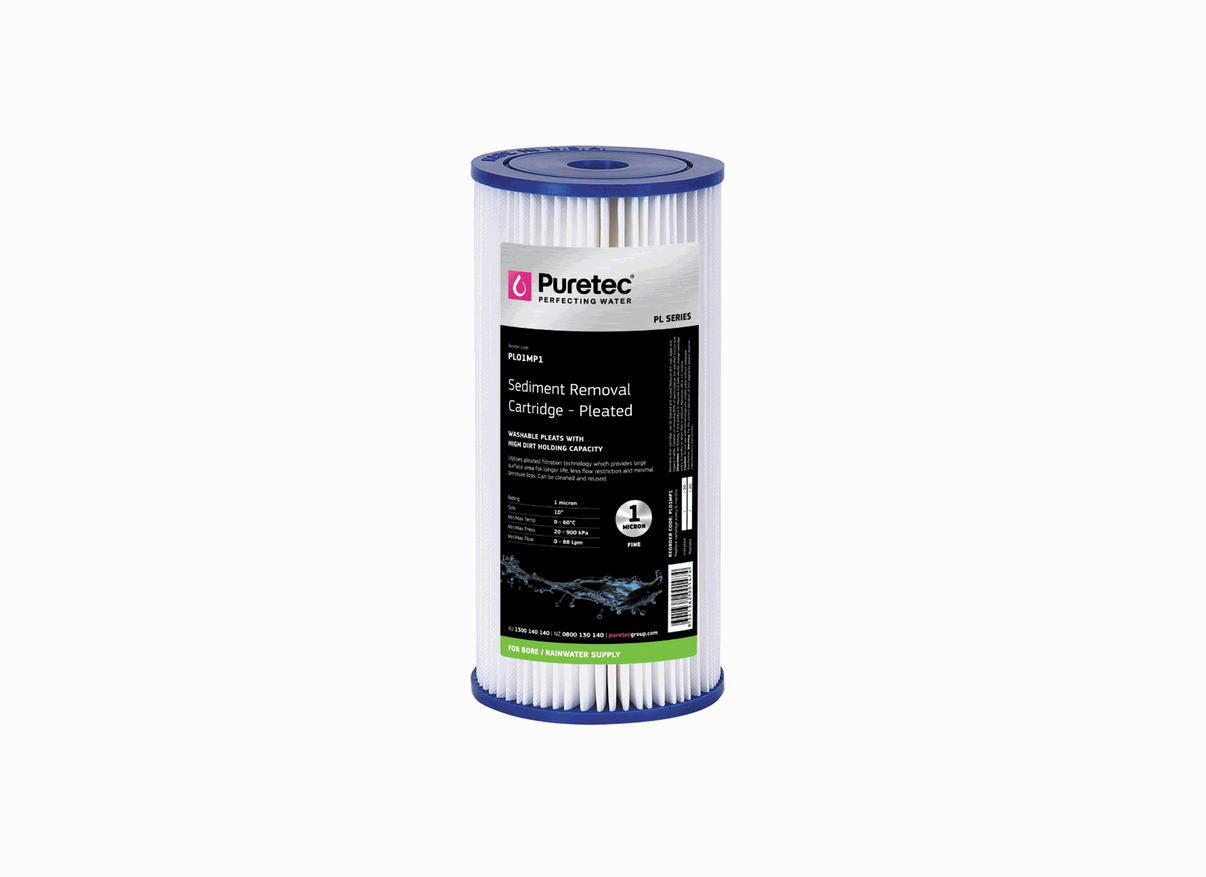

Puretec PL01MP1 Pleated Sediment MaxiPlus 1 Micron 4.5" x 10" Water Filter Cartridge

Constructed with a wide-format MaxiPlus diameter, the Puretec PL01MP1 cartridge is suitable for fine whole-house water filtration. This model captures micro-fine suspended particles from tank, bore, or municipal water. It is suitable for MaxiPlus filter housings and operates on main water entry lines.

At its structural center, the cartridge incorporates a non-woven polyester fabric medium folded into a wide pleated layout. This pleated fabric surrounds a solid central polypropylene core that provides internal stiffness. The ends of the pleats are sealed in thermo-setting vinyl plastisol PVC to form a unitized end cap gasket.

Measuring 4.5 inches by 10 inches, this MaxiPlus cartridge is rated for a nominal filtration level of 1 micron. It incorporates more than 16 square feet (1.48 square meters) of active pleated media to catch incoming particulates. The structural overlap seam is sonically welded, which blocks internal water bypass and increases physical capture efficiency.

This model features a maximum flow capacity of 88 L/Min, providing filtration with low resistance. The rated operating temperature bounds are 4.4°C to 51.7°C (40°F to 125°F). Thanks to the washable non-woven fibers, the cartridge incorporates a reusable design, allowing routine washing to extend service runs.

Features

• Pleated media design provides a large physical surface area to capture and accumulate suspended water solids.
• Manufactured from high-strength synthetic non-woven polyester fabric to resist microbiological degradation.
• Features a nominal filtration rating of 1 microns to capture fine physical particles and sediment flakes.
• The internal polypropylene core provides structural stiffness to resist collapsing under pressure spikes.
• Plastisol PVC end caps and integrated gaskets seal with the multi-fold media to block water bypass.
• Features standard dimensions of 4.5 inches by 10 inches, allowing clean installation into matching filter housings.
• Washable polyester fabric allows periodic cleaning, extending cartridge lifespan and lowering service costs.
