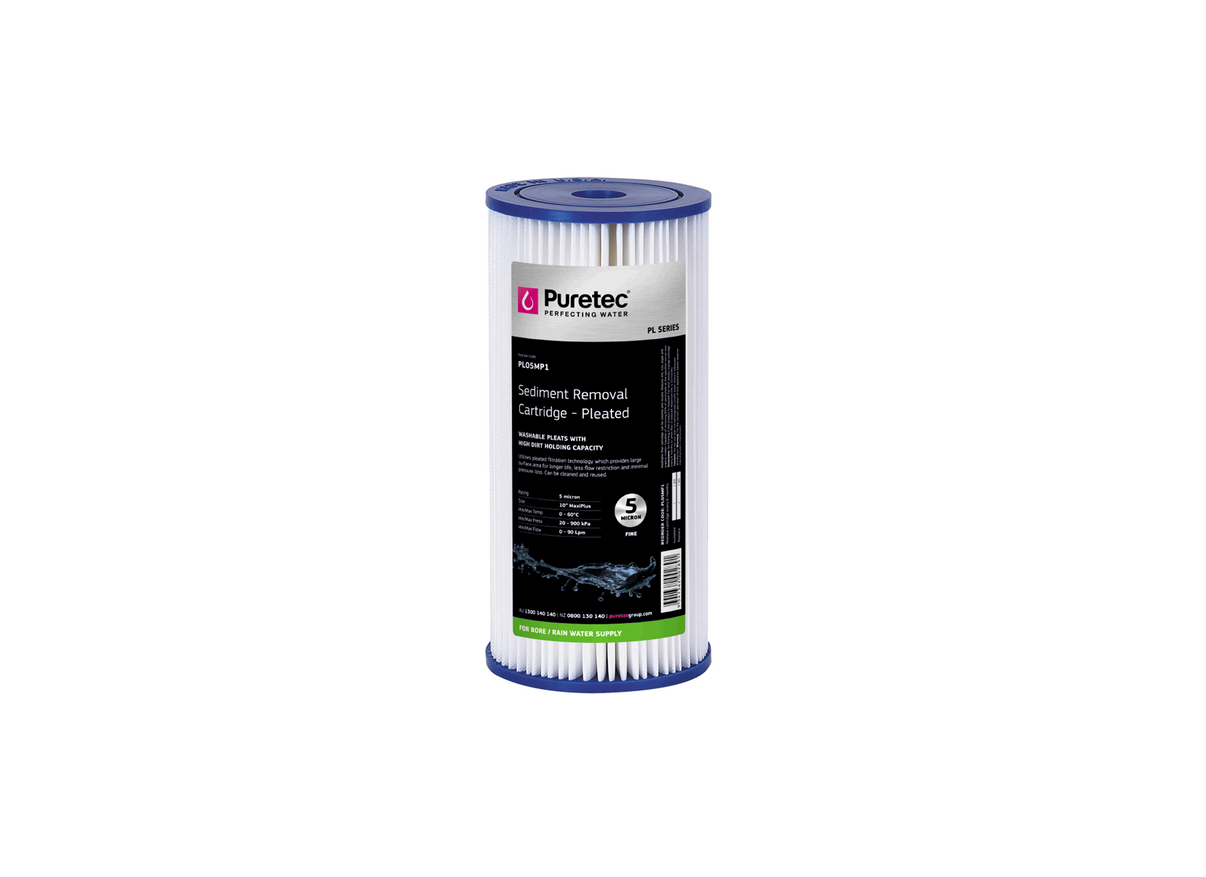

Puretec PL05MP1 Pleated Sediment MaxiPlus 5 Micron 4.5" x 10" Water Filter Cartridge

To filter high-volume water supplies, the wide-body Puretec PL05MP1 pleated sediment cartridge isolates fine sand and clay. This wide model is suited for residential rainwater clarification, commercial lines, and agricultural piping. It is suitable for MaxiPlus filter housings and connects to main plumbing entry loops.

The filtration media is fabricated from synthetic non-woven polyester fibers folded into a wide pleated arrangement. This pleated medium surrounds an internal polypropylene core that offers physical stiffness in high-volume lines. To block bypass, the multi-fold pleated ends are sealed in thermo-setting vinyl plastisol PVC.

This wide cartridge has physical dimensions of 4.5 inches by 10 inches, featuring a nominal rating of 5 microns. It incorporates more than 16 square feet (1.48 square meters) of active filter media to trap incoming particles. The structural overlap seam is sonically welded, which blocks internal water bypass and increases the physical capture efficiency.

The cartridge operates at a maximum flow rate of 90 L/Min, retaining excellent hydraulic flow properties. It is rated for fluid temperatures from 4.4°C to 51.7°C (40°F to 125°F). Featuring washable polyester fabric, this model utilizes a reusable configuration, allowing physical cleaning between filtration runs.

Features

• Pleated media design provides a large physical surface area to capture and accumulate suspended water solids.
• Manufactured from high-strength synthetic non-woven polyester fabric to resist microbiological degradation.
• Features a nominal filtration rating of 5 microns to capture fine physical particles and sediment flakes.
• The internal polypropylene core provides structural stiffness to resist collapsing under pressure spikes.
• Plastisol PVC end caps and integrated gaskets seal with the multi-fold media to block water bypass.
• Features standard dimensions of 4.5 inches by 10 inches, allowing clean installation into matching filter housings.
• Washable polyester fabric allows periodic cleaning, extending cartridge lifespan and lowering service costs.
