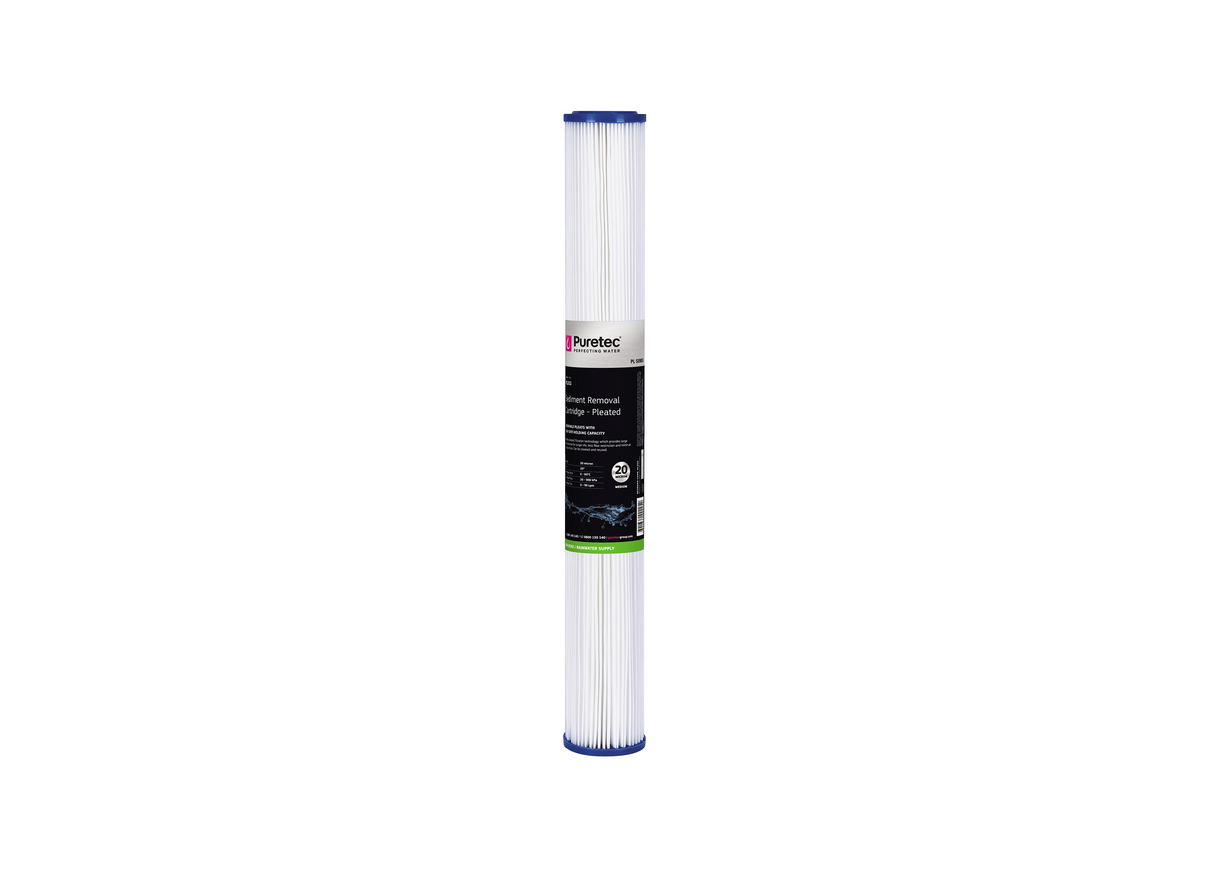

Puretec PL202 Pleated Sediment 20 Micron 2.5" x 20" Water Filter Cartridge

Engineered for medium-grade particle extraction, the Puretec PL202 pleated cartridge operates in larger residential and commercial water lines. This 20-inch model provides physical filtration for sediment, rust flakes, and silt. It is suitable for standard slimline filter housings and is suitable for high-volume flow requirements.

Regarding construction, the cartridge incorporates a non-woven polyester fabric medium folded into multiple filtration pleats. This pleated media surrounds a solid polypropylene core that provides internal stiffness in 20-inch housings. The ends are sealed by embedding them in thermo-setting vinyl plastisol PVC to block water bypass.

This 20-inch model measures 2.5 inches by 20 inches and operates with a nominal rating of 20 microns. It incorporates more than 4 square feet (0.37 square meters) of active pleated media to catch incoming particulates. The structural overlap seam is sonically welded, which blocks internal water bypass and increases physical capture efficiency.

This model features a maximum flow capacity of 90 L/Min, providing filtration with low resistance. The rated operating temperature bounds are 4.4°C to 51.7°C (40°F to 125°F). Built with washable synthetic media, the cartridge features a reusable design, enabling cleaning between service runs to reduce costs.

Features

• Pleated media design provides a large physical surface area to capture and accumulate suspended water solids.
• Manufactured from high-strength synthetic non-woven polyester fabric to resist microbiological degradation.
• Features a nominal filtration rating of 20 microns to capture fine physical particles and sediment flakes.
• The internal polypropylene core provides structural stiffness to resist collapsing under pressure spikes.
• Plastisol PVC end caps and integrated gaskets seal with the multi-fold media to block water bypass.
• Features standard dimensions of 2.5 inches by 20 inches, allowing clean installation into matching filter housings.
• Washable polyester fabric allows periodic cleaning, extending cartridge lifespan and lowering service costs.
