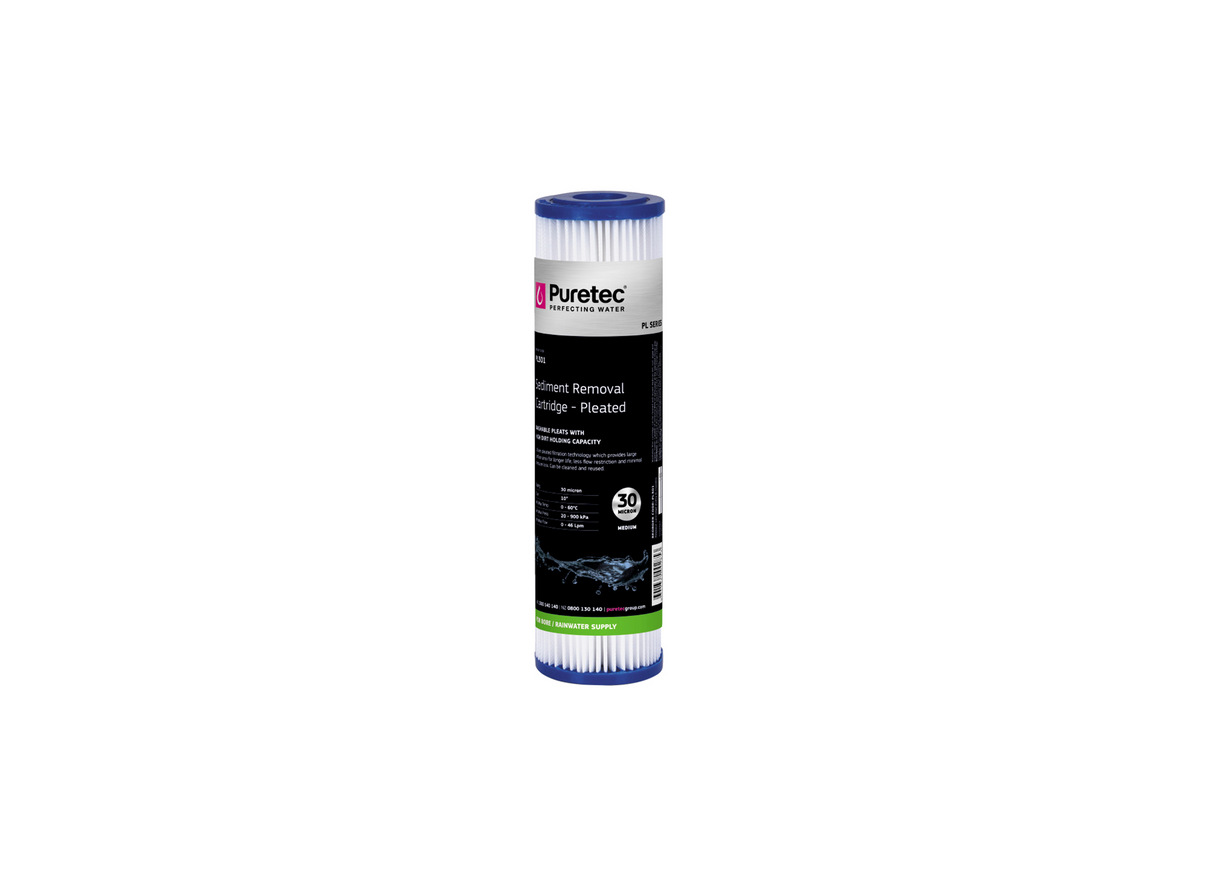

Puretec PL301 Pleated Sediment 30 Micron 2.5" x 10" Water Filter Cartridge

Suitable for high-sediment raw water feeds, the Puretec PL301 utilizes multi-fold pleated media to accumulate substantial physical particles. This cartridge acts as a primary filter to keep downstream carbon blocks from clogging. It is suitable for standard slimline filter housings and operates on municipal or bore supplies.

The core element consists of high-strength non-woven polyester fabric sheets folded into multiple pleat layers. This pleated polyester media is braced by an internal polypropylene core that provides structural stiffness. The end caps are formed by embedding the media ends in thermo-setting vinyl plastisol PVC, creating a leak-free seal.

Measuring 2.5 inches in diameter by 10 inches in length, this model operates with a nominal rating of 30 microns. It incorporates more than 4 square feet (0.37 square meters) of active pleated media to catch incoming particulates. The structural overlap seam is sonically welded, which blocks internal water bypass and increases physical capture efficiency.

The filter performs at a maximum flow limit of 46 L/Min, providing filtration with low flow restriction. It operates in liquid temperatures ranging from 4.4°C to 51.7°C (40°F to 125°F). Featuring washable synthetic media, the cartridge features a reusable design, enabling cleaning between service runs to reduce costs.

Features

• Pleated media design provides a large physical surface area to capture and accumulate suspended water solids.
• Manufactured from high-strength synthetic non-woven polyester fabric to resist microbiological degradation.
• Features a nominal filtration rating of 30 microns to capture fine physical particles and sediment flakes.
• The internal polypropylene core provides structural stiffness to resist collapsing under pressure spikes.
• Plastisol PVC end caps and integrated gaskets seal with the multi-fold media to block water bypass.
• Features standard dimensions of 2.5 inches by 10 inches, allowing clean installation into matching filter housings.
• Washable polyester fabric allows periodic cleaning, extending cartridge lifespan and lowering service costs.
