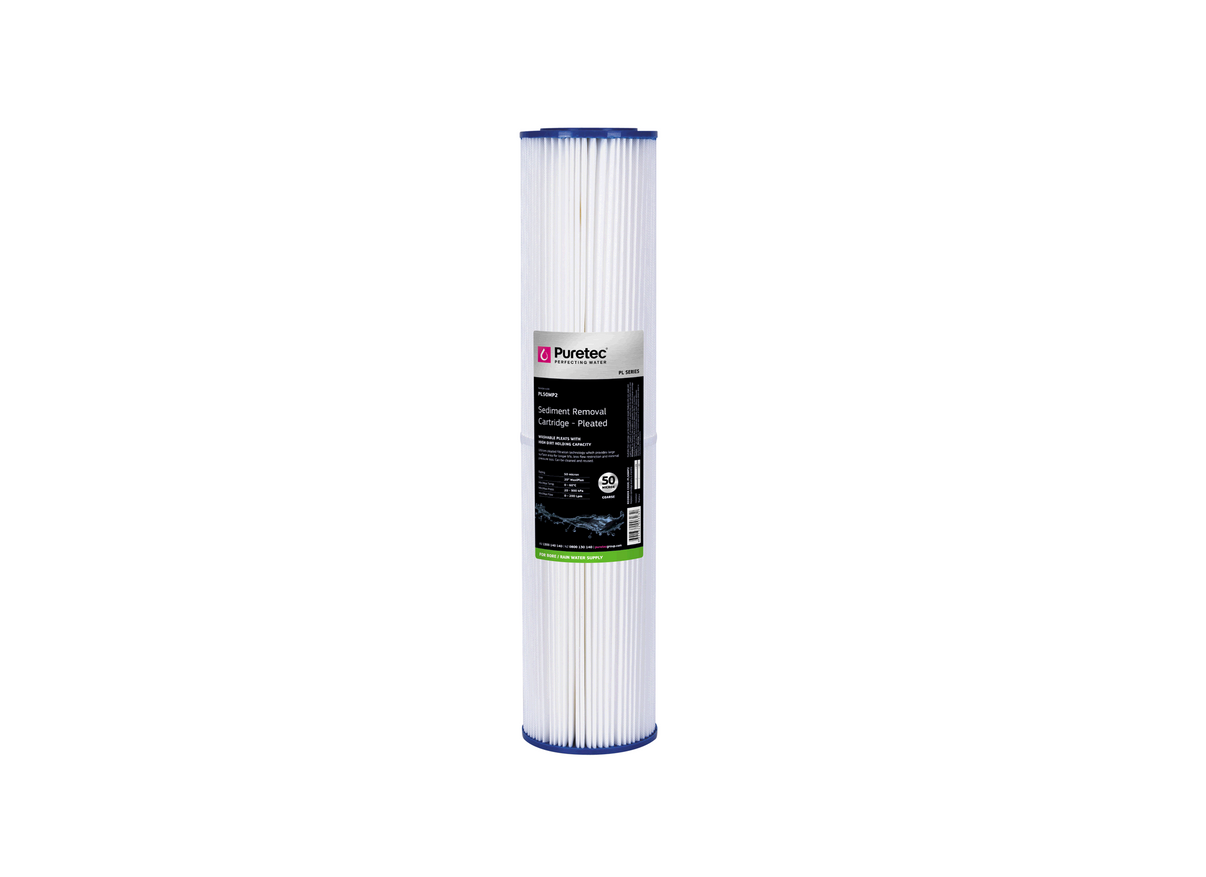

Puretec PL50MP2 Pleated Sediment MaxiPlus 50 Micron 4.5" x 20" Water Filter Cartridge

Designed for heavy-duty sediment pre-filtration, the Puretec PL50MP2 MaxiPlus cartridge captures coarse suspended solids in high-flow commercial systems. This wide-body 20-inch model is suitable for MaxiPlus filter housings and operates on high-volume pump lines.

The structural composition features a coarse non-woven polyester fabric media folded into a wide multi-surface layout. This pleated fabric wraps around a solid central polypropylene core that provides structural stiffness. The top and bottom ends are sealed with thermo-setting vinyl plastisol PVC, forming a leak-free unitized end cap.

The physical dimensions of this long filter are 4.5 inches by 20 inches, featuring an ultra-fine nominal rating of 50 microns. It incorporates more than 16 square feet (1.48 square meters) of active pleated media to catch incoming particulates. The structural overlap seam is sonically welded, which blocks internal water bypass and increases physical capture efficiency.

This model features a maximum flow capacity of 200 L/Min, providing filtration with low resistance. The rated operating temperature bounds are 4.4°C to 51.7°C (40°F to 125°F). Thanks to the washable non-woven fibers, the cartridge incorporates a reusable design, allowing routine washing to extend service runs.

Features

• Pleated media design provides a large physical surface area to capture and accumulate suspended water solids.
• Manufactured from high-strength synthetic non-woven polyester fabric to resist microbiological degradation.
• Features a nominal filtration rating of 50 microns to capture fine physical particles and sediment flakes.
• The internal polypropylene core provides structural stiffness to resist collapsing under pressure spikes.
• Plastisol PVC end caps and integrated gaskets seal with the multi-fold media to block water bypass.
• Features standard dimensions of 4.5 inches by 20 inches, allowing clean installation into matching filter housings.
• Washable polyester fabric allows periodic cleaning, extending cartridge lifespan and lowering service costs.
