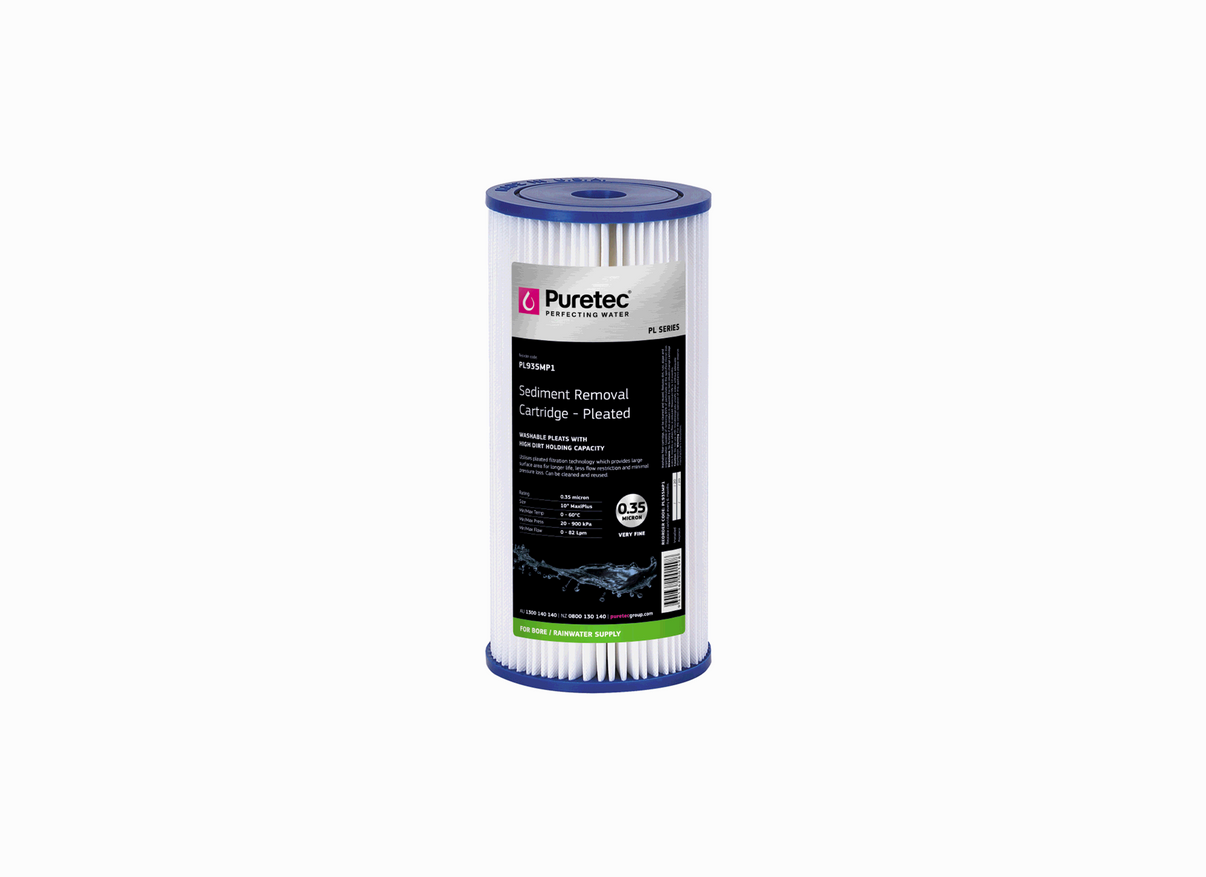

Puretec PL935MP1 Pleated Sediment MaxiPlus 0.35 Micron 4.5" x 5" Water Filter Cartridge

Engineered for high-flow MaxiPlus housings, the Puretec PL935MP1 MaxiPlus cartridge targets ultra-fine sub-micron particulates. This wide-body filter offers low flow resistance and high dirt-holding capacity for whole house filtration. It is suitable for MaxiPlus filter housings and is designed for high-flow domestic lines.

This wide-body model employs high-density non-woven polyester fabric folded into a wide pleated layout. This pleated polyester wraps around a wide polypropylene core that provides structural stiffness in MaxiPlus systems. The end seals are formed using thermo-setting vinyl plastisol PVC, fusing the components into a unitized cap.

The wide-format cartridge measures 4.5 inches by 10 inches and operates with a nominal rating of 0.35 microns. It incorporates more than 16 square feet (1.48 square meters) of active filter media to trap incoming particles. The structural overlap seam is sonically welded, which blocks internal water bypass and increases the physical capture efficiency.

The unit operates at a maximum flow rate of 82 L/Min, keeping clean pressure drop low during service. It is rated for liquid temperatures from 4.4°C to 51.7°C (40°F to 125°F). Built with washable synthetic media, the cartridge features a reusable design, enabling cleaning between service runs to reduce costs.

Features

• Pleated media design provides a large physical surface area to capture and accumulate suspended water solids.
• Manufactured from high-strength synthetic non-woven polyester fabric to resist microbiological degradation.
• Features a nominal filtration rating of 0.35 microns to capture fine physical particles and sediment flakes.
• The internal polypropylene core provides structural stiffness to resist collapsing under pressure spikes.
• Plastisol PVC end caps and integrated gaskets seal with the multi-fold media to block water bypass.
• Features standard dimensions of 4.5 inches by 10 inches, allowing clean installation into matching filter housings.
• Washable polyester fabric allows periodic cleaning, extending cartridge lifespan and lowering service costs.
