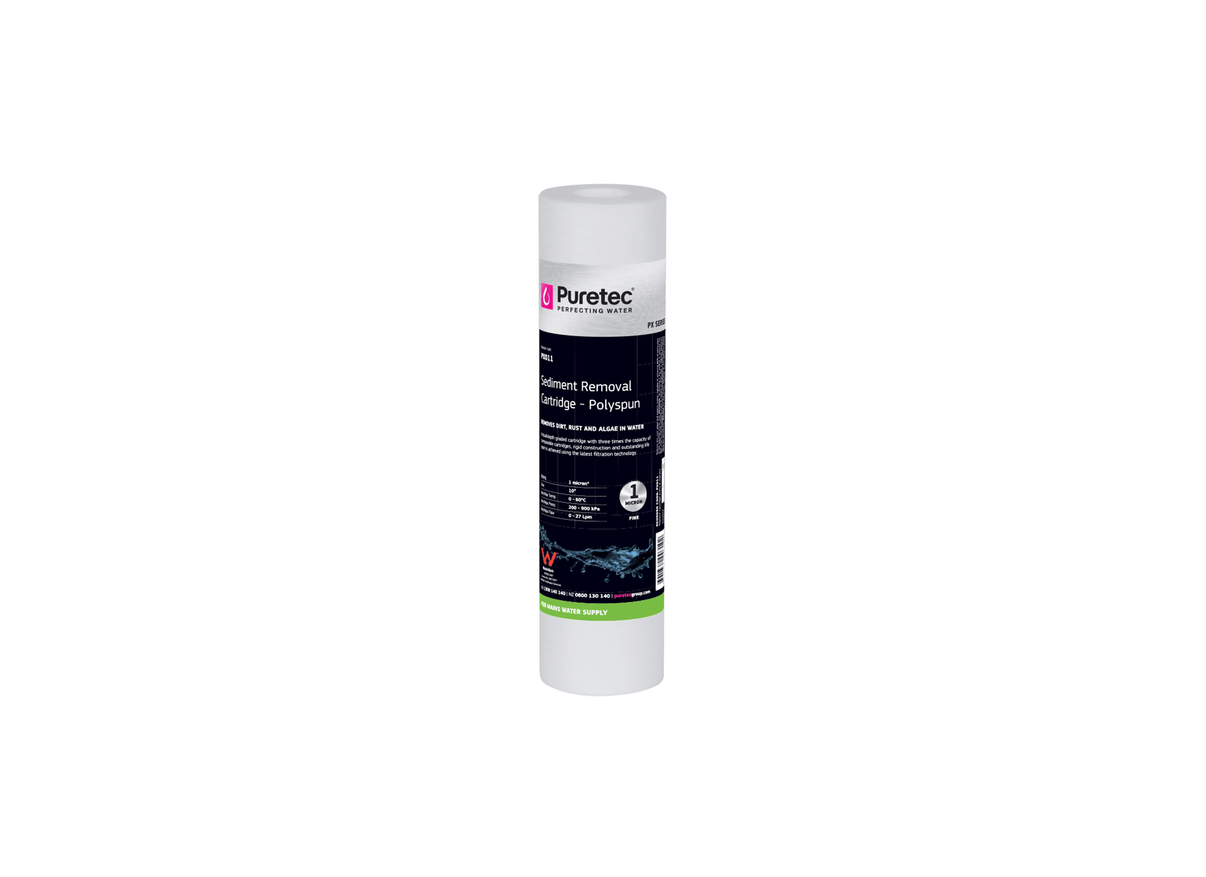

Puretec PX011 Polyspun Sediment 1 Micron 2.5" x 10" Water Filter Cartridge

Designed to trap fine particulates, the standard Puretec PX011 sediment removal cartridge features a polyspun density layout to filter raw water feeds. It is specified for inline housings on household supply ports, working as an initial pre-filtration barrier. The cartridge installs directly into standard setups, providing physical particulate capture.

Constructed from pure virgin polypropylene, the filter media features spun and melted fibers forming a self-braced structure. The polyspun layout uses a coreless design with no central core to restrict water flow. The unit weighs approximately 0.28 kg and is rated for operating temperatures ranging from 4.4°C to 60°C.

With physical measurements of 2.5 inches in diameter by 10 inches in length, the cartridge has a nominal rating of 1 micron. It achieves a maximum flow rate of 27 L/Min through standard cold-water pipelines, providing fine particulate isolation with low pressure drop.

The cartridge utilizes coreless depth filtration to accumulate suspended solid particles. Graded density pathways capture coarse impurities on the exterior while trapping micro-fine sediment within the inner layers. This multi-layered layout provides high dirt containment across municipal or rainwater networks. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 2.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 1 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 27 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
