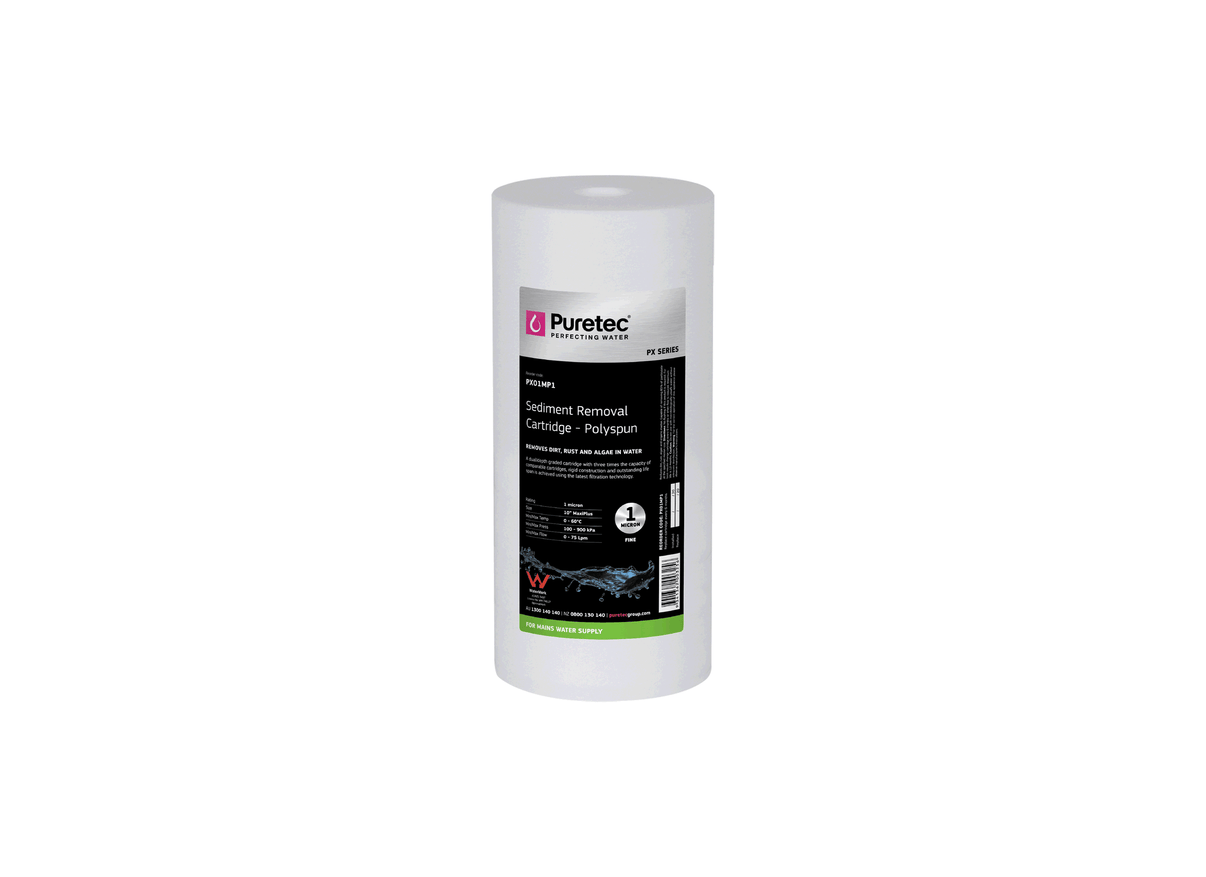

Puretec PX01MP1 Polyspun Sediment MaxiPlus 1 Micron 4.5" x 10" Water Filter Cartridge

The wide-body Puretec PX01MP1 polyspun cartridge provides high-flow physical filtration of fine particulates in heavy-demand water systems. This model is specified for MaxiPlus filter housings, working as a whole-house sediment pre-treatment block. It installs on main water entry manifolds, serving as a physical particulate interceptor.

This wide-body model is constructed from pure virgin polypropylene, featuring spun and melted synthetic fibers. The polyspun media utilizes a coreless configuration with no center core to restrict fluid performance. The cartridge weighs approximately 0.65 kg and is specified for temperatures from 4.4°C to 60°C.

This wide-body model measures 4.5 inches in diameter by 10 inches in length, featuring a nominal rating of 1 micron. It achieves a maximum flow rate of 75 L/Min, capturing fine suspended particles with low flow resistance through MaxiPlus housings.

This wide-body model utilizes depth filtration pathways, employing graded density spun polypropylene to isolate suspended solid matter. The coreless layout provides a high dirt-holding capacity, capturing coarse sand and silt on the outer fibers. This polypropylene model is compatible with bore water, rainwater, and mains supplies. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 4.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 1 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 75 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
