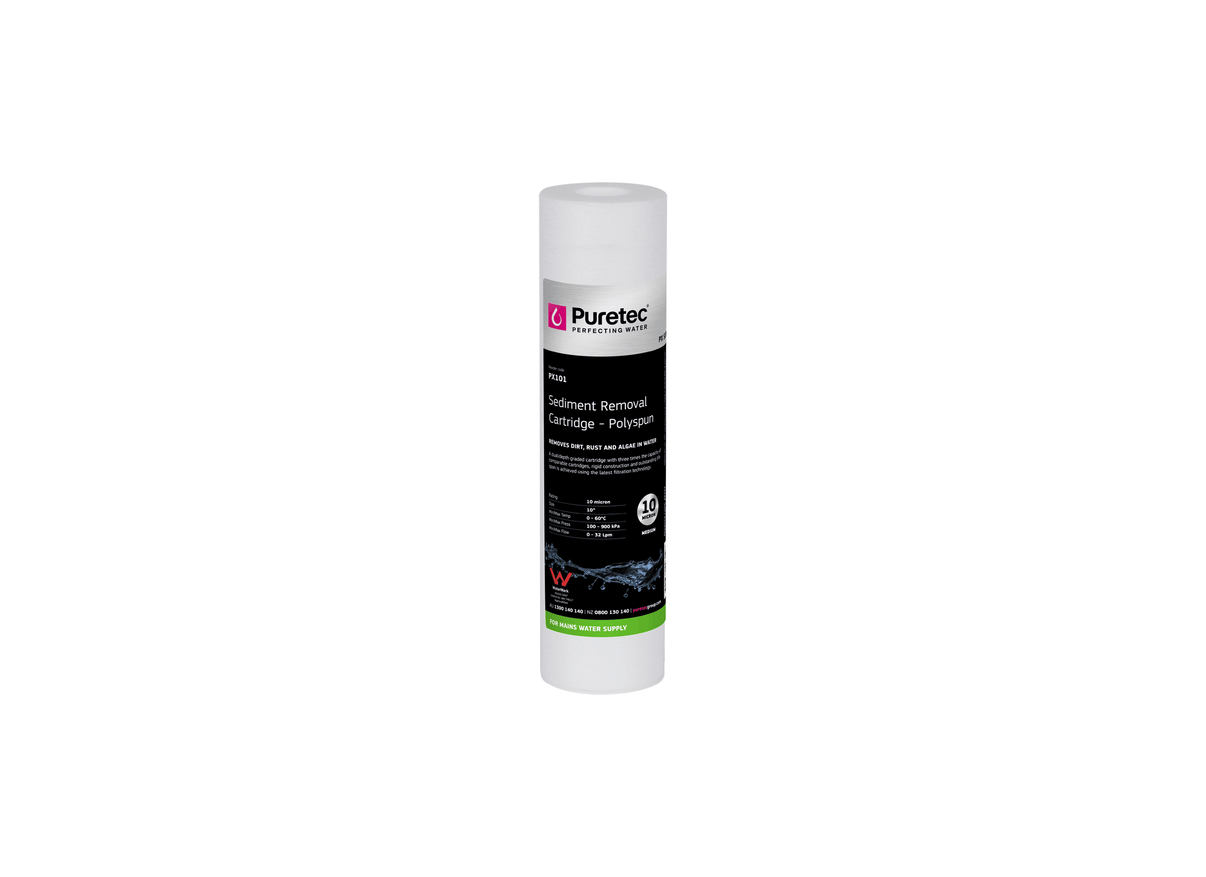

Puretec PX101 Polyspun Sediment 10 Micron 2.5" x 10" Water Filter Cartridge

Filtering medium-sized suspended solids, the Puretec PX101 polyspun sediment cartridge operates on standard domestic and light commercial plumbing ports. This inline model captures solid sand, silt, rust flakes, and clay particles from flowing water lines. It is suitable for standard filter housings, integrating with typical cold-water connection lines.

Manufactured from virgin polypropylene synthetic fibers, the filter media incorporates a spun and melted construction. This polyspun model features a coreless layout with no center core to limit hydraulic performance. Weighing approximately 0.28 kg, the unit operates in liquid temperatures from 4.4°C to 60°C.

The physical dimensions of this model measure 2.5 inches in diameter by 10 inches in length. It has a nominal rating of 10 microns for sediment filtration. The unit is rated for a maximum flow rate of 32 L/Min, providing liquid filtration with low resistance.

Through graded density depth filtration, the model provides high sediment containment without causing flow restriction. Coarser sand and rust particles are captured near the surface, while finer clay is isolated deep within the multi-layered polypropylene web. This coreless design is compatible with cold-water supply systems. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 2.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 10 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 32 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
