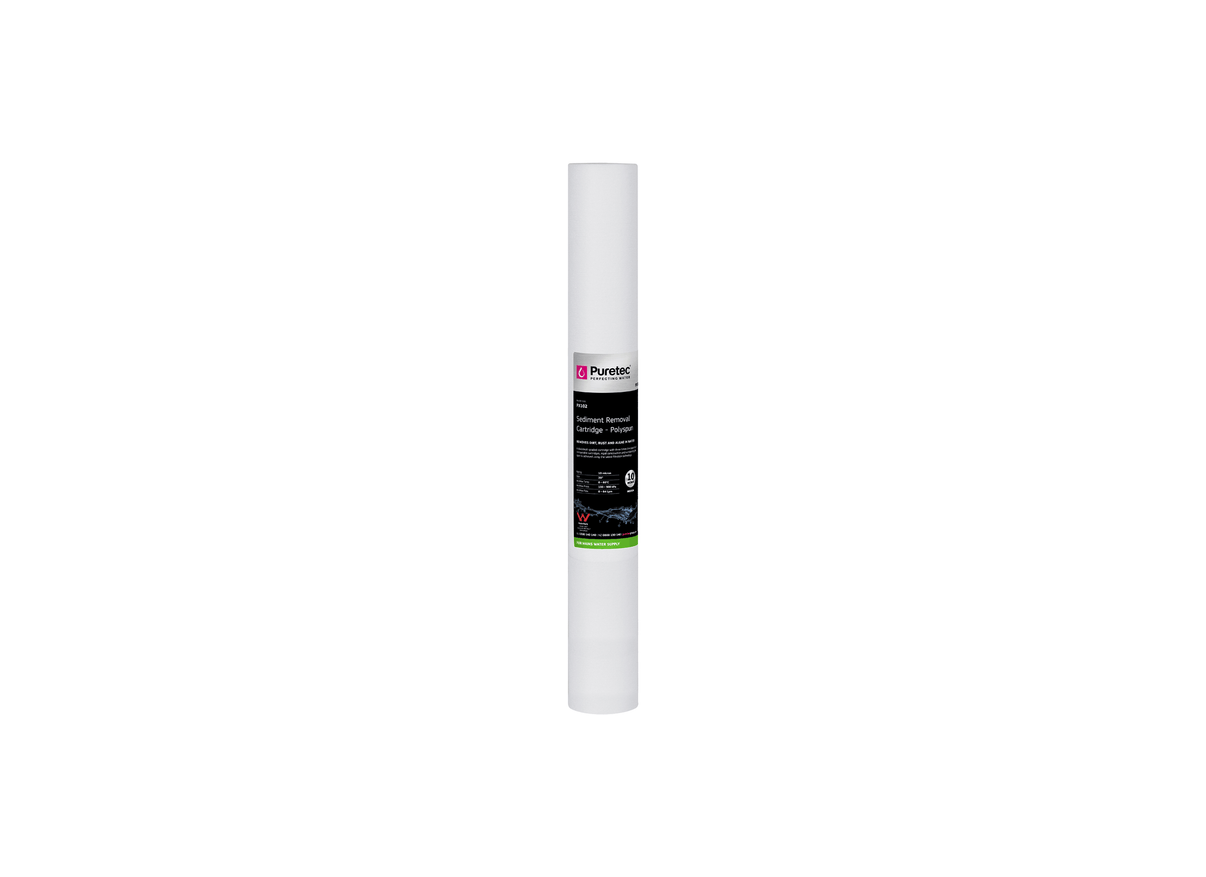

Puretec PX102 Polyspun Sediment 10 Micron 2.5" x 20" Water Filter Cartridge

For high-volume physical filtration, the long Puretec PX102 polyspun cartridge traps medium-sized particles in high-flow water supplies. This 20-inch model fits standard filter housings, working as an inline sediment interceptor for commercial or domestic ports. It integrates with large pipelines, providing high physical dirt holding.

Regarding construction, the cartridge is manufactured from raw virgin polypropylene fibers that are spun and melted simultaneously. This polyspun model incorporates a coreless structure with no central core to obstruct liquid movement. The unit weighs approximately 0.55 kg and operates in temperatures from 4.4°C to 60°C.

Measuring exactly 2.5 inches in diameter by 20 inches in length, this cartridge features a nominal rating of 10 microns. The unit is rated for a maximum flow rate of 64 L/Min, providing physical sediment filtration with minimal clean pressure drop.

The cartridge utilizes coreless depth filtration to accumulate suspended solid particles. Graded density pathways capture coarse impurities on the exterior while trapping micro-fine sediment within the inner layers. This multi-layered layout provides high dirt containment across municipal or rainwater networks. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 2.5" x 20" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 10 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 64 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
