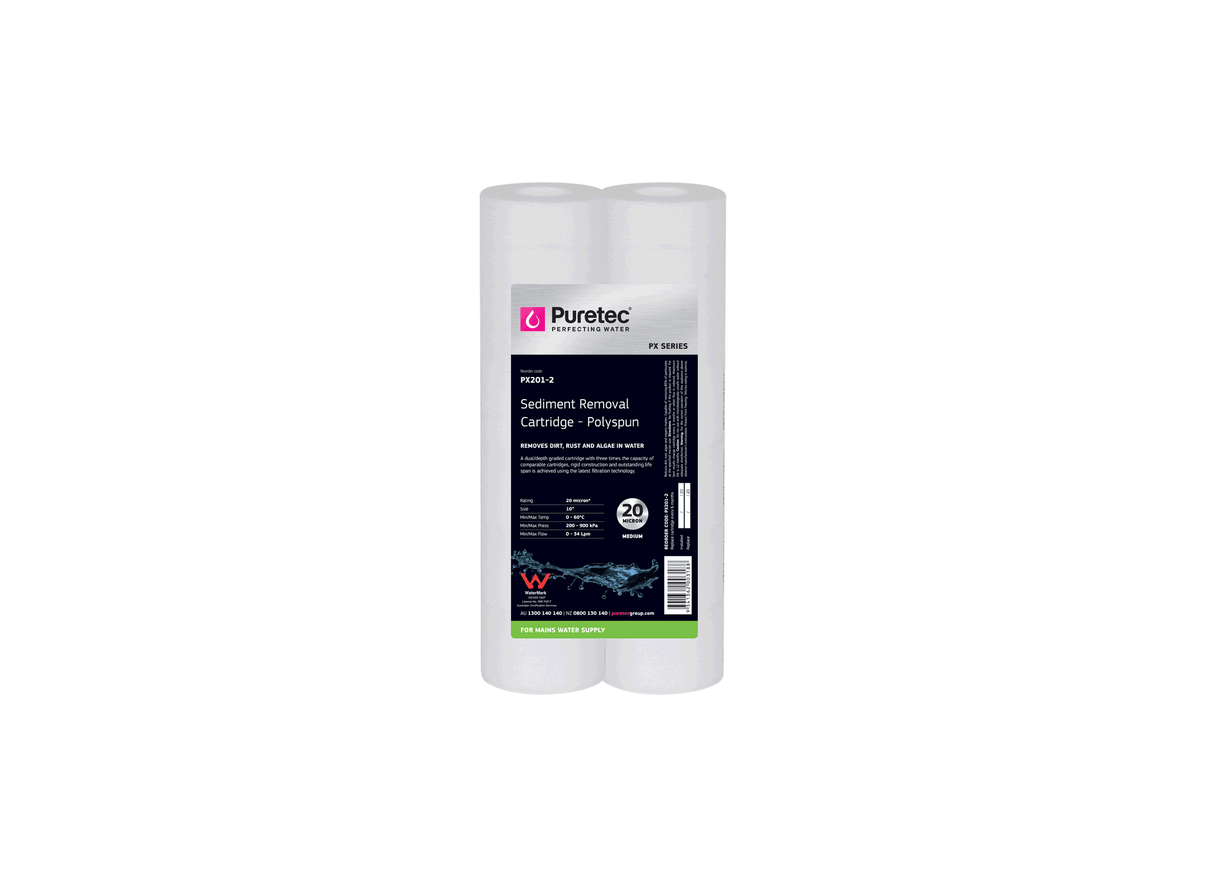

Puretec PX201-2 Polyspun Sediment Twinpack 20 Micron 2.5" x 10" Water Filter Cartridge

To handle high sediment loads, the Puretec PX201-2 polyspun sediment cartridge twin-pack provides dual physical filtration blocks. This model is specified for whole-house pre-filtration, fitting standard filter housings on domestic cold-water ports. It installs into double filter arrays, offering physical entrapment of suspended solids.

Each cartridge in this twin-pack is manufactured from virgin polypropylene media, featuring spun synthetic fibers. This polyspun model incorporates a coreless configuration with no center core to restrict incoming water velocity. The pack weighs approximately 0.55 kg and is rated for water temperatures from 4.4°C to 60°C.

These twin-pack cartridges measure 2.5 inches in diameter by 10 inches in length, with a nominal rating of 20 microns. The system achieves a maximum flow rate of 34 L/Min, providing physical sediment extraction with low resistance through standard ports.

The graded density layout performs depth filtration by isolating particulates of varying sizes throughout the multi-layered polypropylene media. Coarser debris is trapped on the outer fibers, while finer silt is captured near the core. This coreless construction provides high sediment holding and low clean pressure drop. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Convenient twin-pack contains two replacement cartridges for double inline filter systems.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 20 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 34 L/Min, providing filtration with minimal flow resistance.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
