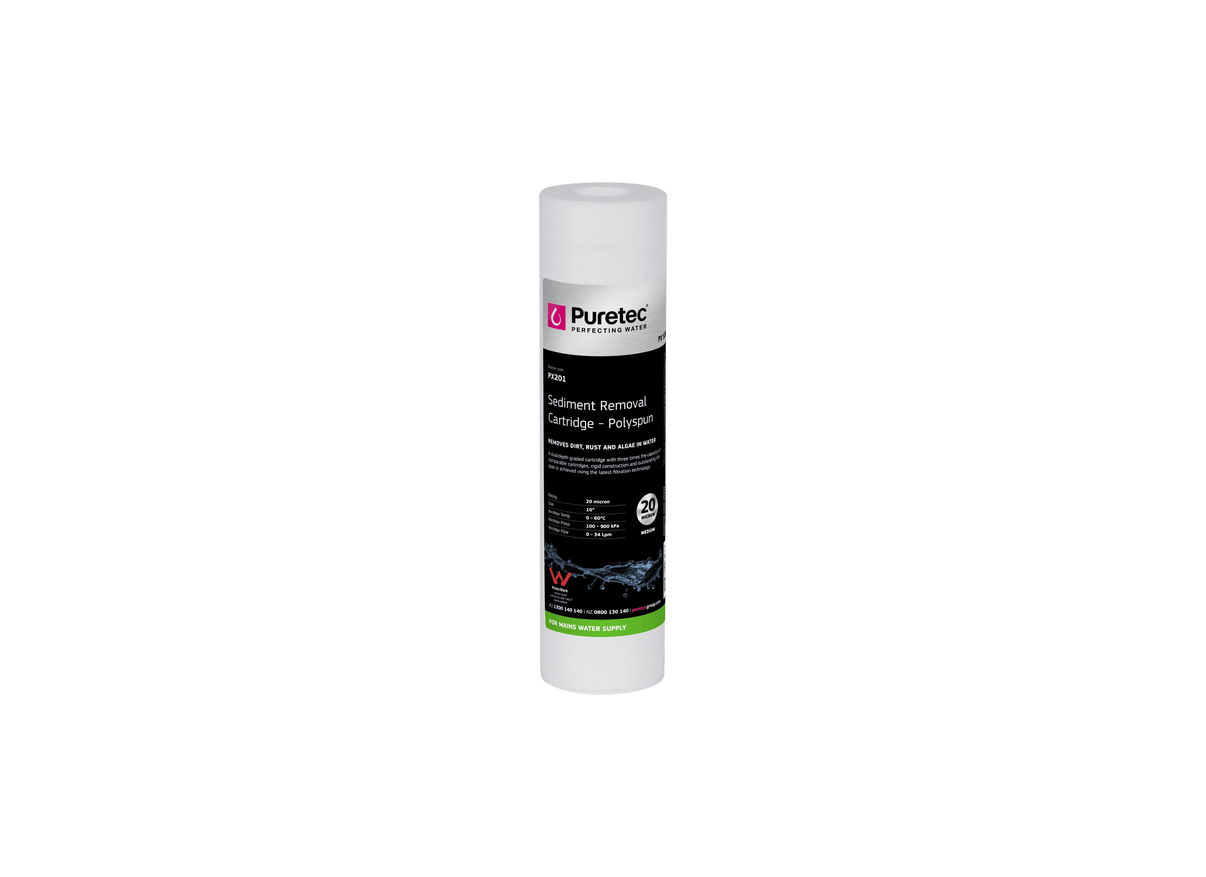

Puretec PX201 Polyspun Sediment 20 Micron 2.5" x 10" Water Filter Cartridge

The Puretec PX201 polyspun cartridge operates as a physical sediment interceptor, designed to collect raw water particulates in domestic supply loops. This model is suitable for standard filter housings, providing an inline barrier for household plumbing fixtures. Its installation connects to standard water systems to trap medium-sized suspended impurities.

This model is constructed from high-purity virgin polypropylene, featuring spun and melted fibers that form a dense filtration web. The polyspun design employs a coreless layout with no central core to impede fluid pathways. The cartridge weighs approximately 0.27 kg and is rated for temperatures from 4.4°C to 60°C.

Measuring exactly 2.5 inches in diameter by 10 inches in length, this model features a nominal rating of 20 microns. It achieves a maximum flow capacity of 34 L/Min through standard residential connections, providing sediment capture with minimal pressure loss.

The graded density layout performs depth filtration by isolating particulates of varying sizes throughout the multi-layered polypropylene media. Coarser debris is trapped on the outer fibers, while finer silt is captured near the core. This coreless construction provides high sediment holding and low clean pressure drop. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 2.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 20 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 34 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
