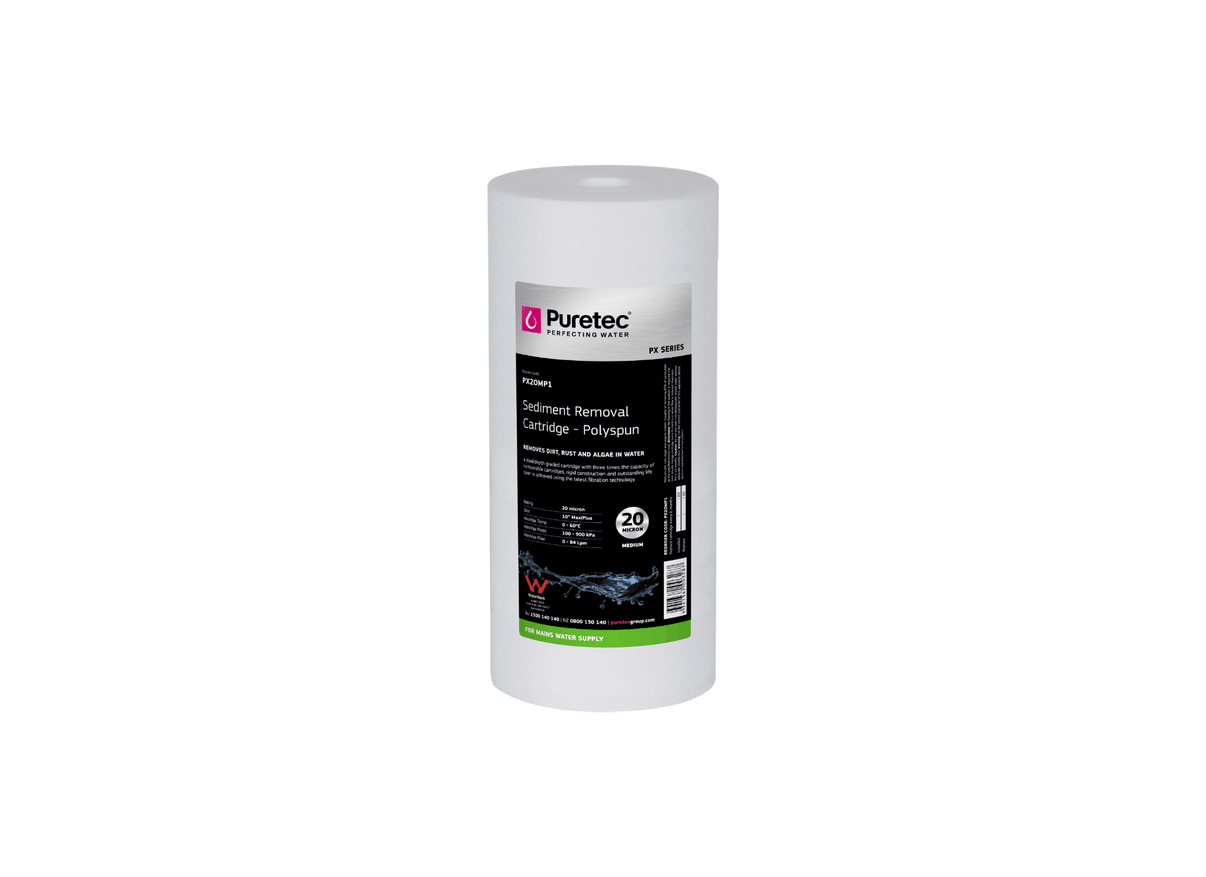

Puretec PX20MP1 Polyspun Sediment MaxiPlus 20 Micron 4.5" x 10" Water Filter Cartridge

This compact MaxiPlus cartridge measures 4.5 inches in diameter by 10 inches in length. It features a nominal rating of 20 microns for physical particulate separation. The unit achieves a maximum flow rate of 84 L/Min with low flow resistance, providing filtration on cold-water setups.

Regarding materials of construction, this cartridge is manufactured from raw virgin polypropylene with melted synthetic fibers. The polyspun media utilizes a coreless construction with no center core to restrict fluid velocity. The cartridge weighs approximately 0.62 kg and is specified for fluid temperatures from 4.4°C to 60°C.

This wide-format cartridge integrates easily into compatible MaxiPlus housings, serving as a primary sediment block. The multi-layered design provides an extensive depth filtration zone, accumulating sand, silt, rust, and clay from raw water feeds.

Depth filtration is performed by the graded density structure of each cartridge, capturing larger particulates on the exterior and finer ones near the center. This coreless multi-layered layout provides a high dirt-holding capacity. The pure polypropylene construction is compatible with standard cold-water supply networks. This model is designed for standard filtration housings without modification. The coreless depth configuration makes this filter suitable for bore water pre-filtration.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 4.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 20 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 84 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
