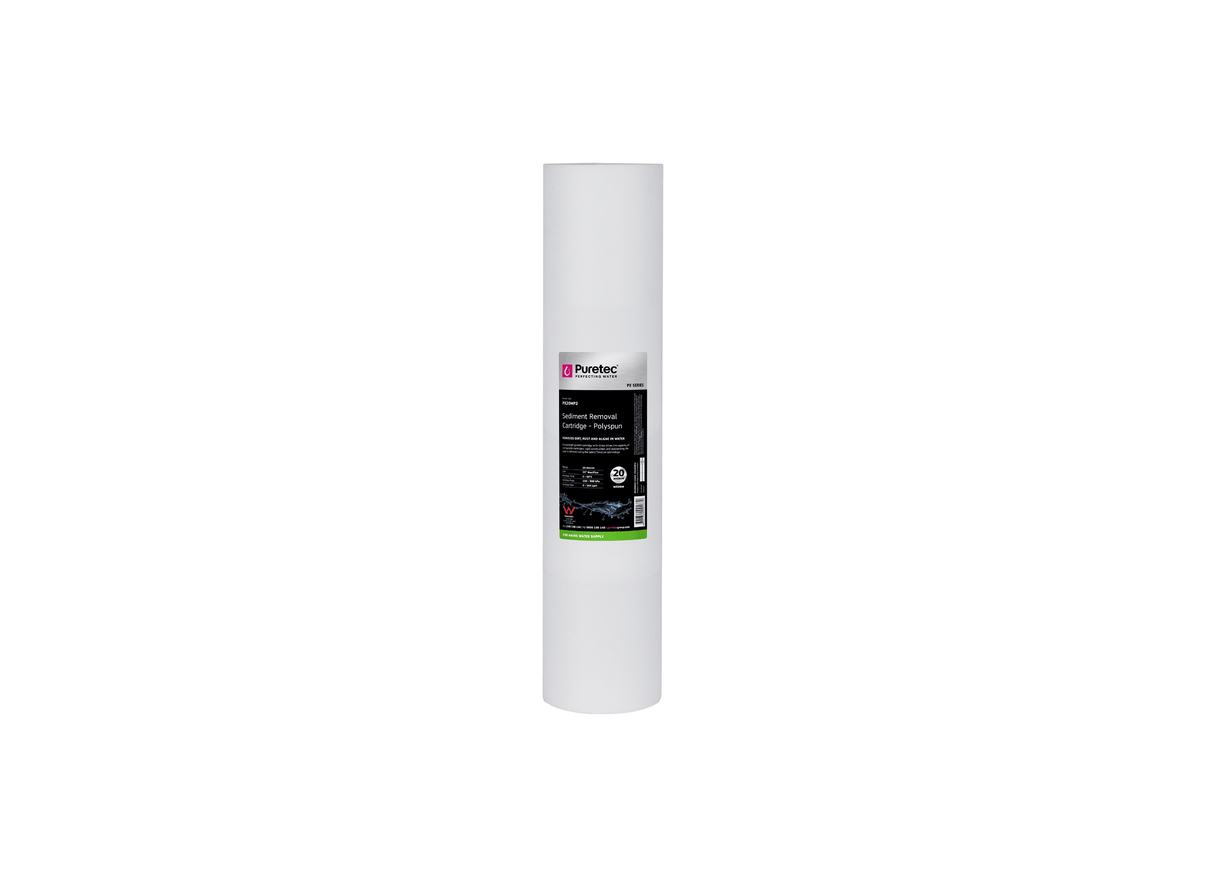

Puretec PX20MP2 Polyspun Sediment MaxiPlus 20 Micron 4.5" x 20" Water Filter Cartridge

Engineered for high-volume pipelines, the wide-format Puretec PX20MP2 polyspun cartridge captures medium-sized suspended particles. This 20-inch MaxiPlus model is suitable for MaxiPlus filter housings, providing whole-house pre-filtration in larger properties. It installs on main water manifolds, offering physical debris interception.

This model is constructed from high-purity virgin polypropylene, featuring spun and melted fibers that form a dense filtration web. The polyspun design employs a coreless layout with no central core to impede fluid pathways. The cartridge weighs approximately 1.25 kg and is rated for temperatures from 4.4°C to 60°C.

Measuring exactly 4.5 inches in diameter by 20 inches in length, this model features a nominal rating of 20 microns. It achieves a maximum flow capacity of 164 L/Min through standard residential connections, providing sediment capture with minimal pressure loss.

The graded density layout performs depth filtration by isolating particulates of varying sizes throughout the multi-layered polypropylene media. Coarser debris is trapped on the outer fibers, while finer silt is captured near the core. This coreless construction provides high sediment holding and low clean pressure drop. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 4.5" x 20" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 20 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 164 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
