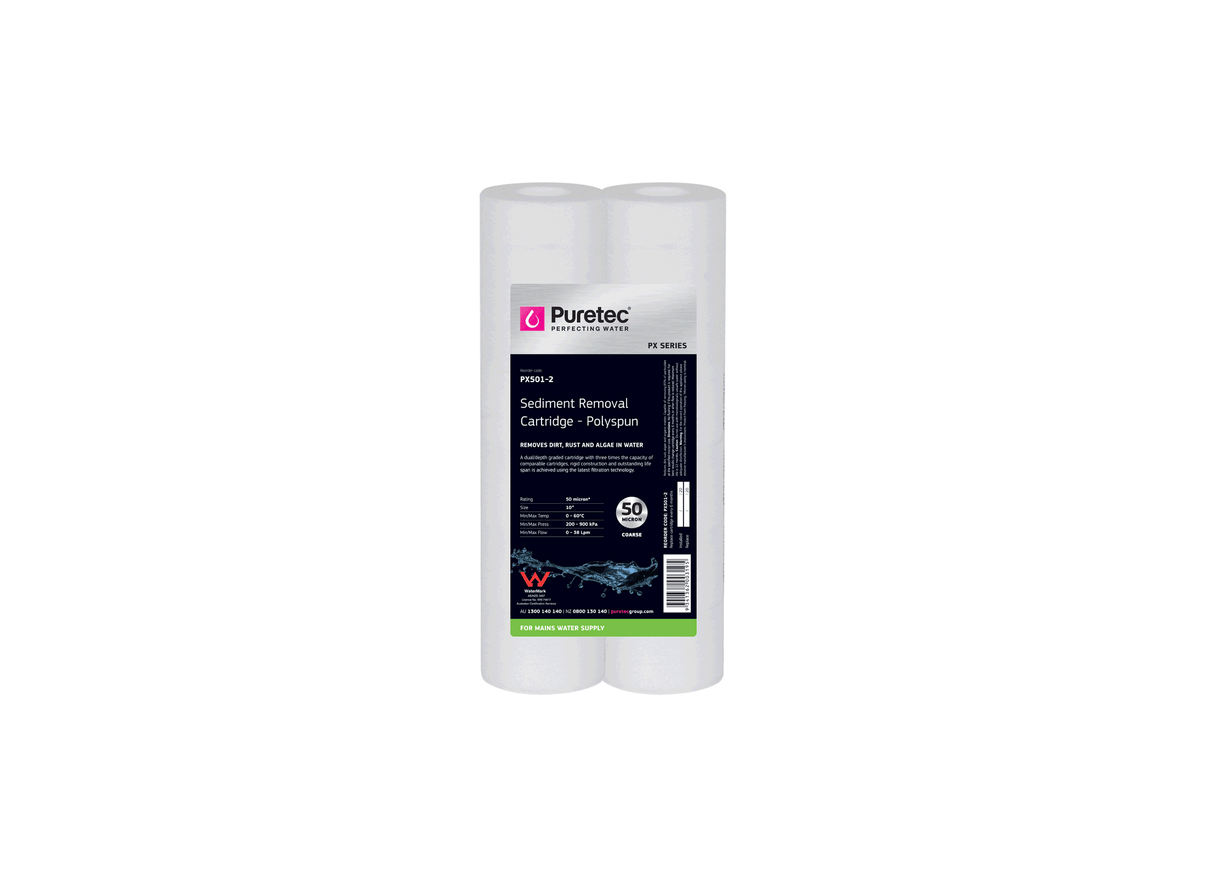

Puretec PX501-2 Polyspun Sediment Twinpack 50 Micron 2.5" x 10" Water Filter Cartridge

The Puretec PX501-2 polyspun cartridge twinpack operates as a coarse pre-filtration barrier, designed to trap large suspended water impurities. It fits standard filter housings, providing a physical barrier for subsequent fine carbon block systems. The cartridges connect to standard paired ports, working as initial sediment traps.

Manufactured from virgin polypropylene synthetic fibers, each cartridge in this twin-pack utilizes spun and melted media. The polyspun layout incorporates a coreless configuration with no center core to limit fluid pathways. The pack weighs approximately 0.56 kg and operates in temperatures from 4.4°C to 60°C.

Each cartridge in this twin-pack features dimensions of 2.5 inches in diameter by 10 inches in length. The model has a nominal rating of 50 microns for coarse sediment capture. The set operates at a maximum flow capacity of 38 L/Min through typical ports.

This twinpack utilizes depth filtration pathways, employing graded density spun polypropylene to isolate suspended solid matter. The coreless layout provides a high dirt-holding capacity, capturing coarse sand and silt on the outer fibers. This polypropylene model is compatible with bore water, rainwater, and mains supplies. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Convenient twin-pack contains two replacement cartridges for double inline filter systems.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 50 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 38 L/Min, providing filtration with minimal flow resistance.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
