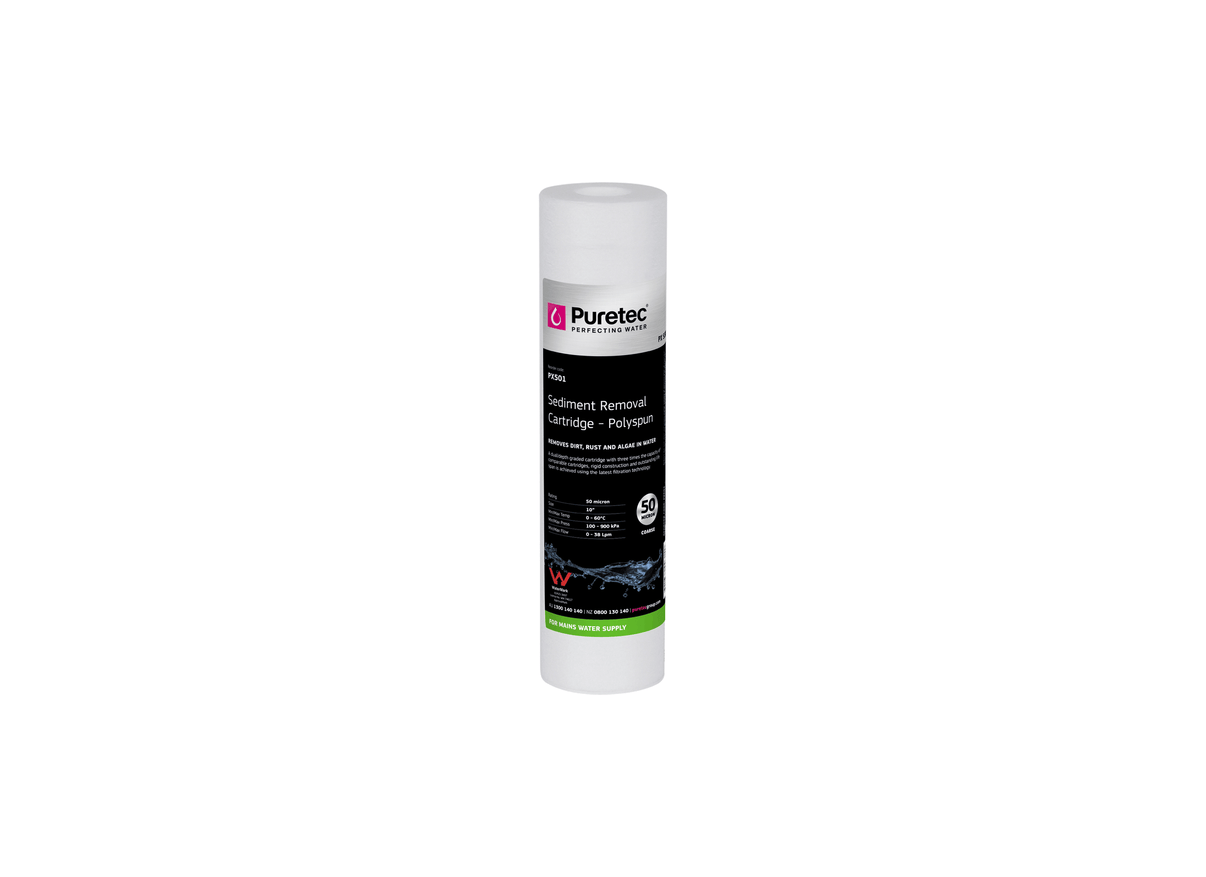

Puretec PX501 Polyspun Sediment 50 Micron 2.5" x 10" Water Filter Cartridge

For coarse particulate filtration, the Puretec PX501 sediment removal cartridge incorporates a high-capacity polyspun polypropylene layout. This cartridge is designed for high-debris water feeds, capturing large sand grains, rust, and clay sediment. It fits standard cold-water filter housings, serving as a primary physical interceptor.

Manufactured from raw virgin polypropylene media, the synthetic fibers are spun and melted simultaneously during production. This polyspun construction features a coreless design with no center core to obstruct water velocity. The unit weighs approximately 0.28 kg and is specified for temperatures from 4.4°C to 60°C.

This model features standard dimensions of 2.5 inches in diameter by 10 inches in length. It has a nominal rating of 50 microns for coarse particulate extraction. The cartridge achieves a maximum flow rate of 38 L/Min, operating with low clean pressure drop.

This model utilizes depth filtration pathways, employing graded density spun polypropylene to isolate suspended solid matter. The coreless layout provides a high dirt-holding capacity, capturing coarse sand and silt on the outer fibers. This polypropylene model is compatible with bore water, rainwater, and mains supplies. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 2.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 50 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 38 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
