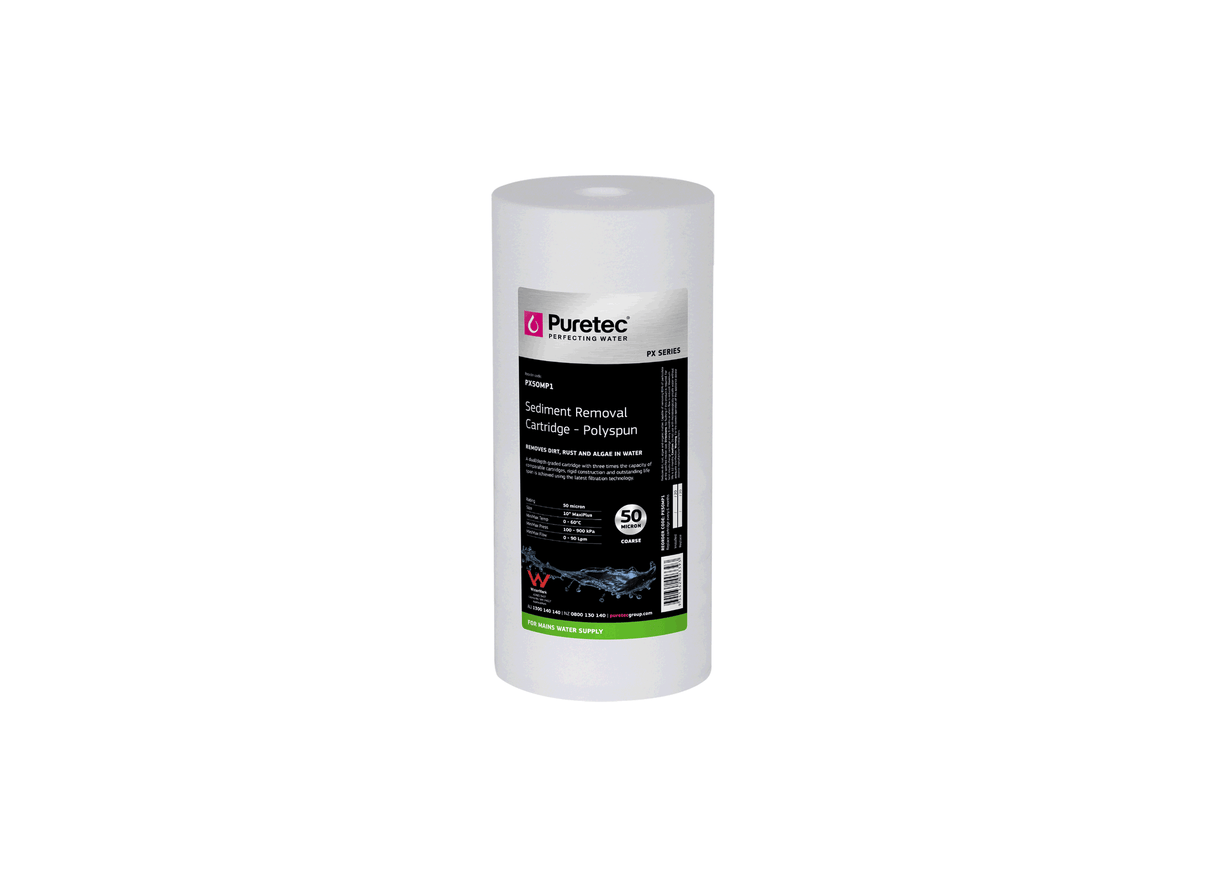

Puretec PX50MP1 Polyspun Sediment MaxiPlus 50 Micron 4.5" x 10" Water Filter Cartridge

With physical measurements of 4.5 inches in diameter by 10 inches in length, the cartridge has a nominal rating of 50 microns. It achieves a maximum flow rate of 90 L/Min through standard cold-water pipelines, providing coarse particulate isolation with low pressure drop.

Constructed from pure virgin polypropylene, the filter media features spun and melted fibers forming a self-braced structure. The polyspun layout uses a coreless design with no central core to restrict water flow. The unit weighs approximately 0.63 kg and is rated for operating temperatures ranging from 4.4°C to 60°C.

Designed to fit MaxiPlus housings, this wide-body filter functions as an initial physical barrier against larger particulates. The coreless polyspun layout provides deep channels that capture suspended solids without causing excessive restriction to flow.

The cartridges utilize coreless depth filtration to accumulate suspended solid particles. Graded density pathways capture coarse impurities on the exterior while trapping micro-fine sediment within the inner layers. This multi-layered layout provides high dirt containment across municipal or rainwater networks. This model is designed for standard filtration housings without modification. The self-braced structure handles raw water streams cleanly, serving as a primary pre-filtration block on high-flow setups.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 4.5" x 10" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 50 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 90 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
