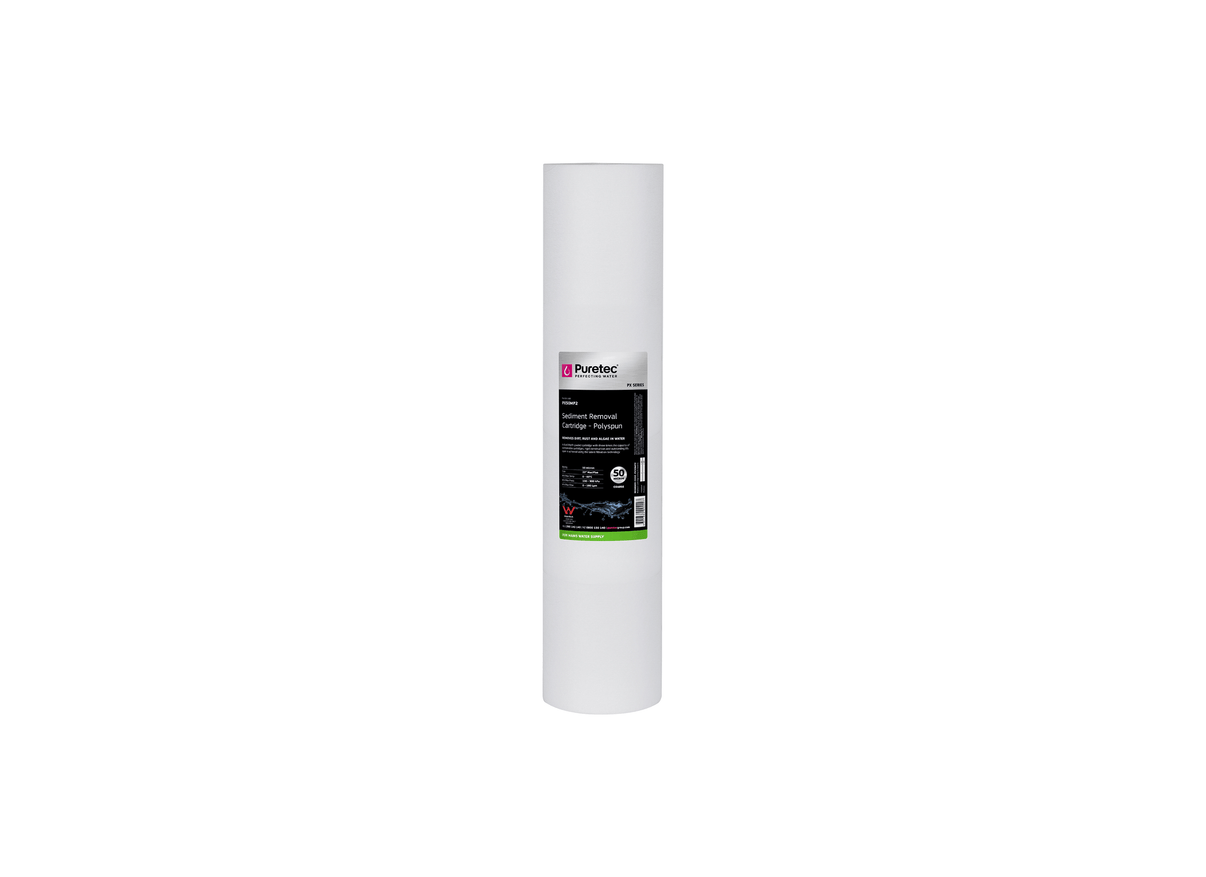

Puretec PX50MP2 Polyspun Sediment MaxiPlus 50 Micron 4.5" x 20" Water Filter Cartridge

Filtering coarse particulate matter at peak flow rates, the Puretec PX50MP2 polyspun cartridge features an extended MaxiPlus layout. This 20-inch model fits MaxiPlus filter housings, working as a primary pre-filter on commercial or agricultural ports. Its installation connects to main water pipelines, providing physical screening.

Manufactured from raw virgin polypropylene media, the synthetic fibers are spun and melted simultaneously during production. This polyspun construction features a coreless design with no center core to obstruct water velocity. The unit weighs approximately 1.26 kg and is specified for temperatures from 4.4°C to 60°C.

This model features standard dimensions of 4.5 inches in diameter by 20 inches in length. It has a nominal rating of 50 microns for coarse particulate extraction. The cartridge achieves a maximum flow rate of 180 L/Min, operating with low clean pressure drop.

This model utilizes depth filtration pathways, employing graded density spun polypropylene to isolate suspended solid matter. The coreless layout provides a high dirt-holding capacity, capturing coarse sand and silt on the outer fibers. This polypropylene model is compatible with bore water, rainwater, and mains supplies. This model is designed for standard filtration housings without modification.

• Spun polypropylene construction utilizing synthetic fibers melted simultaneously for media longevity.
• Coreless depth filtration configuration utilizes a graded density design to collect solid particles.
• Specifically designed for standard water filter housings compatible with 4.5" x 20" replacement units.
• Filters suspended sand, silt, rust, and clay, serving as a primary inline physical pre-filter.
• Nominal filtration rating specified at 50 Micron to capture raw water particulates in cold-water lines.
• Operates at maximum flow capacity of 180 L/Min, providing liquid filtration with minimal flow loss.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for bore water supplies.
