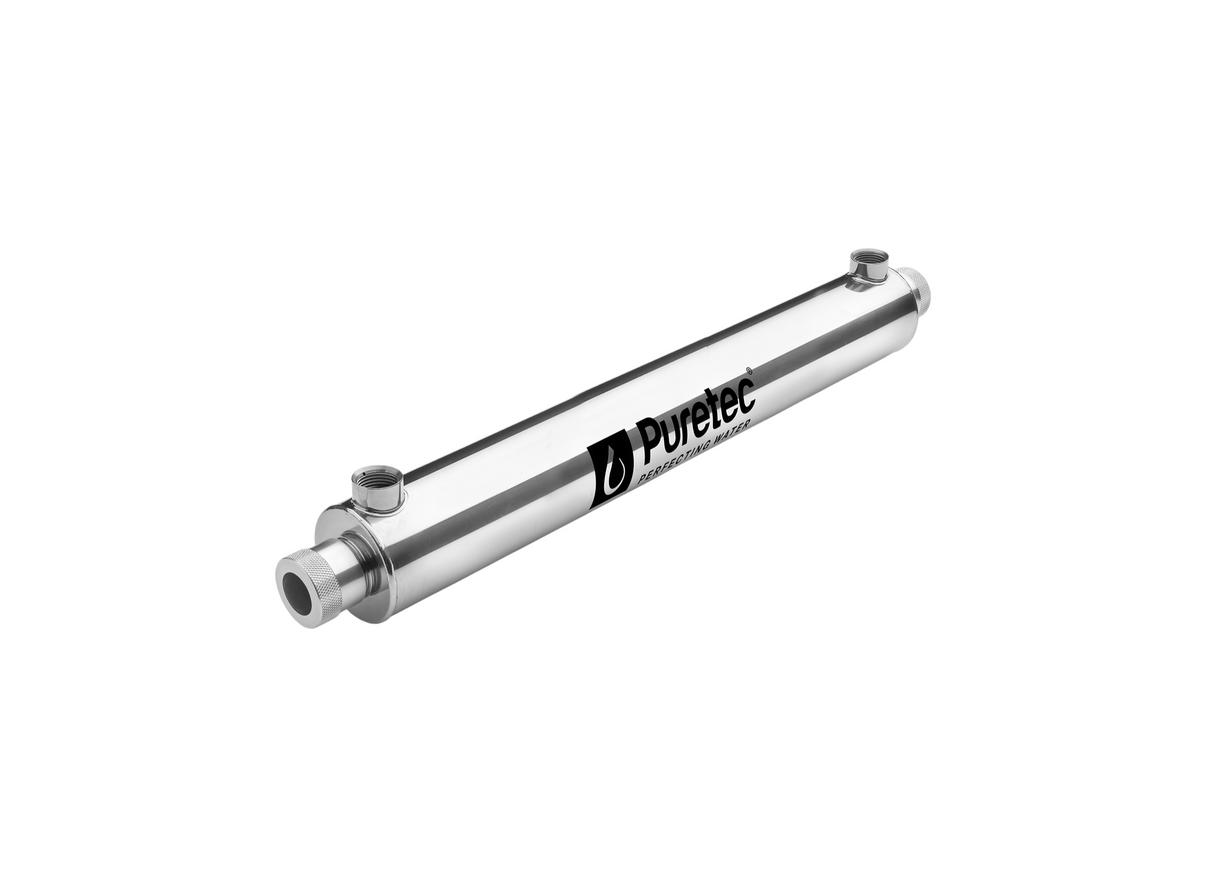

Puretec Radfire R1400 24W Ultraviolet Water Treatment System

Environmental demands in residential water loops often involve microbial contamination risks from untreated rainwater, boreholes, or municipal supplies, which the R1400 Radfire series addresses through high-intensity ultraviolet irradiation. This system is specified for point-of-entry applications where waterborne pathogens require neutralization without chemical intervention. The reactor supports versatile orientation, allowing for vertical or horizontal mounting to accommodate specific plant room or pump shed configurations.

Technical performance is centered on a high-output ultraviolet lamp rated at 24W, providing a focused UV-C dose to the passing water stream. The system achieves a maximum flow of 23 Lpm when operated at a 30mJ/cm2 dosage level, or up to 28 Lpm at 16mJ/cm2. Electrical requirements include a standard 240v 50/60Hz supply, with the unit drawing a nominal current of 0.17 Amps and a maximum power consumption of 28W. Hydraulic connections are 1/2" to facilitate integration with standard residential reticulation pipework.

Constructed from 304 Stainless Steel, the polished reactor chamber houses a high-purity quartz sleeve. The R1400 is designed to operate in ambient temperatures ranging from 0 to 50 degrees Celsius. It handles water with a maximum hardness of 120 mg/L and iron levels up to 0.3 mg/L. The system features a unique water chamber design.

Operational status is monitored through an integrated LED indicator and an audible alarm that provides immediate notification of lamp failure or system faults. The high-output lamp is specified for an 8,760 hour service life. Maintenance access is provided through a tool-free design for rapid lamp changes and quartz sleeve cleaning. A water-resistant power supply houses the electronic ballast to protect the internal circuitry from environmental moisture. The reactor is rated for a maximum operating pressure of 800 kPa.

FEATURES

• High-purity quartz sleeve assembly provides high UV-C transmission
• Integrated 240v electronic ballast housed in a moisture-resistant protective enclosure
• Polished 304 Stainless Steel reactor chamber measuring 64 mm in diameter
• Audible fault alarm provides immediate notification of ultraviolet lamp failure
• Vertical or horizontal installation capability for flexible plumbing integration
• Low-pressure high-output lamp technology with 8,760 hour rated service life
• Tool-free service design allows for quick annual lamp and sleeve maintenance

Warranty: 2 year warranty is provided on the chamber and power supply, excluding consumable lamps and quartz sleeves.
