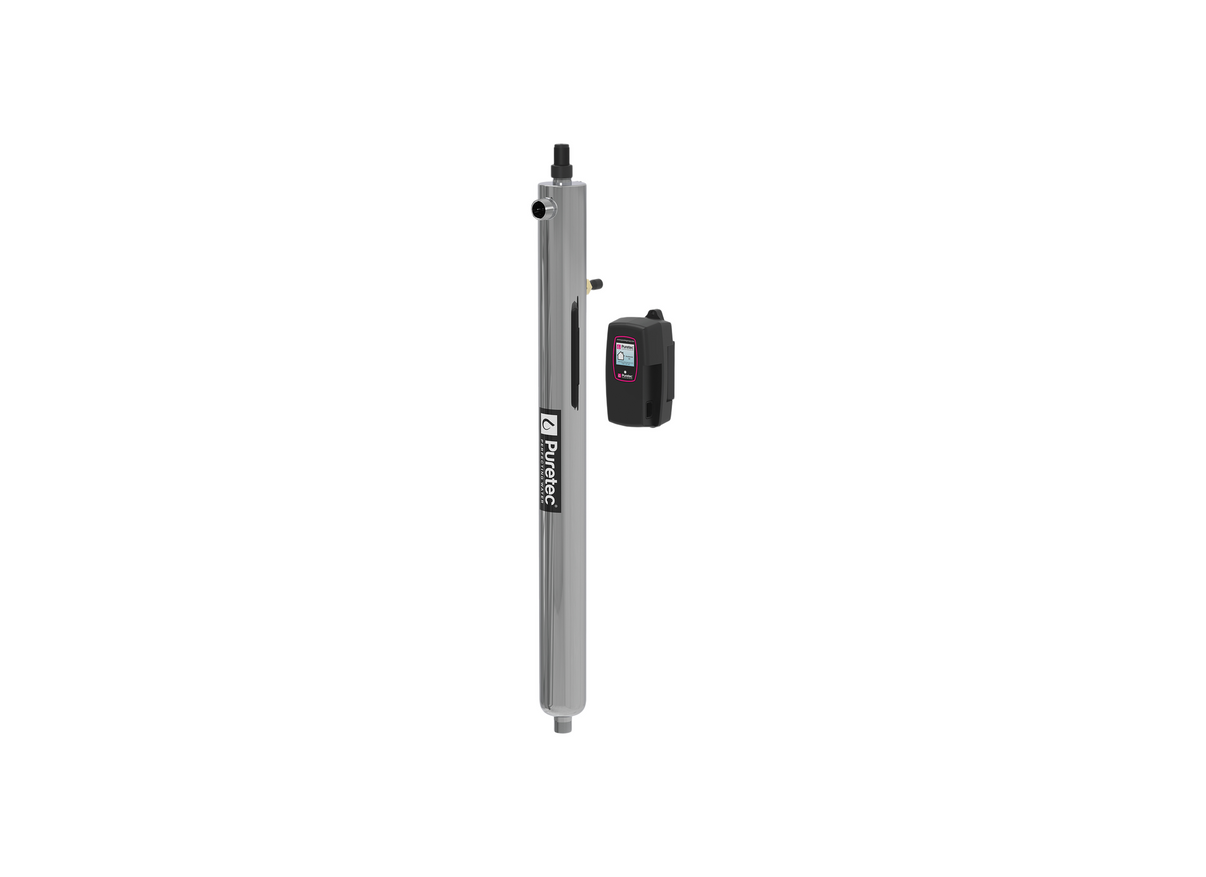

Puretec Radfire RI-17K Commercial Ultraviolet Water Treatment System

The RI-17K Radfire is configured for large-scale industrial and municipal water disinfection at high flow rates. This system utilizes high-intensity UV-C radiation to neutralize bacteria, viruses, and protozoa without the addition of chemicals. It is suitable for large commercial complexes, agricultural systems, and industrial process loops. The axial flow design ensures the water travels the entire length of the lamp for consistent disinfection across its rated capacity.

Performance specifications include a maximum flow rate of 151 Lpm at a 30mJ/cm2 dosage, or up to 295 Lpm at a 16mJ/cm2 rating. The system is managed by the RI-CON2 controller, which operates on a universal 90-265V 50/60Hz power supply. Plumbing connections are 1-1/2" MNPT to support large-diameter commercial pipework. The reactor is rated for a maximum operating pressure of 1030 kPa and requires a minimum clearance of 1400 mm for lamp replacement. The system maintains performance in liquids with temperatures between 2 and 40 degrees Celsius.

The polished internal surfaces of the 316L Stainless Steel reactor reflect ultraviolet light back into the treatment zone. This model can support high-temperature applications up to 70 degrees Celsius when utilizing an optional hot water lamp configuration. The RI-17K weighs 9.7 kg and includes an integral sensor port for field-upgradable monitoring. TDS around 500 ppm can significantly reduce rated flow, and proper pretreatment should be considered.

Operational diagnostics are provided through a colour user interface that monitors lamp life and displays warning messages. The high-output ultraviolet lamp has a rated service life of 10,000 hours. The controller features an expandability port for the integration of UV sensors, solenoid valves, or temperature management valves. Service is facilitated by a quartz thimble design and a secure quick-connect lamp plug for efficient maintenance. This system handles water with hardness up to 110 mg/L and manganese below 0.05 mg/L.

FEATURES

• 1-1/2" MNPT inlet and outlet ports for high-capacity industrial flow rates
• 316L Stainless Steel axial flow reactor with a polished internal finish
• Colour diagnostic user interface providing real-time system status and warnings
• 10,000 hour rated high-output lamp service life
• Expandability port for optional sensor and control module integration
• Splash-proof electronic controller for professional industrial protection
• Integral sensor port for future field-upgradable ultraviolet monitoring

Warranty: 2 year warranty is 1 year parts and labour, plus 1 year parts only, excluding lamps and sleeves.
