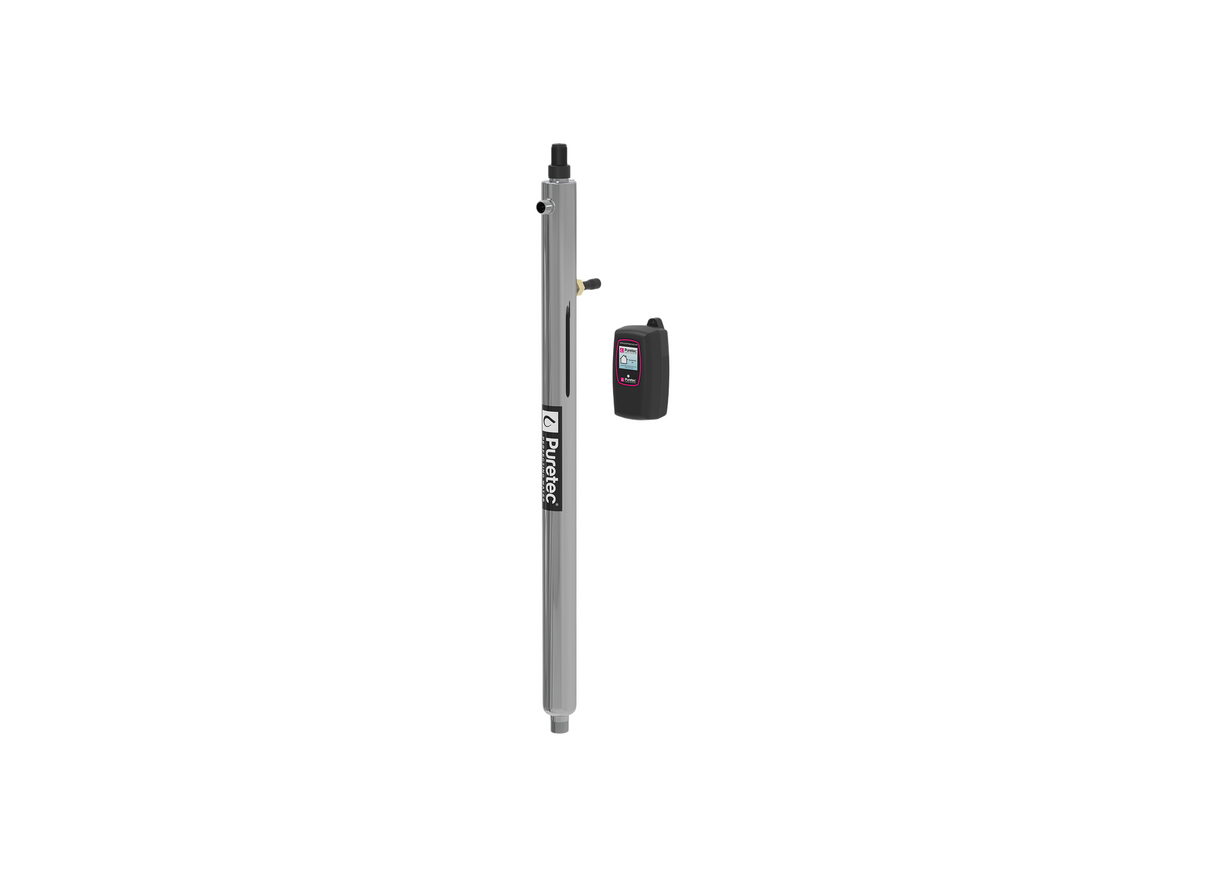

Puretec Radfire RI-6K Commercial Ultraviolet Water Treatment System

Commercial water treatment facilities encounter specific operational load challenges that the RI-6K Radfire series addresses with an ultraviolet disinfection system featuring diagnostic monitoring and high-intensity microbial control. This model is specified for light industrial and professional environments. It utilizes an axial flow reactor design that allows for consistent fluid exposure to UV-C radiation as water passes through the system. The unit is suitable for treating municipal, rainwater, or process water without the introduction of chemical additives or residuals.

Performance metrics for the RI-6K include a maximum flow rate of 57 Lpm at a 30mJ/cm2 dosage, or 114 Lpm at a 16mJ/cm2 rating. The system is controlled by a constant current electronic power source that operates on a universal 90-265V 50/60Hz supply. The electronic ballast is housed in a splash-proof case and includes an expandability port for optional sensor or solenoid upgrades. Inlet and outlet connections are 1" MNPT for industrial plumbing integration. The system is rated for a maximum operating pressure of 1030 kPa.

The reactor is constructed from 304 Stainless Steel with a polished internal finish. It features an integral sensor port that allows for field-upgradable UV monitoring in the future. The unit operates in liquid temperatures between 2 and 40 degrees Celsius and requires pre-filtration to 5 microns to prevent suspended solids from shielding microorganisms. The axial flow reactor is 1016 mm in length.

Monitoring and diagnostics are provided through a colour user interface that displays real-time system status and warnings. The high-output ultraviolet lamp is specified for a 9,000 hour service life, providing extended operation between maintenance intervals. The unit utilizes a quartz thimble design and a quick-connect lamp plug to facilitate rapid service procedures without specialized tools. This model handles water with hardness up to 110 mg/L and manganese levels below 0.05 mg/L. The RI-6K weighs 6.5 kg and is designed for indoor installation only.

FEATURES

• Colour user interface with integrated system diagnostics and warning messages
• 304 Stainless Steel axial flow reactor with a polished internal finish
• Expandability port for modular sensor and solenoid valve upgrades
• 9,000 hour rated high-output lamp for extended commercial service cycles
• Splash-proof electronic controller for protection in industrial environments
• 1" MNPT inlet and outlet connections for commercial pipework integration
• Integral sensor port for future field-upgradable ultraviolet monitoring

Warranty: 2 year warranty is 1 year parts and labour, plus 1 year parts only, excluding lamps and sleeves.
