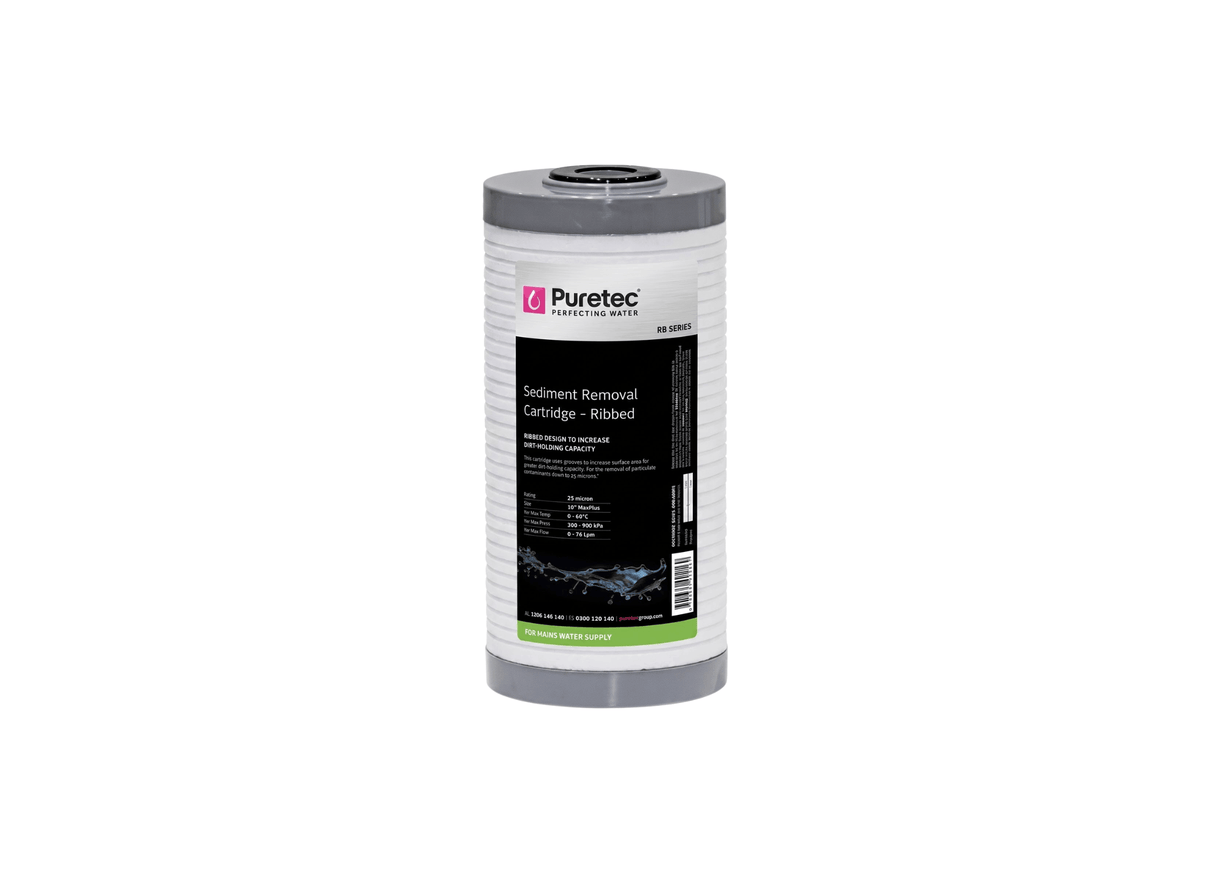

Puretec RB25MP1 Ribbed Sediment MaxiPlus 25 Micron 4.5" x 10" Water Filter Cartridge

Specifically designed for MaxiPlus housings, the wide-format Puretec RB25MP1 ribbed cartridge isolates medium-sized suspended solids. This cartridge is suitable for agricultural, commercial, and domestic high-flow pre-filtration loops. It connects directly to high-volume water mains, performing physical particle entrapment.

Manufactured from high-strength polypropylene media, this wide-body cartridge utilizes deep outer grooved channels. This ribbed design provides a large physical surface area to hold raw water sediment. The cartridge weighs approximately 0.64 kg and is rated for operating temperatures from 0°C to 60°C.

With physical measurements of 4.5 inches in diameter by 10 inches in length, the cartridge has a nominal rating of 25 microns. It achieves a maximum flow rate of 85 L/Min, specified for working pressures from 100 to 900 kPa on standard water mains.

This grooved cartridge utilizes a graded density ribbed design, allowing physical filtration across multiple surface levels. Coarser sediment is isolated within the outer ribbed channels, while finer particles are trapped deep inside the media. This ribbed configuration provides a high dirt-holding capacity and low flow resistance. This model is designed for standard filtration housings without modification.

• Ribbed outer configuration utilizes deep physical grooves to maximize available filtration surface.
• Graded density polypropylene structure captures coarser particles on the outside and fine ones inside.
• Specifically designed for standard water filter housings compatible with 4.5" x 10" replacement units.
• Reduces suspended dirt, rust, algae, and organic matter from domestic or commercial water lines.
• Nominal filtration rating specified at 25 Micron to isolate raw water particulates in cold-water supplies.
• Operates at a maximum flow rate of 85 L/Min, providing physical filtration with low pressure drop.
• Withstands water temperatures up to 60°C (140°F) and operates within a pressure of 100 to 900 kPa.
