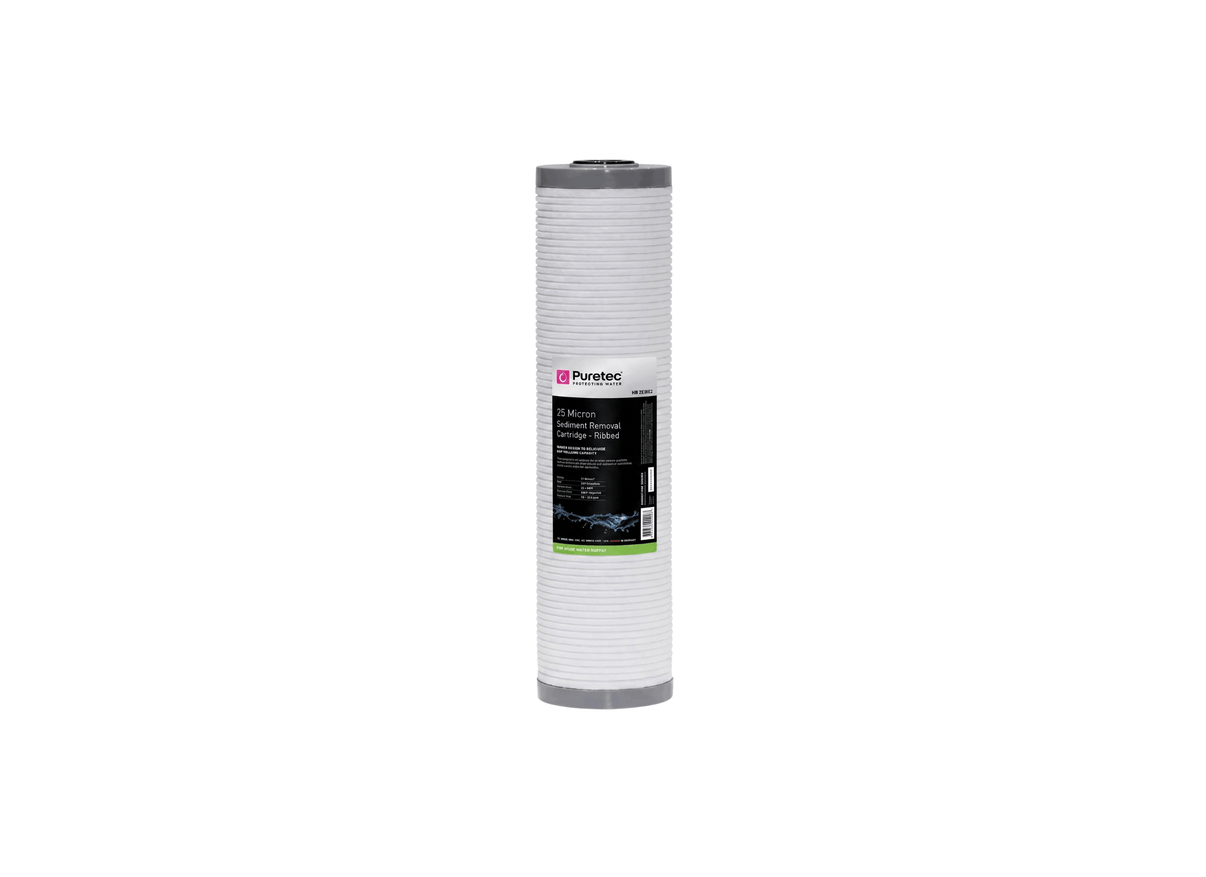

Puretec RB25MP2 Ribbed Sediment MaxiPlus 25 Micron 4.5" x 20" Water Filter Cartridge

Engineered for high-volume pipelines, the wide-format Puretec RB25MP2 ribbed cartridge captures medium-sized suspended particles. This 20-inch MaxiPlus model is suitable for MaxiPlus filter housings, providing whole-house pre-filtration in larger properties. It installs on main water manifolds, offering physical debris interception.

This model is constructed from raw polypropylene media, featuring a ribbed design with deep outer grooved channels. This grooved configuration provides a large physical surface area to capture solid particulates. The cartridge weighs approximately 1.28 kg and operates in water temperatures from 0°C to 60°C.

Measuring exactly 4.5 inches in diameter by 20 inches in length, this model features a nominal rating of 25 microns. It achieves a maximum flow capacity of 166 L/Min under pressures from 100 to 900 kPa, providing high-capacity sediment capture.

Straining is performed by the grooved ribbed design, utilizing a graded density polypropylene structure to trap suspended solids. Coarser sand and rust are isolated within the outer grooves, while finer sediment is captured deep inside the multi-surface media. This ribbed configuration provides a high dirt-holding capacity. This model is designed for standard filtration housings without modification.

• Ribbed outer configuration utilizes deep physical grooves to maximize available filtration surface.
• Graded density polypropylene structure captures coarser particles on the outside and fine ones inside.
• Specifically designed for standard water filter housings compatible with 4.5" x 20" replacement units.
• Reduces suspended dirt, rust, algae, and organic matter from domestic or commercial water lines.
• Nominal filtration rating specified at 25 Micron to isolate raw water particulates in cold-water supplies.
• Operates at a maximum flow rate of 166 L/Min, providing physical filtration with low pressure drop.
• Withstands water temperatures up to 60°C (140°F) and operates within a pressure of 100 to 900 kPa.
