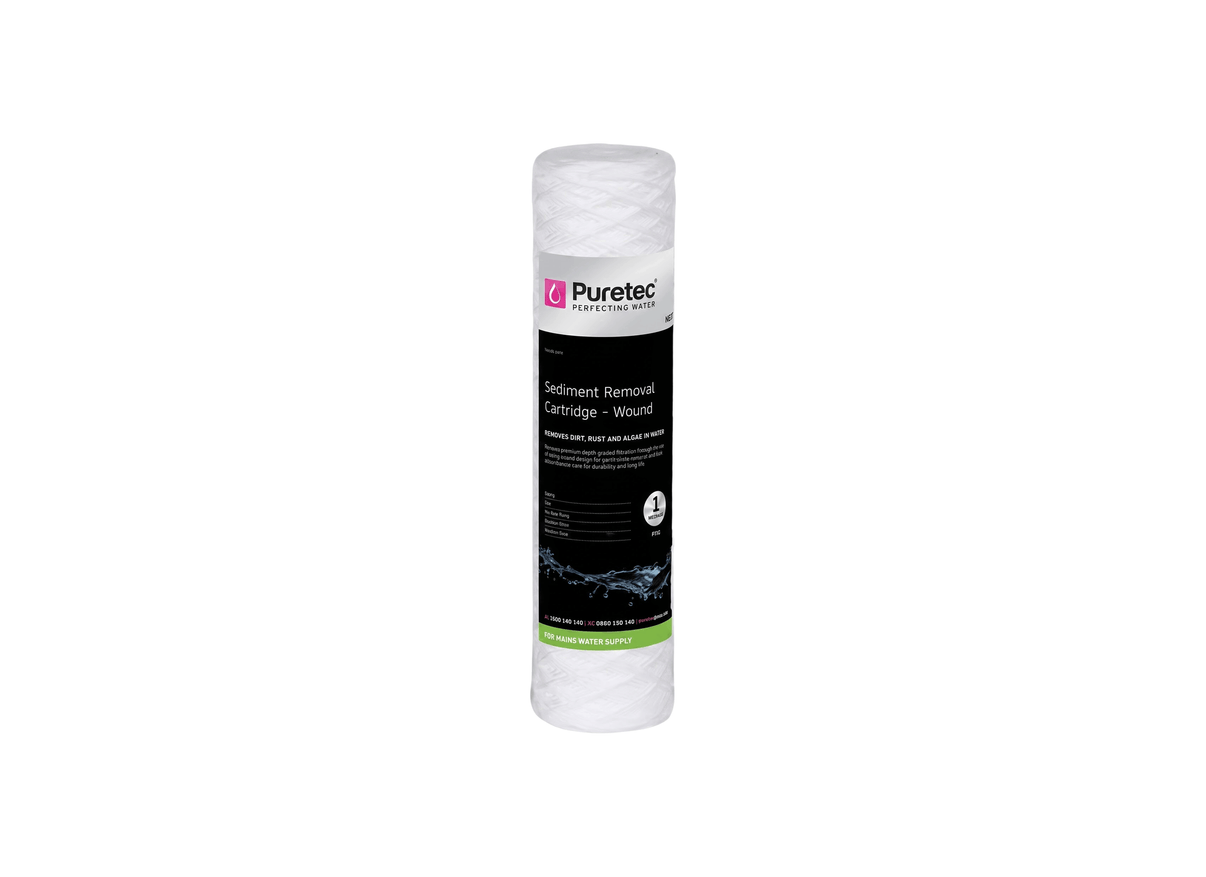

Puretec WD011-H Hot Water Wound Sediment 1 Micron 2.5" x 10" Replacement Cartridge

High-temperature sediment reduction is established with the WD011-H specialty wound sediment cartridge, designed to withstand extreme thermal environments within 10 inch housings. It is suitable for hot water models where the capture of fine physical particulate is required for fluid clarification. This specialty cartridge functions as a fine sediment barrier for water above 74 degrees Celsius.

Rated for a nominal flow capacity of 26 L/min, the unit maintains performance with minimal pressure drop. The 1 micron rating targets fine suspended solids while accommodating system throughput in high-thermal operational environments. True depth filtration is achieved through a string-wound design that uses cotton material to manage thermal loading.

Measuring standard 2.5 inches in diameter and 10 inches in length, the cartridge features a 304 stainless steel core for thermal resistance. It is capable of withstanding extreme temperatures reaching up to 149 degrees Celsius for specialty use. This architecture reduces rust, silt, sand, and scale particles by trapping them throughout the media thickness.

Features

• Manufactured from cotton material to withstand temperatures up to 149 degrees Celsius.
• Includes a 304 stainless steel core for thermal resistance and mechanical support.
• Rated for a 1 micron nominal level for fine suspended particulate removal.
• String-wound design achieves true depth filtration across the media matrix.
• Operates with minimal pressure drop to maintain system hydraulic throughput.
• Features standard 2.5 x 10 inch dimensions for fitment.
• Suitable for hot water models above 74 degrees Celsius and diverse fluids.
• Provides minimal fiber migration for clarified high-temperature output.
