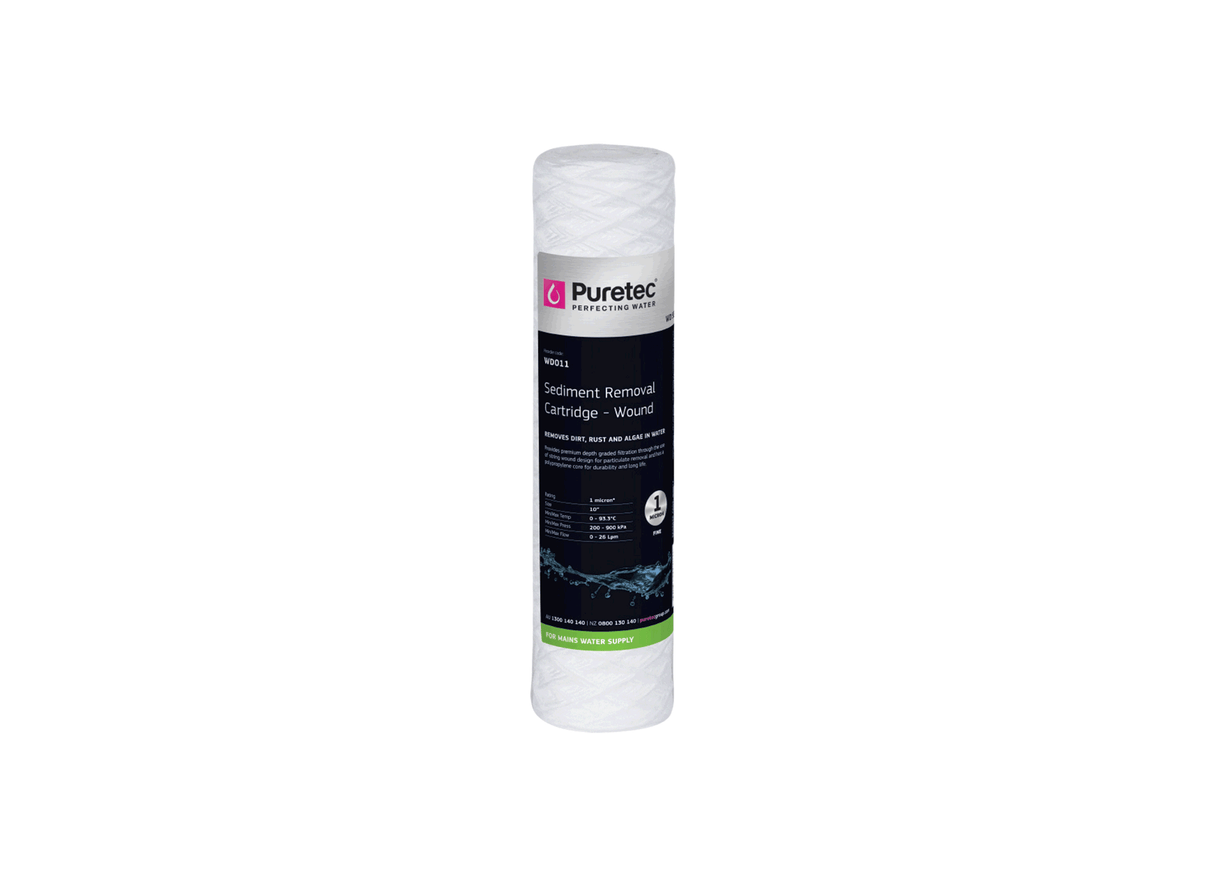

Puretec WD011 Wound Sediment 1 Micron 2.5" x 10" Replacement Cartridge

Fine sediment reduction is established with the WD011 wound sediment cartridge, which utilizes a 1 micron rating to manage microscopic particles in fluid streams. It is suitable for applications involving bore water, mains water supply, and various industrial fluids. The unit is used within 10 inch housings and is identified for cyst reduction.

Rated for a nominal flow capacity of 26 L/Min, this model handles system pressures between 100 and 900 kPa. Precisely wound construction enables depth filtration, creating a complex matrix that traps contaminants throughout the media. This design facilitates the reduction of rust, scale, silt, and sand particles from the incoming supply.

Measuring 2.5 inches in diameter and 10 inches in length, the cartridge is specified for liquid temperatures up to 50 degrees Celsius. The wound pattern provides high dirt-holding capacity by maximizing the available volume for sediment loading.

Features

• Rated for a 1 micron nominal level to capture fine suspended contaminants.
• Identified for cyst reduction to improve the quality of water supplies.
• Precisely wound construction facilitates depth filtration throughout the fiber media.
• Achieves high dirt-holding capacity through a graded density wound matrix.
• Fits standard 10 inch housings with a 2.5 inch diameter configuration.
• Handles 100 to 900 kPa pressure ratings for versatile installation options.
• Specified for operation in liquids with temperatures reaching up to 50 degrees Celsius.
