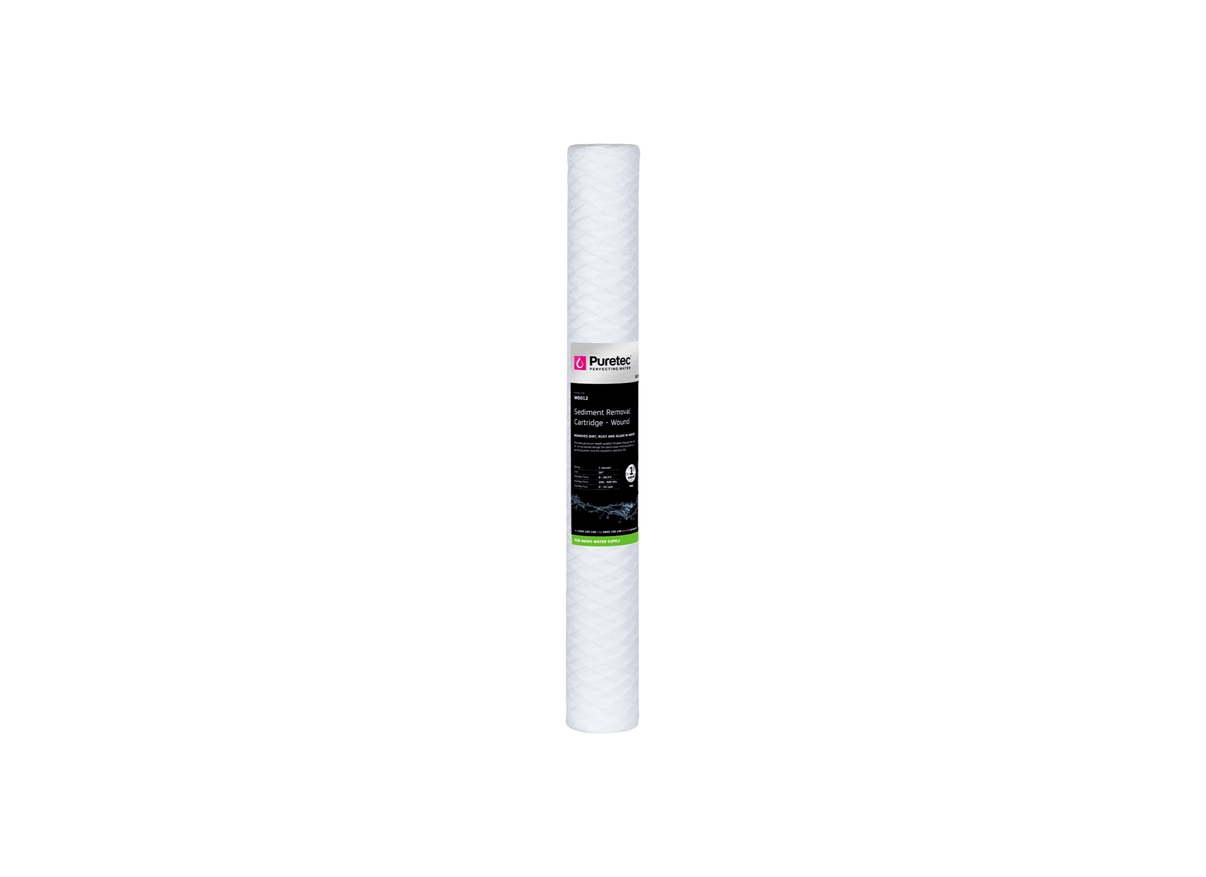

Puretec WD012 Wound Sediment 1 Micron 2.5" x 20" Replacement Cartridge

Fine particulate management for high-demand systems is facilitated by the WD012 wound sediment cartridge, which integrates into 20 inch housings. It is suitable for bore water, mains water supply, and various industrial fluids where fine clarity is required. This 1 micron model functions as a primary clarification stage.

Specified for a nominal flow capacity of 52 L/Min, the cartridge operates across a pressure range of 100 to 900 kPa. Depth filtration is achieved through precisely wound construction, providing a complex graded matrix for contaminant contact. This architecture facilitates the reduction of rust, scale, silt, and sand particles throughout the media thickness.

Constructed with 2.5 inch diameter and 20 inch length dimensions, the unit is specified for operation in liquid environments up to 50 degrees Celsius. The wound pattern provides high dirt-holding capacity by utilizing the expanded internal volume of the 20 inch format.

Features

• Rated for a 1 micron nominal level for fine particulate removal.
• Precisely wound construction achieves depth filtration throughout the media.
• Achieves high dirt-holding capacity through an expanded 20 inch wound matrix.
• Features standard 2.5 x 20 inch dimensions for compatibility with common housings.
• Reduces sand, silt, rust, and scale from various fluid handling applications.
• Handles 100 to 900 kPa pressure ratings for versatile installation options.
