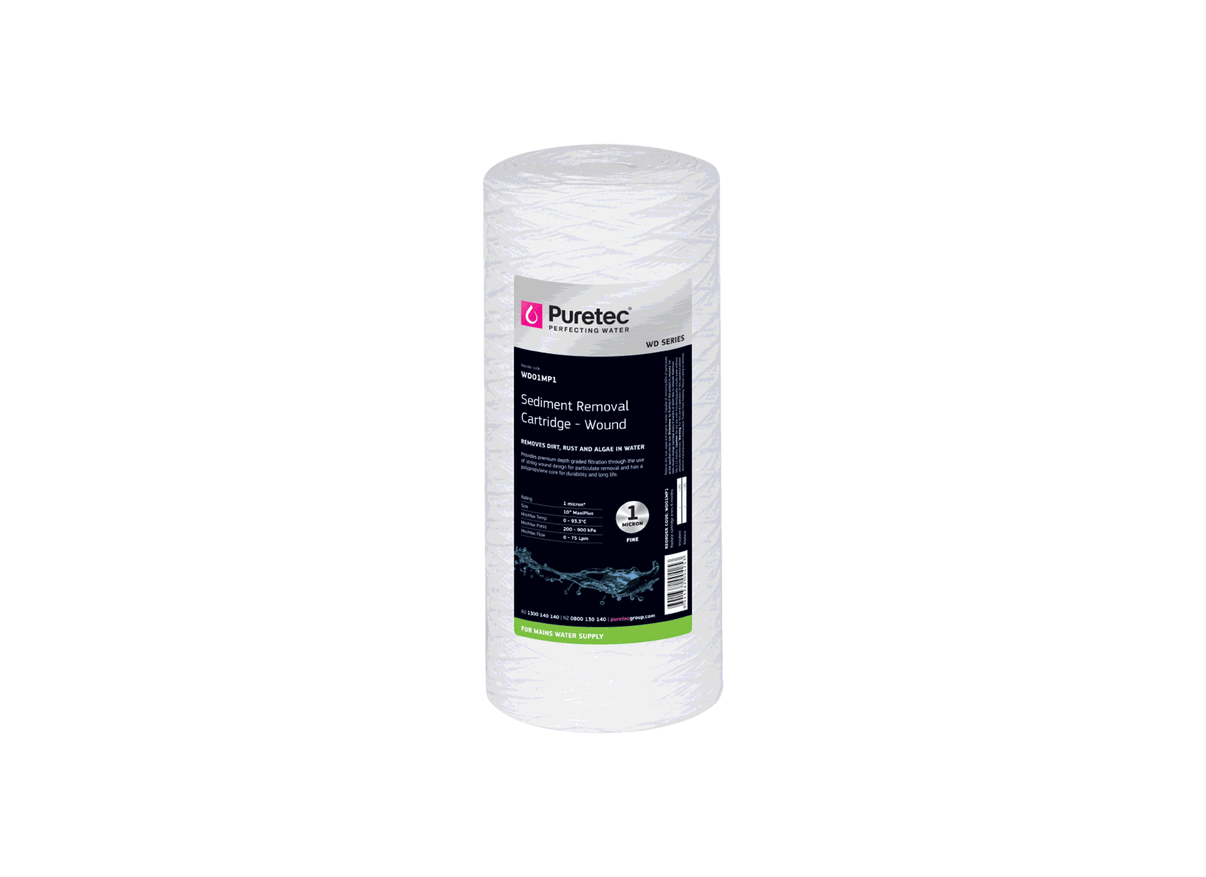

Puretec WD01MP1 MaxiPlus Wound Sediment 1 Micron 4.5" x 10" Replacement Cartridge

Large-diameter fine filtration is established with the WD01MP1 wound sediment cartridge, which fits standard 10 inch MaxiPlus housings. It is suitable for applications involving high-flow mains water, bore water, and various industrial fluids where fine clarity is required at increased velocities. This 1 micron component facilitates the reduction of fine particles.

Nominal flow capacity is rated at 75 L/Min, with performance maintained across a 100 to 900 kPa pressure rating. Depth filtration is achieved through precisely wound construction, providing a significantly expanded surface area through the MaxiPlus architecture. This design facilitates the reduction of rust, silt, sand, and scale particles throughout the fiber thickness.

Measuring 4.5 inches in diameter and 10 inches in length, the unit is specified for operation in liquids with temperatures up to 50 degrees Celsius. The result is high dirt-holding capacity by distributing the load across a larger internal volume.

Features

• Rated for a 1 micron nominal level for fine particulate management.
• Precisely wound construction facilitates depth filtration through the media.
• Large 4.5 inch diameter fits standard 10 inch MaxiPlus large-capacity housings.
• Achieves high dirt-holding capacity via an expanded surface area for loading.
• Reduces sand, silt, rust, and scale from various water supply sources.
• Handles 100 to 900 kPa pressure ratings for stable facility integration.
