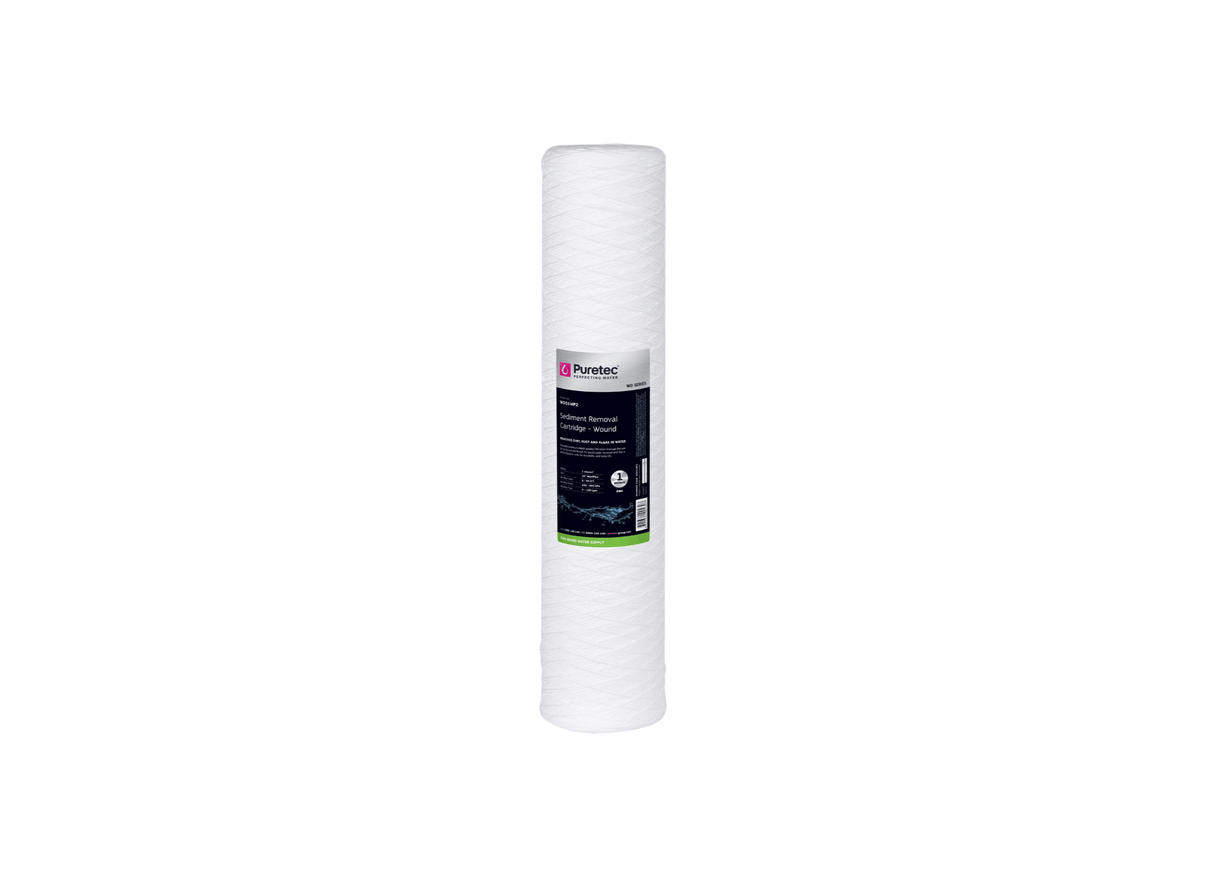

Puretec WD01MP2 MaxiPlus Wound Sediment 1 Micron 4.5" x 20" Replacement Cartridge

The WD01MP2 wound sediment cartridge provides economical fine filtration for high-volume 20 inch MaxiPlus systems. It is suitable for treating mains water, bore water, and various industrial fluids where fine clarity is mandatory at significant flow rates. This 1 micron model acts as a primary fine particulate barrier.

Achieving an exceptional nominal flow capacity of 150 L/min, the unit handles operation within a 100 to 900 kPa pressure rating. Depth filtration is achieved through precisely wound construction, creating a complex matrix for graded particulate capture across the 4.5 inch diameter. This architecture facilitates the reduction of sand, silt, rust, and scale particles through the fiber layers.

Constructed with 4.5 inch diameter and 20 inch length dimensions, the unit is specified for liquid temperatures reaching 50 degrees Celsius. The wound pattern results in high dirt-holding capacity by maximizing the internal volume for loading.

Features

• Rated for a 1 micron nominal level for fine particulate reduction at scale.
• Precisely wound construction facilitates depth filtration throughout the media.
• Large 4.5 inch diameter fits standard 20 inch MaxiPlus high-capacity housings.
• Provides high dirt-holding capacity for extended periods in high-flow systems.
• Reduces sand, silt, rust, and scale in various fluid handling applications.
