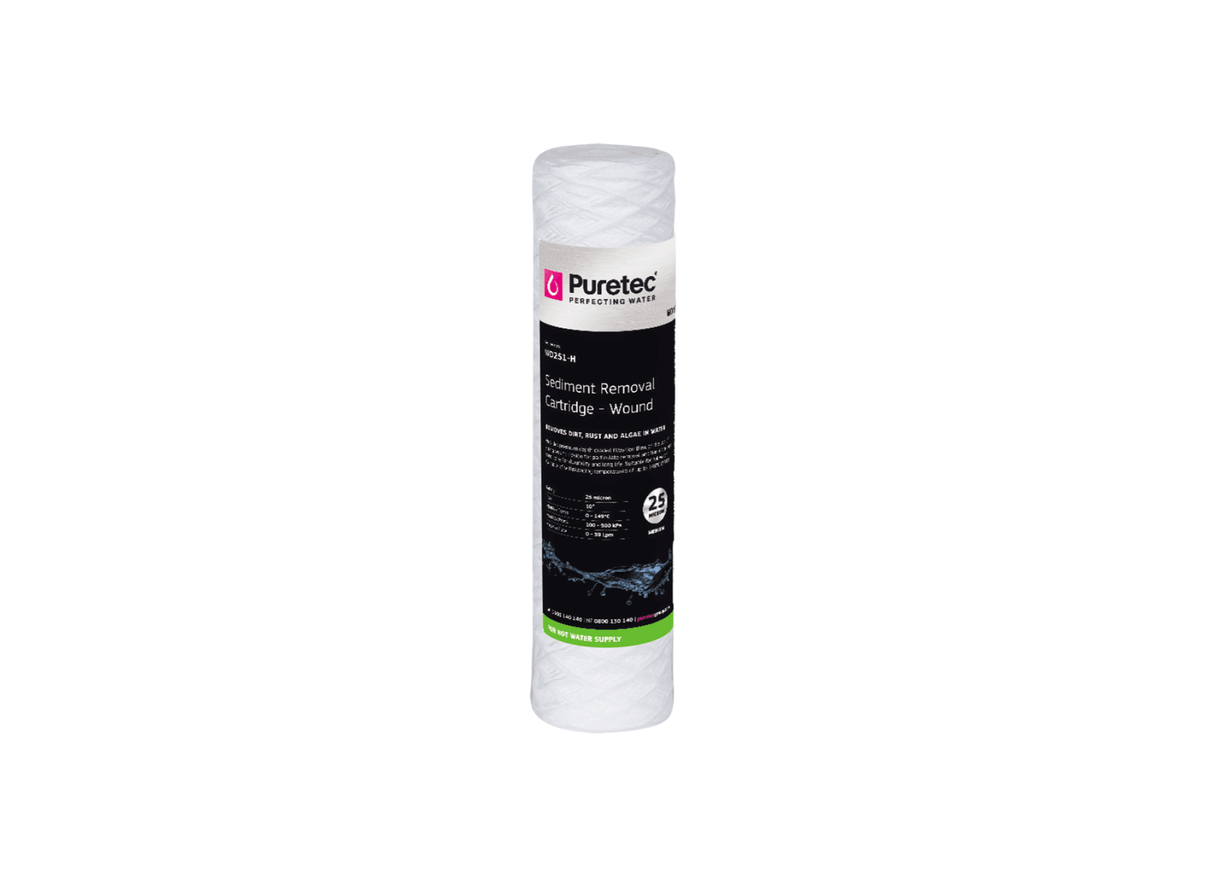

Puretec WD051-H Hot Water Wound Sediment 5 Micron 2.5" x 10" Replacement Cartridge

Sediment filtration for hot water systems is facilitated by the WD051-H specialty wound sediment cartridge, which integrates into 10 inch housing configurations. It is suitable for high-temperature industrial fluids where visible particulate removal is necessary for system clarity. This component operates as a primary clarification barrier for water above 74 degrees Celsius.

Nominal flow capacity is rated at 27 L/min, with performance maintained with minimal pressure drop. The 5 micron rating targets visible suspended solids such as rust, scale, sand, and silt in high-thermal operational setups. True depth filtration is achieved by a precisely wound design using cotton material for mechanical stability in hot environments.

Measuring standard 2.5 inches in diameter and 10 inches in length, the cartridge includes a 304 stainless steel core for thermal resistance. It is capable of withstanding extreme temperatures reaching up to 149 degrees Celsius for industrial use. This architecture enables the reduction of physical debris throughout the media thickness.

Features

• Manufactured from cotton material for operation in temperatures up to 149 Celsius.
• Includes a 304 stainless steel core for thermal resistance and mechanical support.
• Rated for a 5 micron nominal level for visible sediment and rust removal.
• String-wound design achieves true depth filtration across the cotton matrix.
• Operates with minimal pressure drop to maintain system hydraulic throughput.
• Features standard 2.5 x 10 inch dimensions for housing compatibility.
• Suitable for hot water models above 74 degrees Celsius and diverse fluids.
• Provides minimal fiber migration for clarified high-temperature output.
