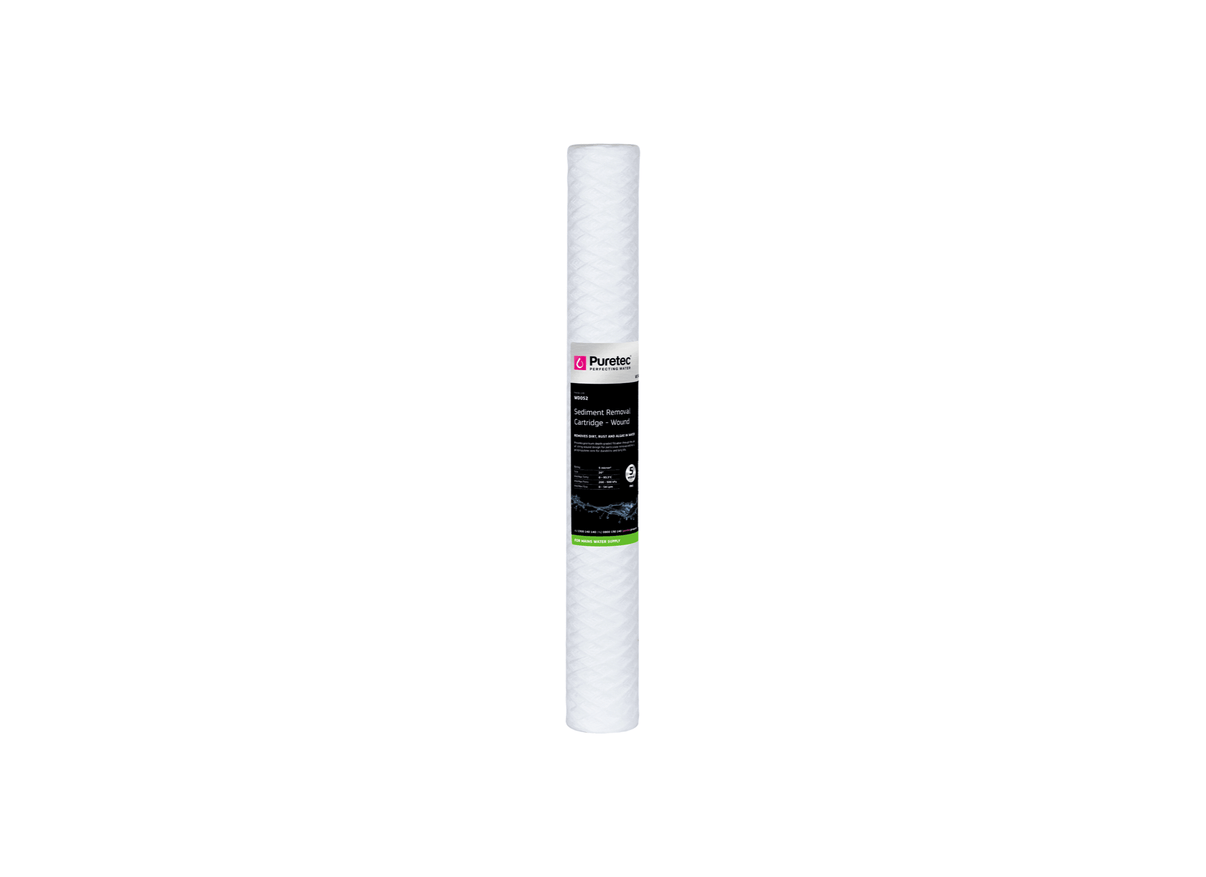

Puretec WD052 Wound Sediment 5 Micron 2.5" x 20" Replacement Cartridge

Economical sediment reduction for 20 inch housing systems is provided by the WD052 wound sediment cartridge, used for treating high-volume mains and bore water. It is suitable for managing suspended physical contaminants in various industrial fluids. This 5 micron model functions as a primary barrier to remove visible debris.

Achieving a nominal flow capacity of 54 L/Min, the unit handles operation within a 100 to 900 kPa pressure rating. Precisely wound construction enables depth filtration, providing an expanded network of fiber paths for particulate retention. This design facilitates the reduction of sand, silt, rust, and scale particles across a graded matrix.

Measuring standard 2.5 inches in diameter and 20 inches in length, the unit is specified for liquid temperatures up to 50 degrees Celsius. The result is high dirt-holding capacity by distributing the load across the larger 20 inch media surface.

Features

• Features a 5 micron nominal rating for effective visible sediment reduction.
• Precisely wound construction achieves depth filtration for graded particle capture.
• Provides high dirt-holding capacity for extended high-flow service intervals.
• Suitable for mains water supply and diverse industrial fluid applications.
• Measures 2.5 inches in diameter and 20 inches in length for standard fitment.
• Handles 100 to 900 kPa pressure ratings for stable system performance.
