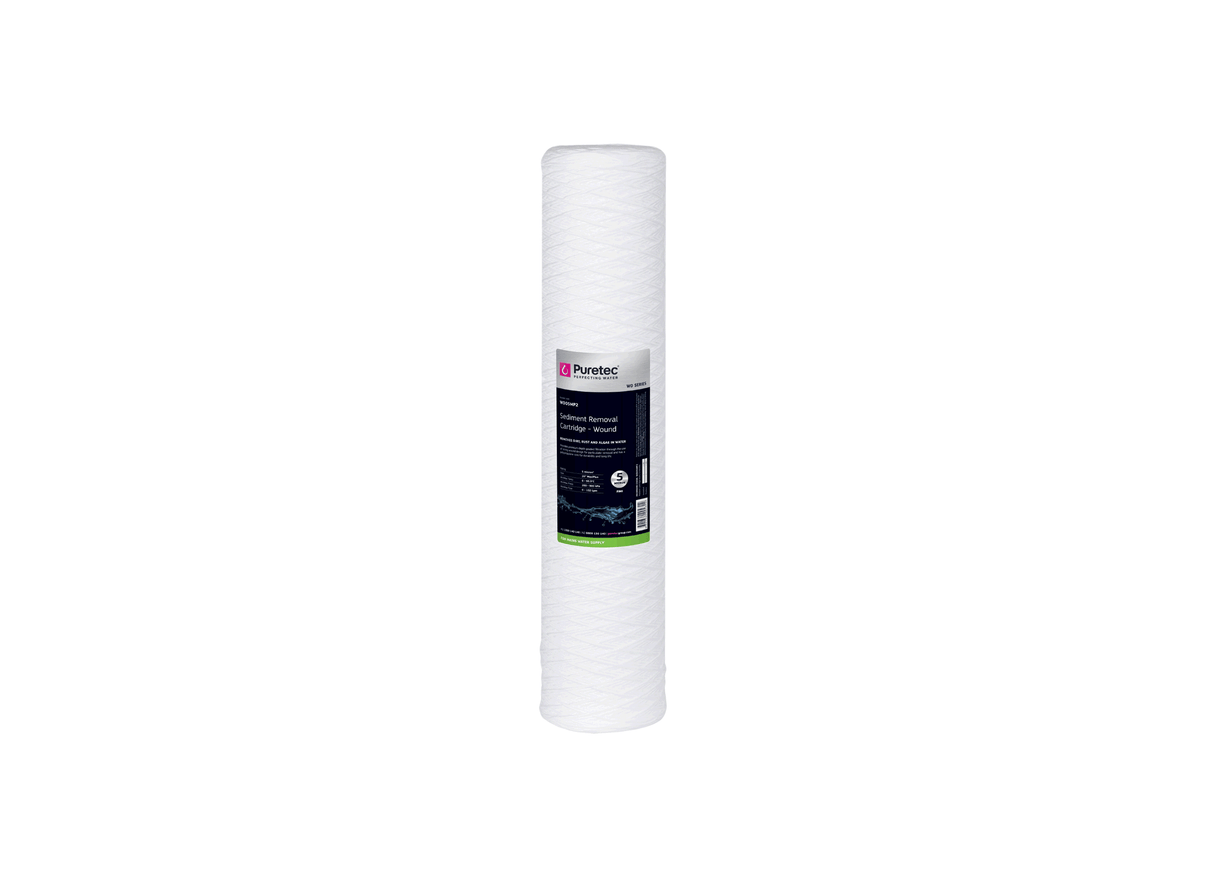

Puretec WD05MP2 MaxiPlus Wound Sediment 5 Micron 4.5" x 20" Replacement Cartridge

High-volume sediment reduction is provided by the WD05MP2 wound sediment cartridge, designed for integration into 20 inch MaxiPlus housings. It is suitable for managing suspended physical contaminants in mains water, bore water, and industrial fluids at high flow velocities. This 5 micron component functions as a primary clarification stage.

Rated for a significant nominal flow capacity of 152 L/min, the unit maintains performance within a 100 to 900 kPa pressure range. Precisely wound construction enables depth filtration, creating a vast graded matrix for particulate contact across the expanded surface area. This architecture facilitates the reduction of sand, silt, rust, and scale particles throughout the media thickness.

Measuring standard 4.5 inches in diameter and 20 inches in length, the cartridge is specified for operation in liquid environments up to 50 degrees Celsius. The result is high dirt-holding capacity by distributing the load across the 20 inch MaxiPlus internal volume.

Features

• Features a 5 micron nominal rating for effective visible sediment reduction at scale.
• Precisely wound construction achieves depth filtration across the 20 inch media.
• Large 4.5 inch diameter fits standard 20 inch MaxiPlus filter sumps.
• Achieves high dirt-holding capacity via a specialized graded density pattern.
• Suitable for mains water supply and diverse industrial fluid applications.
• Reduces sand, silt, rust, and scale in various high-flow supply systems.
• Handles 100 to 900 kPa pressure ratings for stable facility performance.
