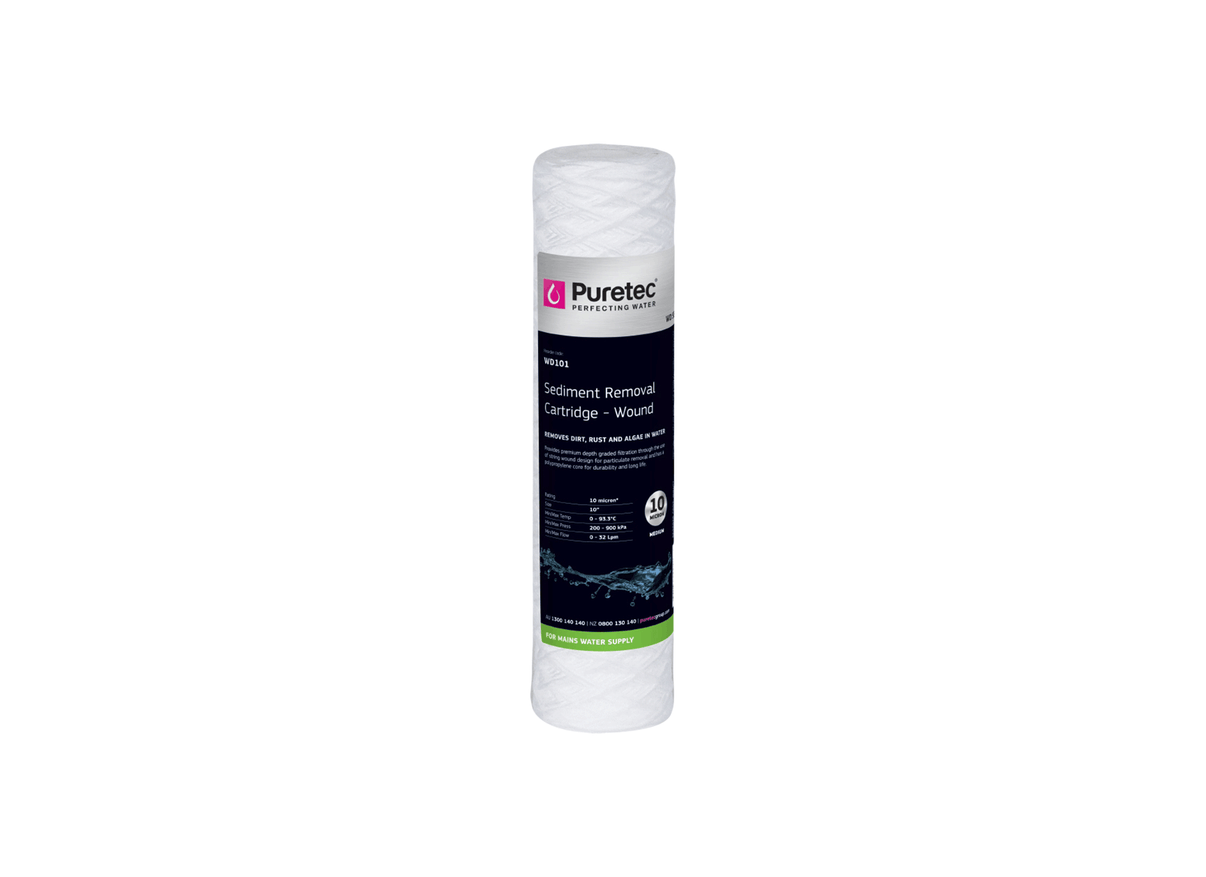

Puretec WD101 Wound Sediment 10 Micron 2.5" x 10" Replacement Cartridge

Economical coarse filtration is provided by the WD101 wound sediment cartridge, designed for fitment into 10 inch housings. It is suitable for bore water, mains supplies, and many industrial fluids where moderate sediment management is required. This cartridge acts as a sediment barrier with a 10 micron rating.

Specified for a nominal flow capacity of 32 L/Min, the unit maintains operation across a pressure range of 100 to 900 kPa. Depth filtration is achieved through precisely wound construction, which provides an expanded surface area for contaminant capture. This design facilitates the reduction of rust, sand, scale, and silt particles.

Measuring standard 2.5 inches in diameter and 10 inches in length, the unit is specified for liquid temperatures up to 50 degrees Celsius. The results include high dirt-holding capacity by trapping debris throughout the depth of the media layers.

Features

• Rated for a 10 micron nominal level for general purpose sediment reduction.
• Precisely wound construction achieves depth filtration for effective particle capture.
• Achieves high dirt-holding capacity via an expanded surface area for loading.
• Features standard 2.5 x 10 inch dimensions for compatibility with common housings.
• Reduces sand, silt, rust, and scale in various fluid handling applications.
• Handles 100 to 900 kPa pressure ratings for system stability.
