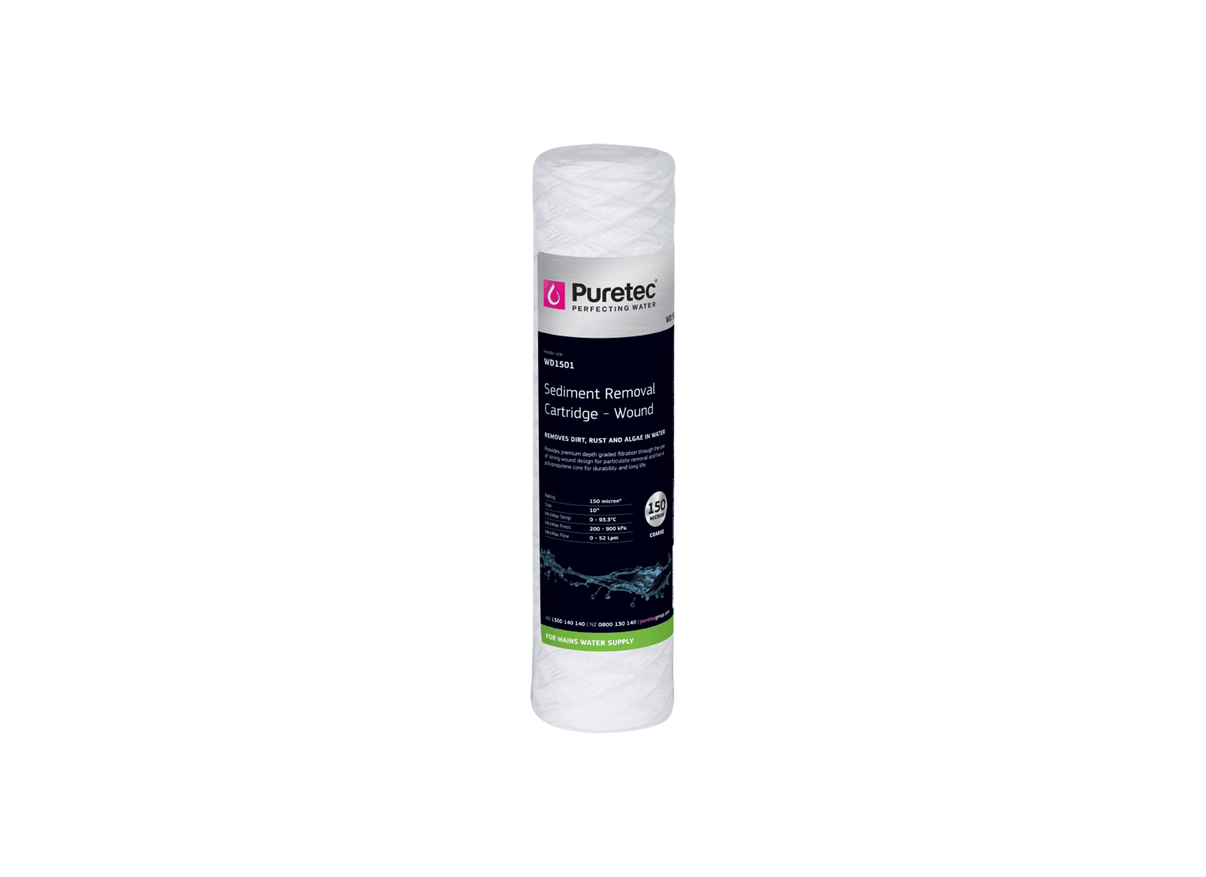

Puretec WD1501 Wound Sediment 150 Micron 2.5" x 10" Replacement Cartridge

Extra-coarse filtration for high-volume requirements is provided by the WD1501 wound sediment cartridge, designed for integration into 10 inch housings. It is suitable for applications involving bore water and industrial fluids where high concentrations of large suspended solids are present. This 150 micron model operates as a primary clarification stage.

Achieving a significant nominal flow capacity of 52 L/Min, the unit is rated for operation between 100 and 900 kPa. Depth filtration is achieved through precisely wound construction, providing an expanded matrix for contaminant retention. This architecture reduces sand, silt, rust, and scale particles throughout the depth of the media.

Constructed with 2.5 inch diameter and 10 inch length dimensions, the cartridge is specified for liquid temperatures reaching up to 50 degrees Celsius. The result is high dirt-holding capacity by maximizing the available volume for coarse sediment loading.

Features

• Rated for a 150 micron nominal level for extra-coarse particle management.
• Precisely wound construction enables depth filtration throughout the fiber media.
• Achieves high dirt-holding capacity via a specialized graded wound pattern.
• Features standard 2.5 x 10 inch dimensions for compatibility with most housings.
• Reduces sand, silt, rust, and scale from various water supply sources.
• Handles 100 to 900 kPa pressure ratings for reliable facility operation.
