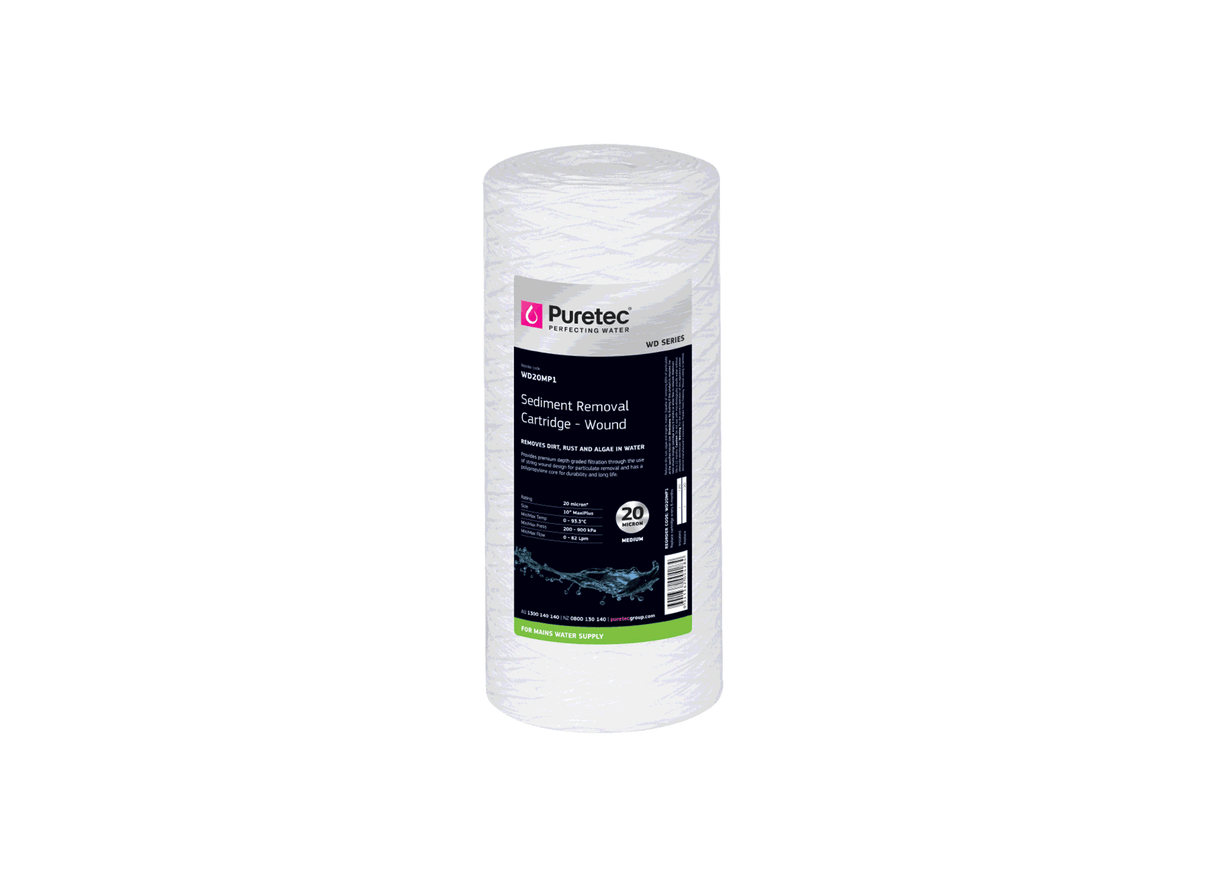

Puretec WD20MP1 MaxiPlus Wound Sediment 20 Micron 4.5" x 10" Replacement Cartridge

High-flow coarse sediment reduction is established with the WD20MP1 wound sediment cartridge, designed for fitment into 10 inch MaxiPlus housings. It is suitable for applications involving heavy-sediment mains and bore water where high throughput is required. This 20 micron model functions as a primary clarification stage.

Specified for an exceptional nominal flow capacity of 82 L/Min, the unit operates within a 100 to 900 kPa pressure rating. Depth filtration is achieved through precisely wound construction, which provides a graded matrix for the capture of coarse debris. This architecture facilitates the reduction of rust, sand, silt, and scale particles within the 4.5 inch diameter media.

Constructed with 4.5 inch diameter and 10 inch length dimensions, the unit is specified for liquid temperatures reaching up to 50 degrees Celsius. The wound pattern results in high dirt-holding capacity by distributing the sediment load across a larger contact area.

Features

• Features a 20 micron nominal rating for coarse sediment reduction at scale.
• Precisely wound construction facilitates depth filtration throughout the media.
• Fits standard 10 inch MaxiPlus housings with an expanded 4.5 inch diameter.
• Provides high dirt-holding capacity for extended service in high-load systems.
• Reduces sand, silt, rust, and scale in bore water and mains supplies.
