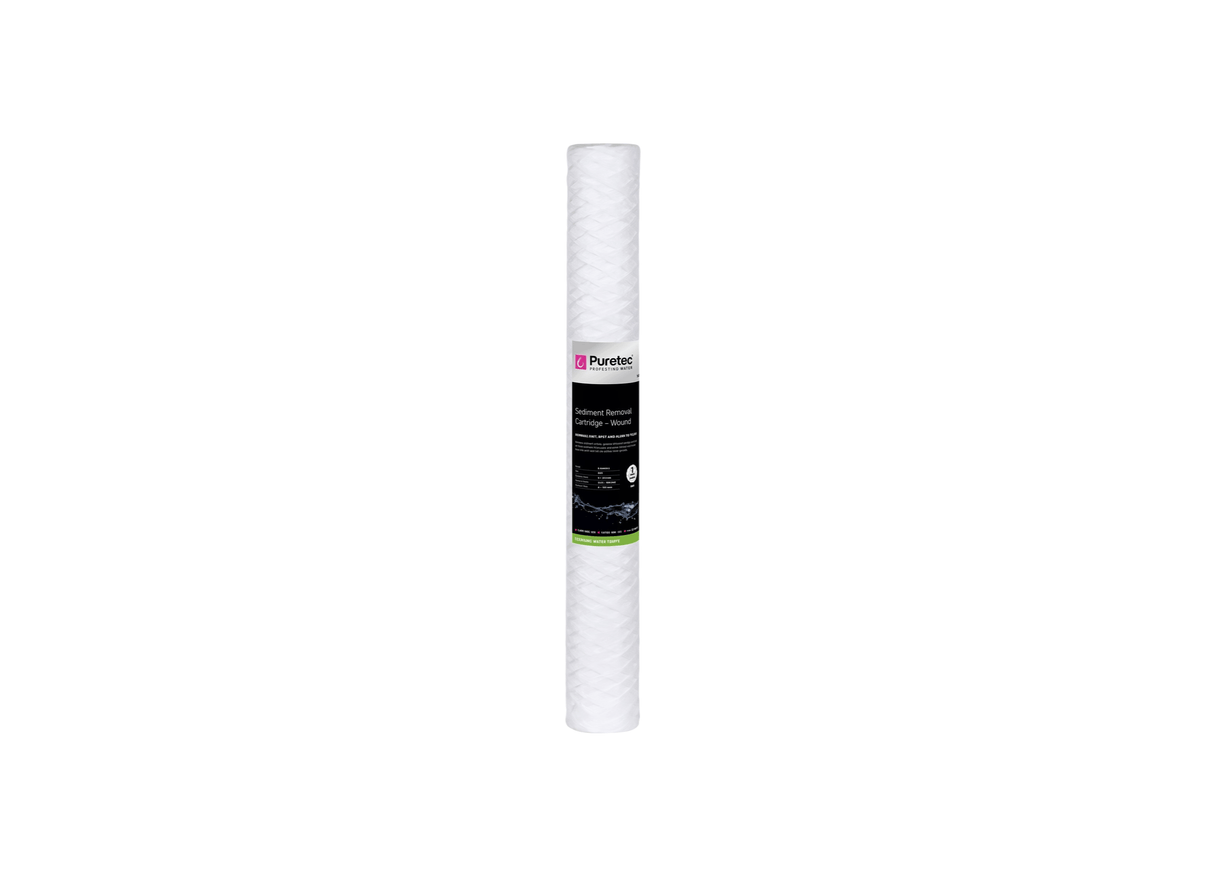

Puretec WD251-H Hot Water Wound Sediment 25 Micron 2.5" x 10" Replacement Cartridge

Coarse particulate management in high-temperature environments is provided by the WD251-H specialty wound sediment cartridge, designed for fitment into 10 inch housings. It is suitable for hot water models and industrial fluids where large suspended solids must be removed at high temperatures. This specialty component acts as an initial clarification barrier for water above 74 degrees Celsius.

Rated for a significant nominal flow capacity of 39 L/min, the unit maintains performance with minimal pressure drop. The 25 micron rating targets visible sediment and scale while facilitating high fluid throughput in hot water lines. True depth filtration is achieved through a string-wound design that uses cotton material to withstand thermal loading.

Measuring standard 2.5 inches in diameter and 10 inches in length, the cartridge features a 304 stainless steel core for structural integrity. It is capable of withstanding extreme temperatures reaching up to 149 degrees Celsius for specialty use. This architecture facilitates the reduction of rust, sand, silt, and scale particles by trapping them throughout the fiber thickness.

Features

• Manufactured from cotton material to withstand temperatures up to 149 degrees Celsius.
• Includes a 304 stainless steel core for structural support and thermal resistance.
• Rated for a 25 micron nominal level for coarse suspended particulate removal.
• String-wound design achieves true depth filtration across the media matrix.
• Operates with minimal pressure drop to maintain system hydraulic throughput.
• Features standard 2.5 x 10 inch dimensions for housing fitment.
• Suitable for hot water models above 74 degrees Celsius and diverse fluids.
• Provides minimal fiber migration for clarified high-temperature output.
