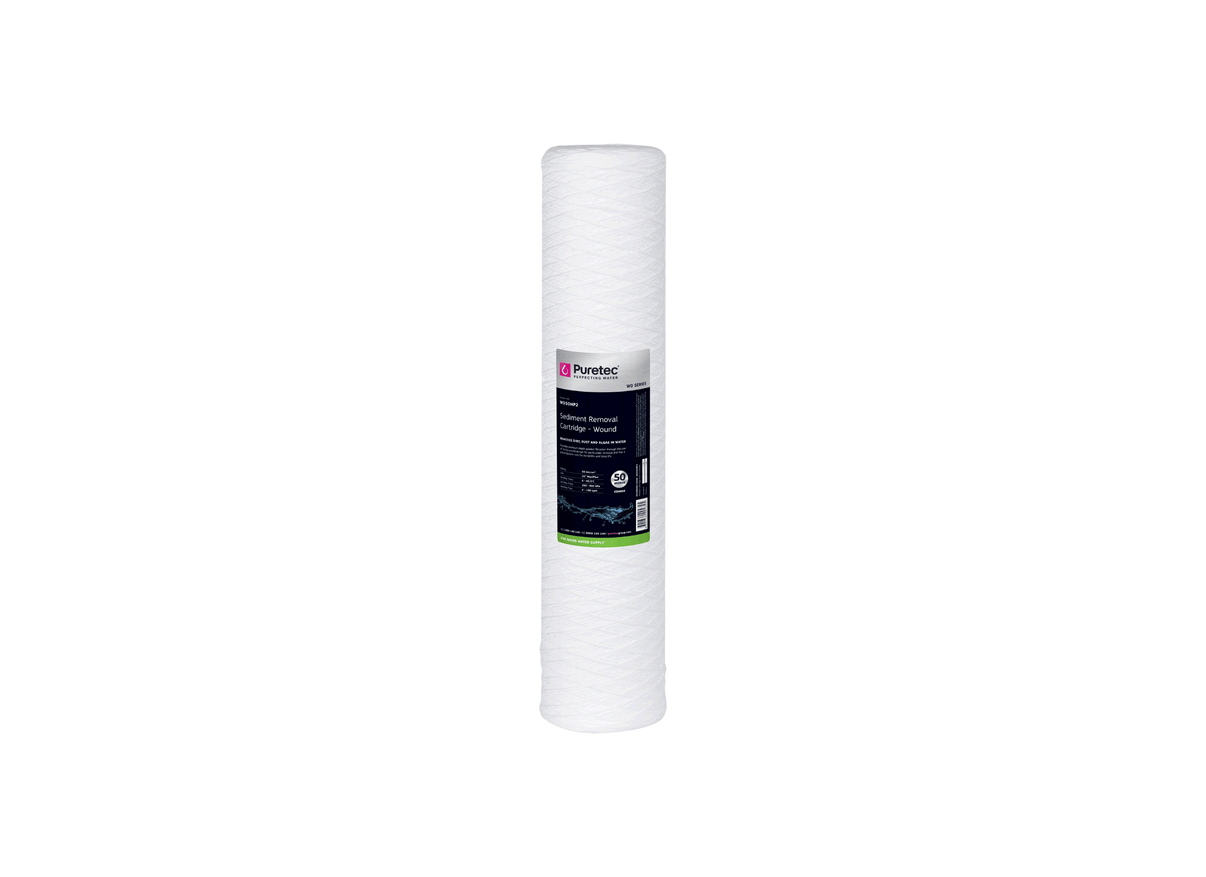

Puretec WD50MP2 MaxiPlus Wound Sediment 50 Micron 4.5" x 20" Replacement Cartridge

High-flow coarse particulate management is established with the WD50MP2 wound sediment cartridge, designed for integration into 20 inch MaxiPlus housings. It is suitable for mains water, bore water, and diverse industrial fluids requiring the removal of large physical impurities at maximum volume. This 50 micron model operates as a primary clarification barrier.

Rated for an exceptional nominal flow capacity of 180 L/min, the unit handles system pressures between 100 and 900 kPa. Depth filtration is achieved through precisely wound construction, providing a vast matrix for the capture of coarse contaminants over the 20 inch architecture. This design facilitates the reduction of sand, silt, rust, and scale particles throughout the 4.5 inch media thickness.

Constructed with 4.5 inch diameter and 20 inch length dimensions, the cartridge is specified for liquid temperatures reaching 50 degrees Celsius. The result is high dirt-holding capacity by utilizing the expanded internal volume of the MaxiPlus format.

Features

• Rated for a 50 micron nominal level for coarse high-flow management.
• Precisely wound construction facilitates depth filtration throughout the media.
• Large 4.5 inch diameter fits standard 20 inch MaxiPlus large-capacity housings.
• Achieves high dirt-holding capacity through a specialized graded wound pattern.
• Reduces sand, silt, rust, and scale from various water supply sources.
• Handles 100 to 900 kPa pressure ratings for stable facility performance.
