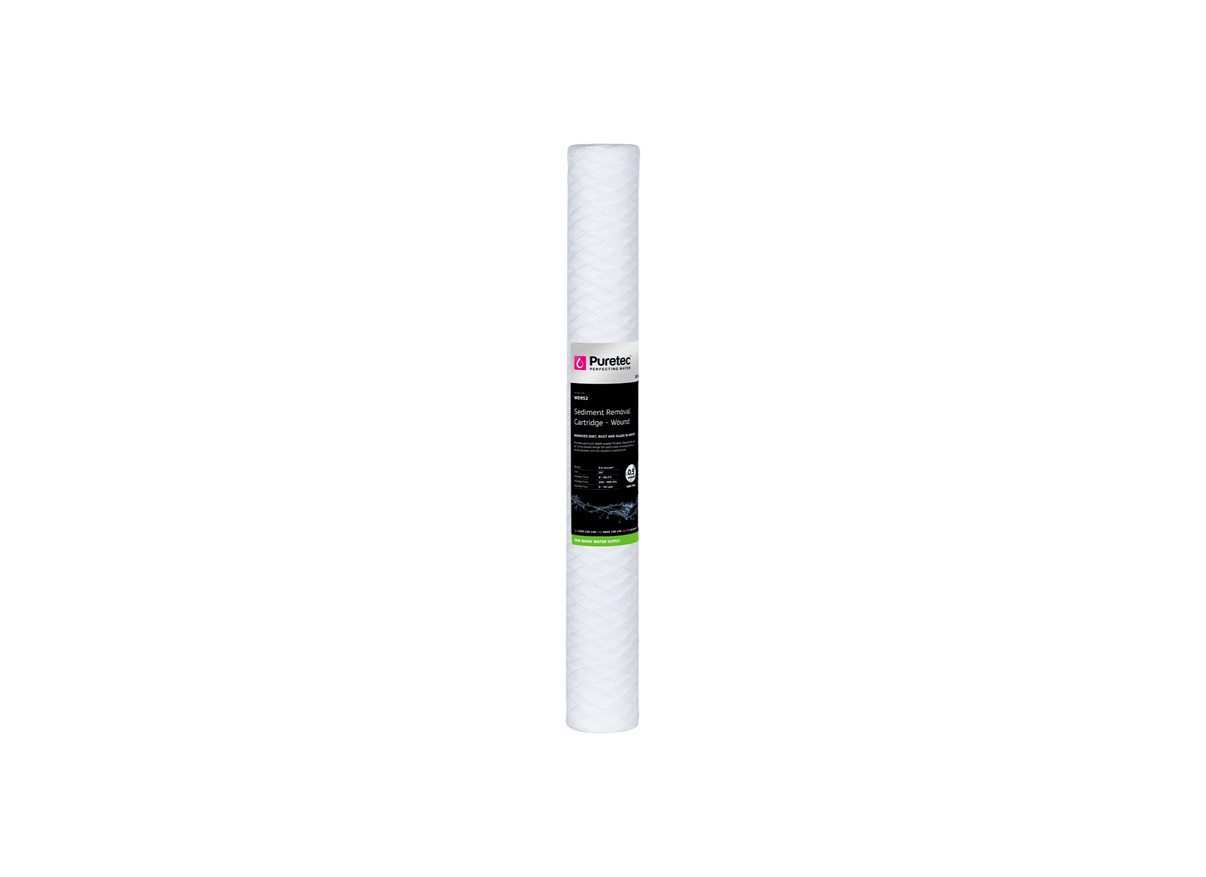

Puretec WD952 Wound Sediment 0.5 Micron 2.5" x 20" Replacement Cartridge

High-capacity sub-micronic filtration is provided by the WD952 wound sediment cartridge, which utilizes a 20 inch length to manage fine contaminants at significant flow rates. It is suitable for mains water, bore water, and diverse industrial fluids requiring microscopic clarification. This unit fits standard 20 inch housings and is identified for cyst reduction.

Rated for a nominal flow capacity of 50 L/min, the unit maintains performance within a 100 to 900 kPa pressure rating. Precisely wound construction facilitates depth filtration, creating an expanded surface area through the 20 inch architecture. This design enables the reduction of sand, silt, rust, and scale particles.

Measuring standard 2.5 inches in diameter and 20 inches in length, the cartridge is specified for liquid temperatures up to 50 degrees Celsius. The result is high dirt-holding capacity by spreading the contaminant load across a larger internal volume.

Features

• Features a 0.5 micron nominal rating to capture sub-micronic suspended solids.
• Identified for cyst reduction to improve the quality of high-volume supplies.
• Precisely wound construction enables depth filtration across the 20 inch media.
• Achieves high dirt-holding capacity through an expanded surface area for loading.
• Fits standard 20 inch housings with a 2.5 inch diameter configuration.
• Reduces sand, silt, rust, and scale in mains and bore water applications.
• Handles 100 to 900 kPa pressure ratings for stable system integration.
