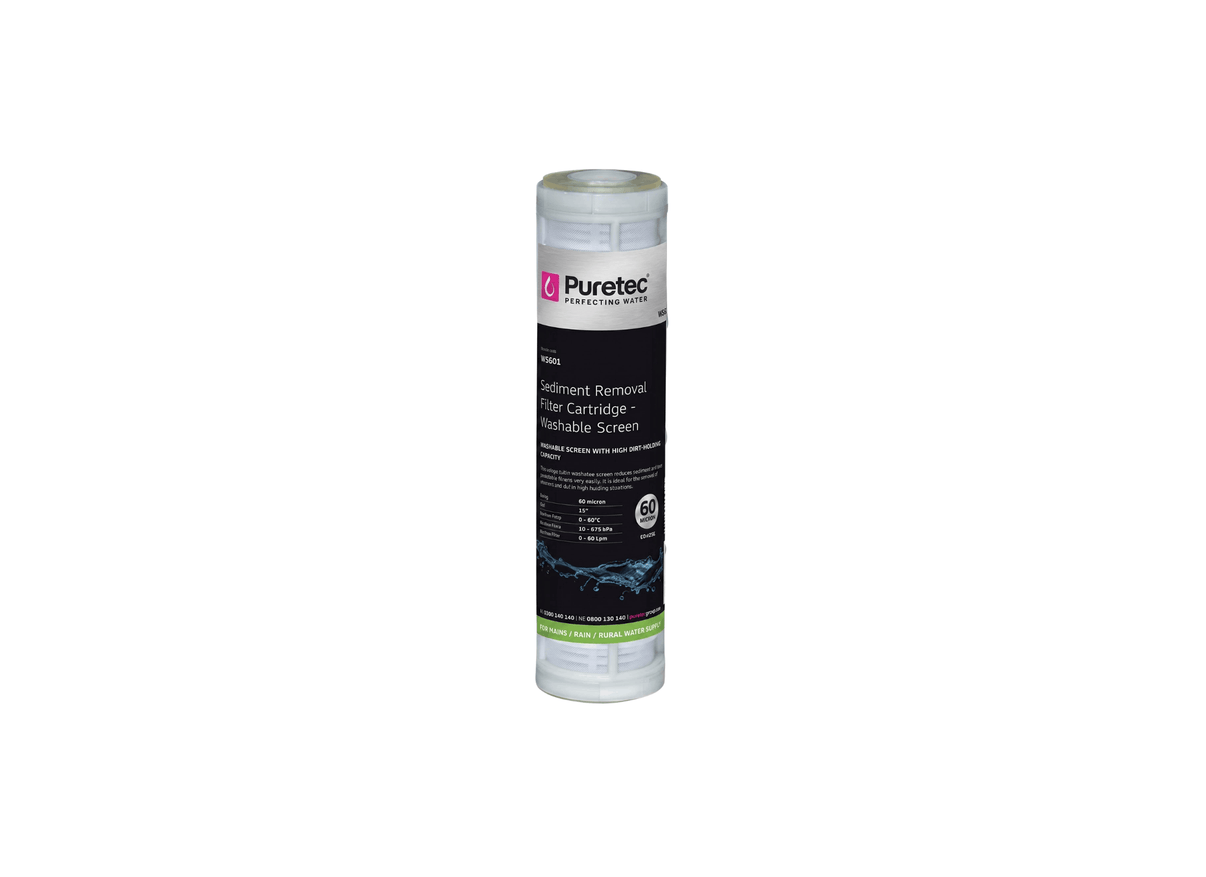

Puretec WS601 Washable Screen 60 Micron 2.5" x 10" Water Filter Cartridge

The standard Puretec WS601 washable screen cartridge operates as a high-flow physical pre-filter to trap coarse sediment, sand, and dirt. This inline model is designed for pump shielding, aquaculture, and first-stage filtration. It fits standard filter housings, providing an initial physical barrier on cold-water supply lines.

This washable screen cartridge is manufactured with a polypropylene core cage and a Polyethersulfone mesh screen. The external screen unscrews from the central core cage for physical washing and reuse. The unit weighs approximately 0.32 kg and is specified for temperatures from 0°C to 60°C.

The physical dimensions of this model are 2.5 inches in diameter by 10 inches in length. It has a nominal rating of 60 microns for physical particle straining. The cartridge achieves a maximum flow rate of 60 L/Min, operating with low clean pressure drop.

The cartridge design features a removable external screen, which unscrews from the central core cage to allow physical washing. This washable screen is specified for primary pre-filtration in high-debris agricultural and industrial setups. It operates on cold-water supply loops with low physical flow resistance. This model is designed for standard filtration housings without modification. The washable mesh is designed to handle multiple high-pressure wash cycles.

• Washable screen cartridge incorporates a polypropylene body and Polyethersulfone mesh screen.
• External mesh screen can be removed by unscrewing the end cap from the center core cage.
• Long-life design enables the filter screen to be physically washed and reused multiple times.
• Specifically designed for standard water filter housings compatible with 2.5" x 10" replacement units.
• Nominal filtration rating specified at 60 Micron for coarse pre-filtration in high-debris lines.
• Operates at maximum flow capacity of 60 L/Min, providing physical straining of coarse solids.
• Withstands water temperatures up to 60°C (140°F), making the cartridge suitable for pump shielding.
