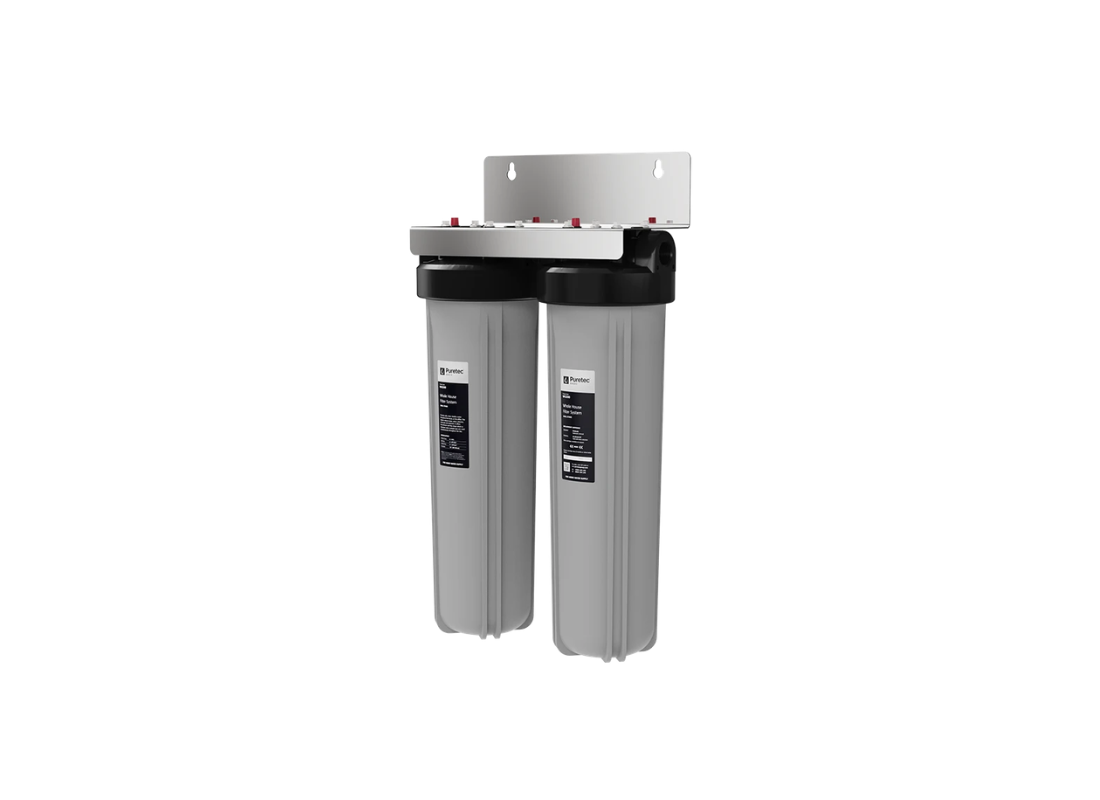

Puretec WU20-40M Dual 20" x 4.5" Basic Whole House Water Filtration System

The Puretec WU20-40M features high-flow 20-inch housings and is specified for the reduction of chemicals and sediment in residential mains water. This budget-focused dual-stage system installs on the building's main cold water inlet to improve quality throughout the whole house. It is suitable for town and mains supplies and provides filtered water to every facility outlet without the need for electrical power.

Built with heavy-duty housings measuring 390 mm wide and 730 mm high, the unit houses the high-capacity 20-inch filtration kit. Internal filtration integrates a 20-inch melt blown sediment cartridge (MB05LD2) and a 20-inch carbon block (EC10LD2) for tiered contaminant reduction. The system operates in liquid temperatures up to 52°C and has a total depth of 200 mm, requiring protection from freezing conditions.

Performance specifications include a high nominal flow rate of 60 L/Min through 40 mm (1.5 inch) BSP female plumbing connections. The assembly handles operational pressures ranging from 200 to 875 kPa and functions purely on mains line pressure. This dual-stage system features a 5-micron nominal rating for tiered reduction and requires an approved pressure limiting device if the supply exceeds 500 kPa.

Maintenance requirements involve cartridge replacement every 6 to 12 months based on building water demand and usage, with access provided by the dual housing design. The system provides a mechanism for reducing contaminants at the facility entry point to protect and prolong the life of appliances. It operates silently with no moving parts and is designed for low-maintenance whole house treatment. Mounting hardware is included with the kit.

Features

• Dual-stage 20-inch high-capacity filtration configuration provides a tiered treatment path for reducing sediment and chemicals for high-flow property owners.
• Heavy-duty housing construction provides whole building protection by filtering the mains supply at the building entry point for every facility outlet.
• 40 mm BSP inlet and outlet plumbing connections facilitate high-flow integration with large residential facility cold water supply inlet lines.
• No electrical power required for operation as the system functions purely on mains line pressure to distribute filtered water throughout the building property.
• 5-micron nominal rating provides a mechanism for tiered reduction of rust and sediment from the building supply to improve water quality at every tap.
• Protects building appliances and property plumbing from contaminant buildup by filtering out sediment and chemicals at the main entry point.
• Low-maintenance design features simple housing access to facilitate high-flow cartridge changes without the need for specialized knowledge.

Warranty: 1 Year Warranty is parts and labour, excludes cartridges.
