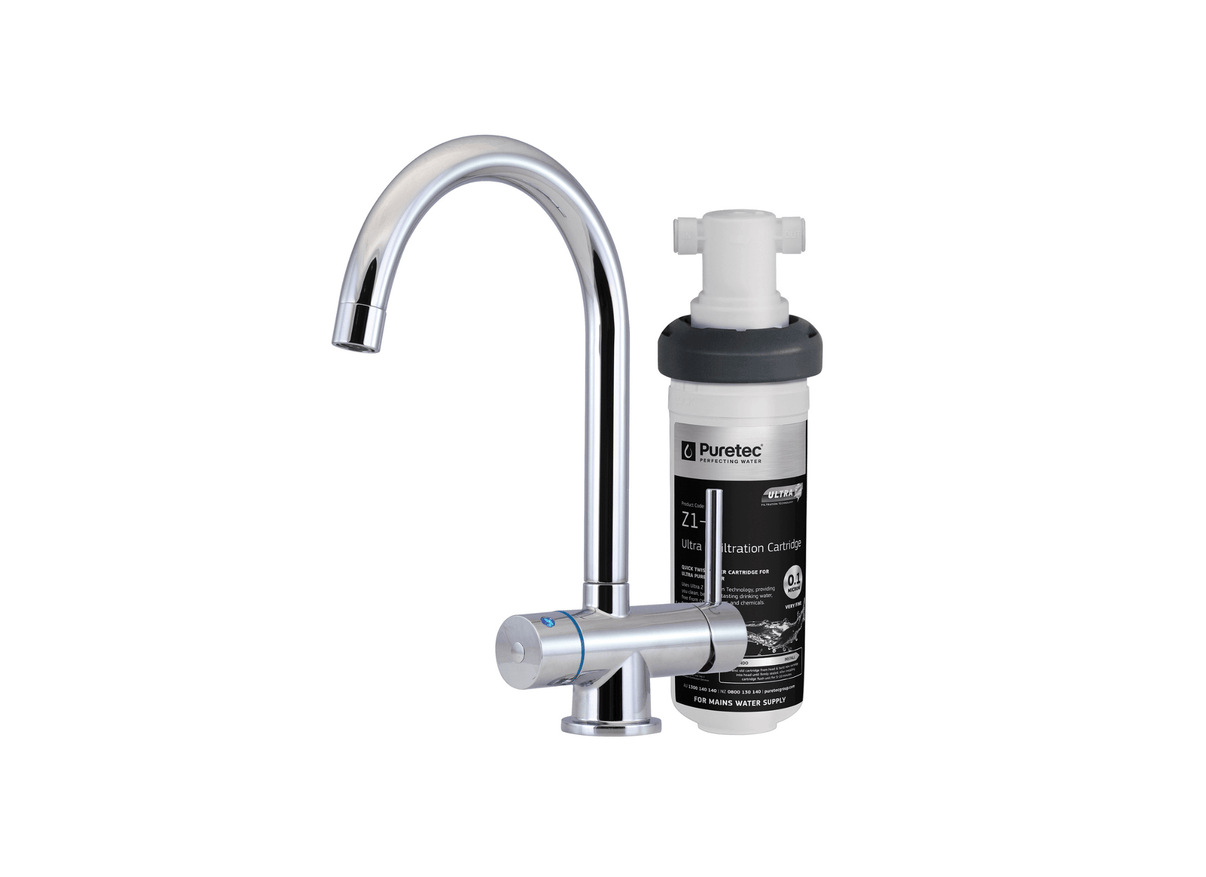

Puretec Z1-T4 0.1 Micron Water Filter with Chrome High-Loop Curved 3-Way Mixer Tap

Under-sink water filtration for mains and town supplies is provided by the Puretec Z1-T4 integrated system. This kit combines a three-way mixer tap with ultra-fine filtration to deliver hot, cold, and treated water from a single point without the need for extra tap holes. It is specified for residential applications where the removal of sediment and chemical taste is required for drinking water. The filter component is designed for flexible placement under the kitchen bench in multiple orientations.

Manufactured from metal components, the T4 mixer tap features a chrome finish and a high-loop curved spout for architectural applications. The system utilizes Ultra Z filtration media rated at 0.1 microns to remove rust, sand, silt, and microbiological elements like E. coli. The replacement cartridge used is the Z1-R model, featuring a quick-twist design for tool-free manual servicing. Tap installation is suitable for sink or bench surfaces requiring a standard 33 mm diameter hole.

The Z1 filter has a nominal flow rate of 5.5 Lpm, while the Tripla T4 mixer tap has a 5 Stars WELS rating and 5 Lpm tap flow rate. It operates within a pressure range of 200 to 500 kPa. It incorporates independent internal tubes for mains and filtered water to ensure that the treated supply remains isolated from the main services. The Z1-R filtration cartridge has a total capacity of 30,000 Litres before a change is required. Connection to the domestic water supply is made via a 1/2 inch BSP tee with 1/4 inch quick-connect tubing for the filter loop.

The filter system features an automatic shut-off valve in the head assembly to simplify cartridge changes and prevent water spillage. The tap uses ceramic disc internals for stable flow control across all temperature and filtration settings.

FEATURES

• Includes Z1-R replacement cartridge for fine 0.1 micron filtration of sediment and bacteria
• Features independent internal pathways for filtered and mains water to ensure discharge purity
• Includes chrome finish 3-way mixer tap with a high-loop architectural curved spout
• Provides tool-free quick-twist cartridge replacement via an integrated automatic shut-off valve
• Features 5 Stars WELS rating for water efficiency with a regulated tap flow rate of 5 Lpm
• Includes Smart Tee and all required plumbing fittings for standard cold water connection
• Supports flexible undersink mounting with a filter housing that installs horizontally or vertically

Warranty coverage is specified as 1 year parts and labour plus 5 years parts only for the Tripla tapware, and 1 year parts and labour plus 9 years parts only for the Z1 filter system, excluding cartridges.
