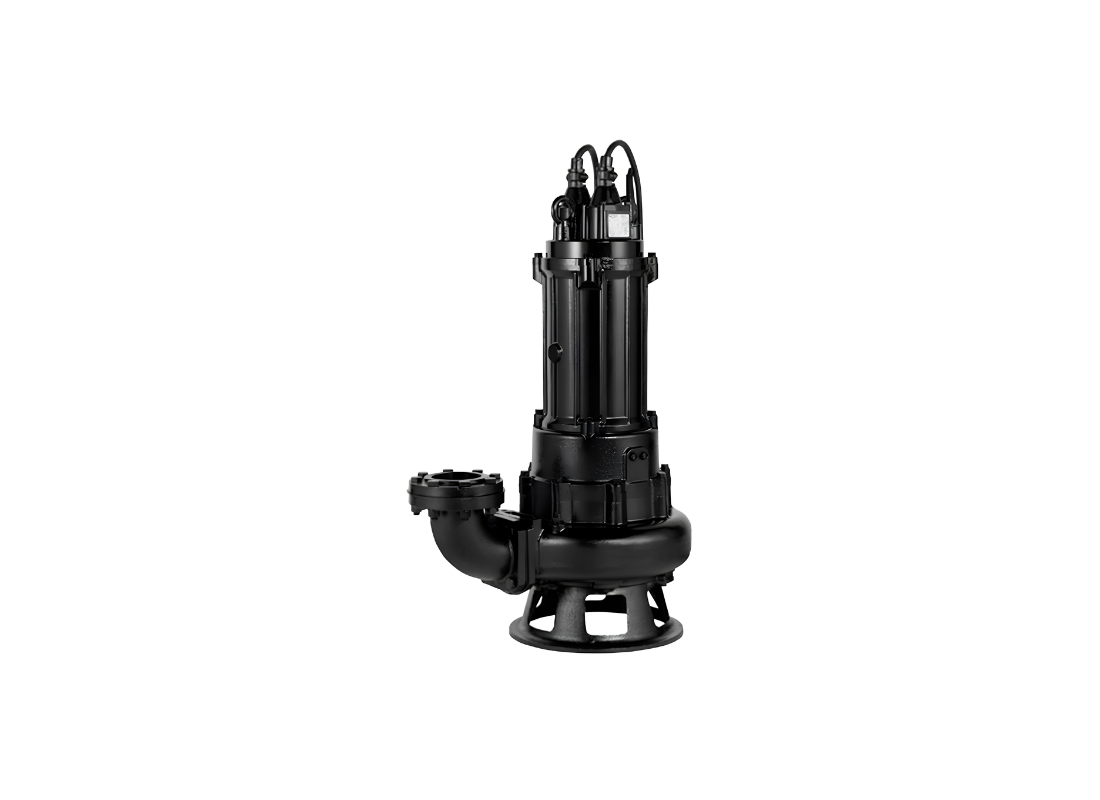

Tsurumi 100C43.7 Gray Cast Iron Oil Lifter Submersible Cutter Pump for Water Treatment with Semi-open Impeller

The Tsurumi 100C43.7 is a robust submersible cutter pump specifically designed to facilitate reliable sewage transfer in demanding municipal and commercial environments. Designed for continuous submerged operation, this unit effectively manages raw sewage and wastewater containing fibrous materials. Its durable construction ensures that the pump can handle the rigorous demands of high-volume fluid processing without succumbing to frequent clogs or mechanical failures.

Equipped with a 3.7 kW motor, this model operates on a 415 V three-phase electrical supply, drawing a rated current of 7.7 Amps. It achieves a maximum flow rate of 1700 L/Min and reaches a maximum head of 16 m. These hydraulic capabilities provide the necessary power to transport substantial volumes of wastewater across standard elevations found in typical municipal networks and building drainage systems.

A highly efficient cutting mechanism is central to the pump's performance. The semi-open single-channel impeller features a brazed sintered tungsten carbide alloy edge that actively shears fibrous debris against a serrated ductile cast iron suction cover. This dynamic shredding action ensures that solid matter is reduced effectively, allowing for uninterrupted discharge through the 100 mm outlet.

Constructed from gray cast iron with a ductile cast iron suction cover, the pump is built to withstand liquid temperatures up to 40°C. The internal motor components are shielded by dual inside silicon carbide mechanical seals housed in an oil chamber. A built-in oil lifter maintains continuous seal lubrication, while the anti-wicking cable entry provides a watertight barrier against moisture ingress.

FEATURES

• Tungsten carbide alloy edge on the semi-open impeller actively shreds fibrous sewage and wastewater solids.
• Serrated ductile cast iron suction cover enhances cutting efficiency and prevents internal blockages.
• Dual inside mechanical seals utilizing silicon carbide faces provide excellent protection for the motor shaft.
• Integrated oil lifter ensures consistent and reliable lubrication to the upper seal faces under all conditions.
• Anti-wicking cable entry mechanism effectively blocks water from entering the motor via capillary action.
• Heavy-duty gray cast iron casing provides a durable enclosure for continuous submerged operation.
• Direct on Line starting method allows for straightforward integration into existing electrical control panels.
